5.7L EFI (2 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Standard Cooling System (Bravo Engines)

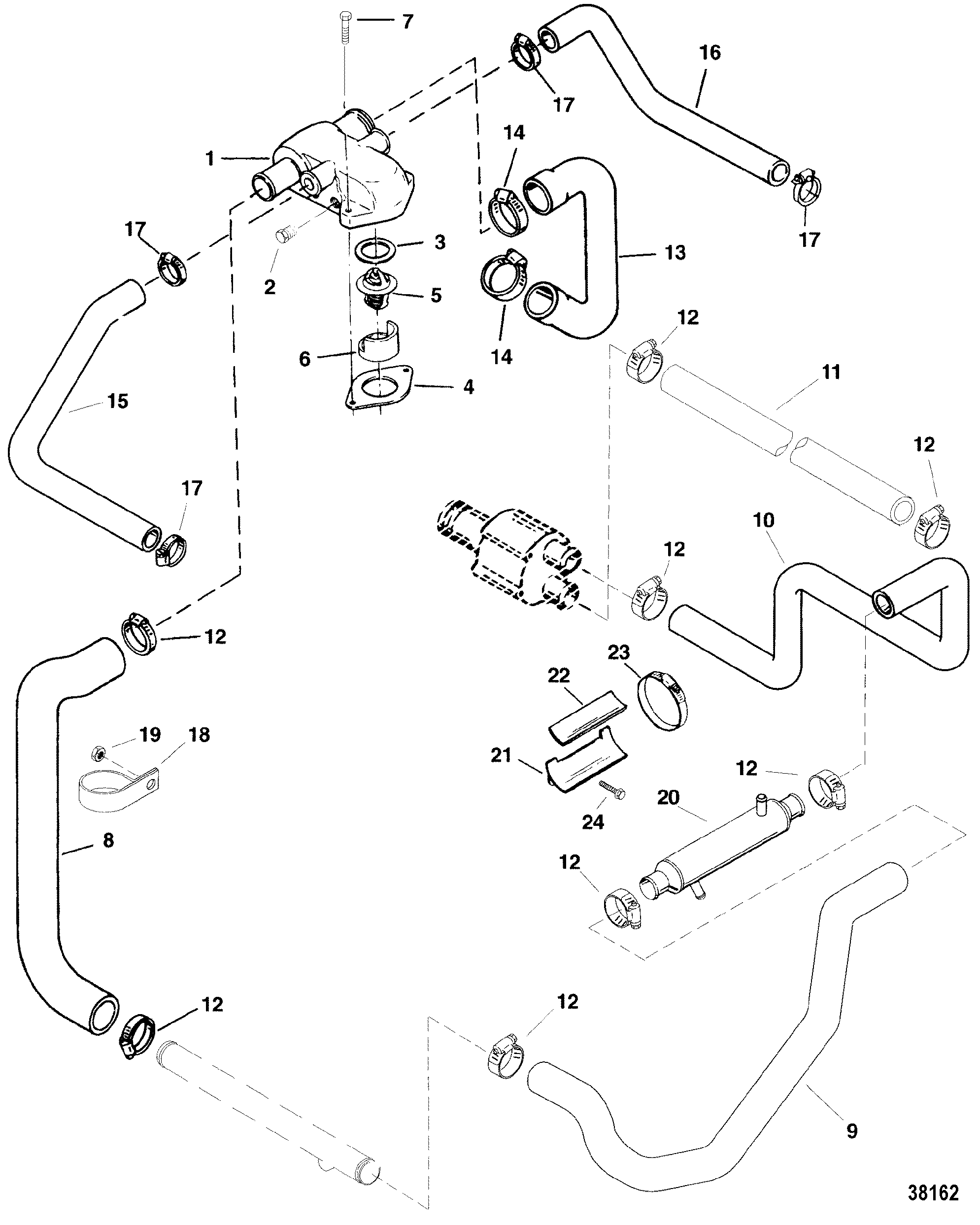

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold - Cast Iron Exhaust Elbow (Alpha)
- Exhaust Manifold - Stainless Steel Exh. Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 806235A1 | HOUSING ASSEMBLY, Thermostat | 1 | |||||||
| 2 | 22-32803 | 700-21894
|
PLUG, Pipe (.375-18) Brass | 2 | ||||||
| 3 | 27-806871 | 700-13101 |
GASKET | 1 | 2 | |||||
| 4 | 27-530451 | GASKET | 1 | 2 | ||||||
| 5 | 807252T2 | 676-9-43002 |
700-13101, | 700-13100 |
THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||
| 6 | 23-806922 | SLEEVE | 1 | |||||||
| 7 | 10-98794 | SCREW, (.375-16 x 1.00) | 2 | |||||||
| 8 | 32-808033 | 676-9-78129 |
700-28300 |
525-10-98794 |
HOSE, Molded | 1 | ||||
| 9 | 32-8600891 | HOSE, Molded | 1 | 32-860089 | ||||||
| 10 | 32-8080441 | HOSE, Molded | 1 | |||||||
| 11 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | ||||||
| 12 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 8 | |||||||
| 13 | 32-861590A05 | 676-9-44053 |
HOSE, Molded | 1 | 32-87108 | |||||
| 14 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | |||||||
| 15 | 32-860144 | 676-9-44058 |
HOSE, Thermostat Housing To Port Exhaust Manifold | 1 | ||||||
| 16 | 32-807697 | 676-9-44061 |
HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 17 | 54-815504220 | CLAMP, Worm Gear | 4 | |||||||
| 18 | 54-47715 | CLIP | 1 | |||||||
| 19 | 11-29250 | NUT, (.312-24) | 1 | |||||||
| 20 | <861554T01 | COOLER, Power Steering Oil | 1 | 807292T | ||||||
| 21 | 805546A2 | BRACKET, Oil Cooler | 1 | |||||||
| 22 | 772233 | PAD | 1 | |||||||
| 23 | 54-815504224 | CLAMP, Worm Gear | 1 | |||||||
| 24 | 10-816585 | SCREW, (.375-18 x .875) | 1 | |||||||
| - | 27-806871A96 | 700-39018 |
GASKET SET, Overhaul | 1 |
