| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

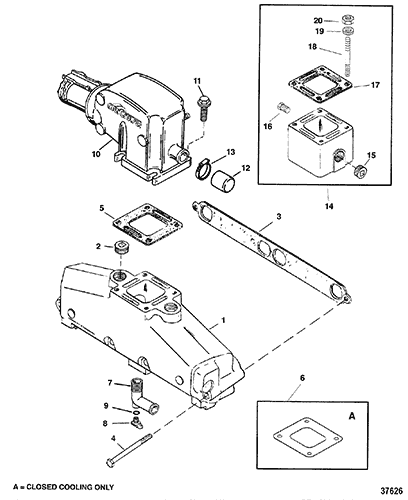

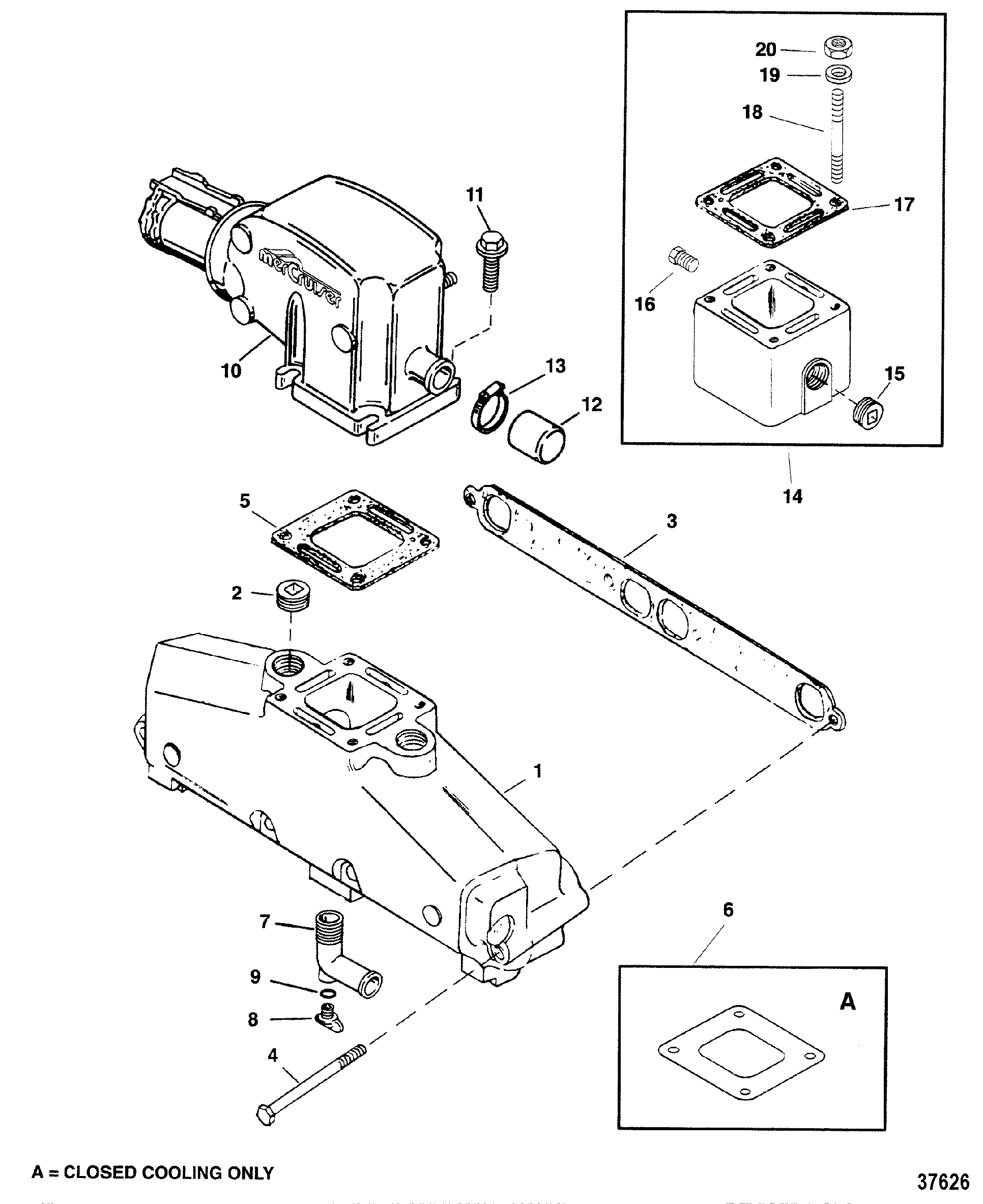

| 1 |
860246A15 |
|
|
|
|
MANIFOLD ASSEMBLY, Exhaust |
2 |
87114A19 |
|
| 2 |
22-41622 |
|
676-9-41205 |
700-21892 |
|
PLUG, (3/4-14) |
8 |
22-33198A1 |
|
| 3 |
27-33395 |
|
|
|
|
GASKET |
2 |
|
3 |
| 4 |
10-53728 |
|
|
|
|
SCREW, (.375-16 x 4.75) |
8 |
|
|
| 5 |
27-863724 |
|
|
|
|
GASKET |
2 |
27-860233 |
(STANDARD COOLING) 3 |
| 6 |
27-8637251 |
|
|
|
|
GASKET |
2 |
27-860231 |
(CLOSED COOLING) 3 |
| 7 |
22-862210A01 |
|
676-9-41206 |
700-13991 |
|
ELBOW KIT, Drain |
2 |
22-806926A1 |
|
| 8 |
22-806608A02 |
|
|
|
|
PLUG KIT, (.500-13) Royal Blue |
2 |
22-806608A1 |
|
| 9 |
25-32509 |
|
|
|
|
QUAD RING |
2 |
25-806609 |
|
| 10 |
816900A5 |
|
|
|
|
ELBOW ASSEMBLY, Exhaust |
1 |
|
This Part is No Longer Available |
| 10 |
816900A9 |
|
|
|
|
ELBOW ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 11 |
10-865982005 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
8 |
10-12244 |
|
| 12 |
19-805727001 |
|
|
|
|
CAP, Rubber |
2 |
19-805727 |
|
| 13 |
54-815504220 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 14 |
807476A7 |
|
|
|
|
RISER KIT, Exhaust (3.00 Inch) |
1 |
93320A7 |
|
| 14 |
807477A5 |
|
|
|
|
RISER KIT, Exhaust (6.00 Inch) |
1 |
93322A5 |
|
| 15 |
22-41622 |
|
676-9-41205 |
700-21892 |
|
PLUG, (3/4-14) |
2/4 |
22-33198A1 |
|
| 16 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) |
2/4 |
22-328021 |
|
| 17 |
27-863726 |
|
|
|
|
GASKET |
2 |
27-818832 |
|
| 18 |
16-97520 |
|
|
700-22481 |
|
STUD, (.375 x 5.0) |
6 |
|
USE WITH 3 IN. RISER |
| 18 |
16-34713 |
|
|
|
|
STUD, (.375 x 6.5) |
2 |
|
USE WITH 3 IN. RISER |
| 18 |
16-821738 |
|
|
|
|
STUD (3/8 X 8 IN.) |
6 |
|
This Part is No Longer Available USE WITH 6 IN. RISER |
| 18 |
8M0022137 |
|
|
|
|
STUD, (.375 x 9.56) |
2 |
16-11375 |
USE WITH 6 IN. RISER |
| 19 |
12-46132 |
|
|
|
|
WASHER |
10 |
|
|
| 20 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
8 |
|
|
| - |
27-806871A96 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
|
