5.7LX (4 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Standard Cooling System (5.7L-5.7Lx Alpha)

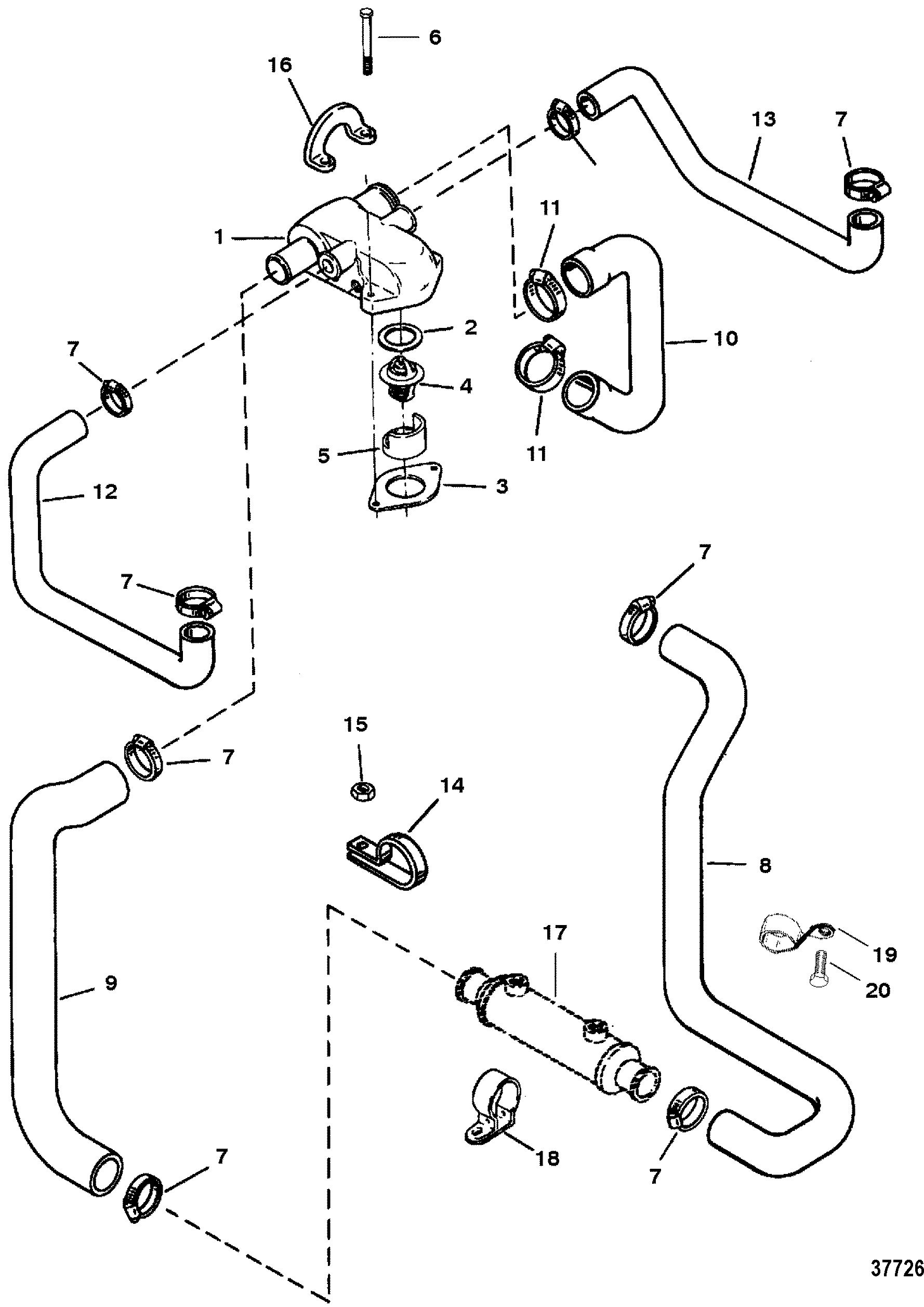

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7Lx Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807790A1 | HOUSING ASSEMBLY, Thermostat | 1 | 807123A2 | This Part is No Longer Available | ||||
| 2 | 27-806871 | GASKET | 1 | 5 | |||||
| 3 | 27-530451 | GASKET | 1 | 5 | |||||
| 4 | 807252T2 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||||
| 5 | 23-806922 | SLEEVE | 1 | ||||||
| 6 | 10-98508 | SCREW, (.375-16 x 3.00) | 2 | ||||||
| 7 | 54-815504220 | CLAMP, Worm Gear | AR | 4 | |||||
| 8 | 32-96246A4 | HOSE | 1 | 32-8153642 | |||||
| 9 | 32-806856 | HOSE | 1 | ||||||
| 10 | 32-861590A05 | HOSE | 1 | 32-806825 | |||||
| 11 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 12 | 32-8066351 | HOSE | 1 | (PORT) | |||||
| 13 | 32-8066361 | HOSE | 1 | (STARBOARD) | |||||
| 14 | 54-47715 | CLIP | 1 | ||||||
| 15 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 16 | 12552 | LIFTING EYE | 1 | ||||||
| 17 | <861554T01 | COOLER, Power Steering Oil | 1 | 807292T | |||||
| 18 | 54-816398 | CLIP | 1 | ||||||
| 19 | 54-64489 | CLAMP | 1 | No longer made, limited availability | |||||
| 20 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| - | 27-806871A96 | GASKET SET, Overhaul | 1 |
