5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Starter Motor And Alternator

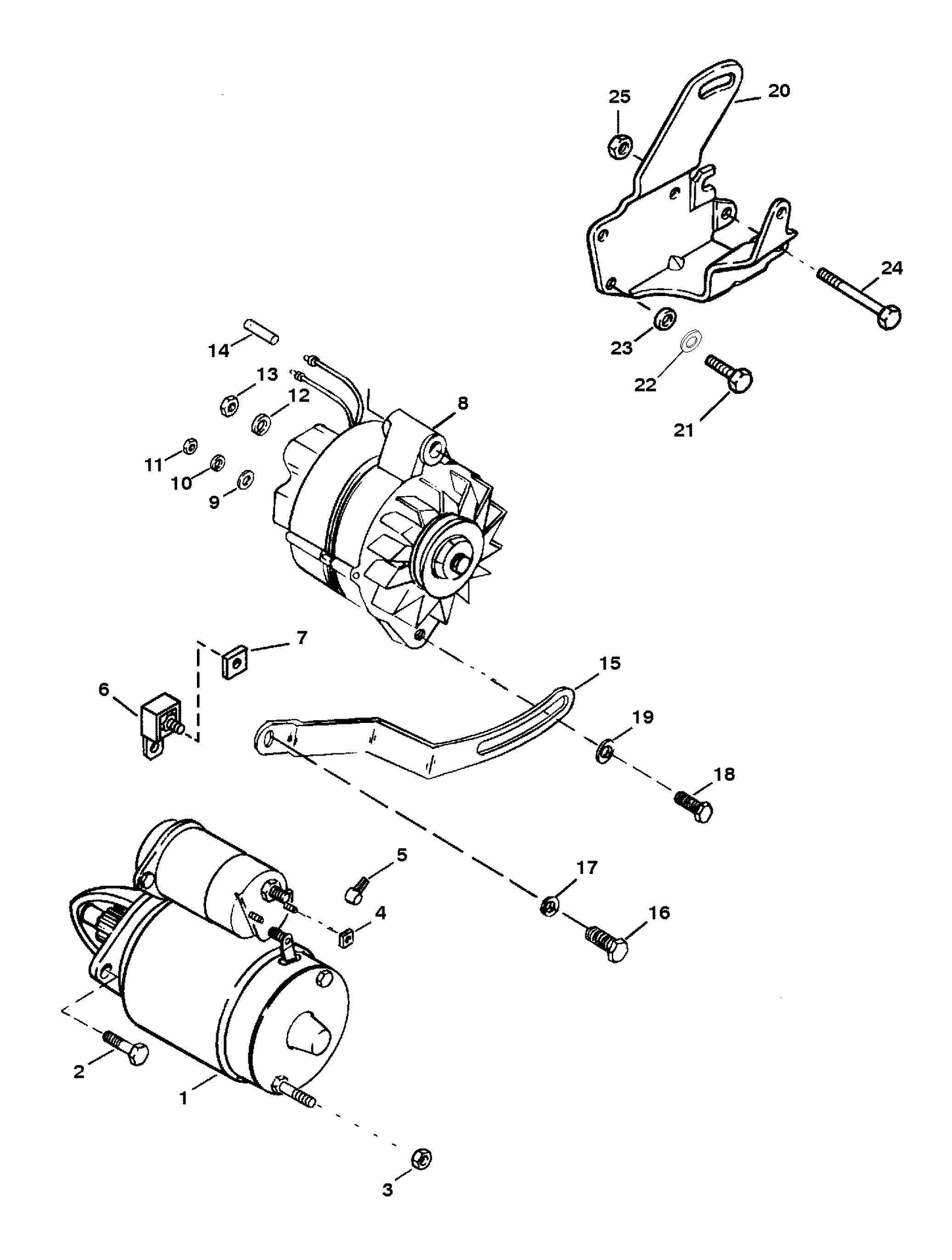

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha / Bravo)
- Cylinder Block And Camshaft (5.7Lx Alpha / Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER MOTOR | 1 | 50-806964A3 | |||||
| 2 | 10-8053432 | SCREW | 2 | ||||||
| 3 | 11-806949 | NUT (8MM) | 1 | ||||||
| 4 | 11-400211 | NUT (5MM) | 1 | ||||||
| 5 | 85-79695T | INSULATOR | 1 | 85-79695 | |||||
| 6 | 88-79023A91 | FUSE ASSEMBLY (90 AMP) | 1 | ||||||
| 7 | 11-21825 | NUT | 1 | ||||||
| 8 | 805884T | ALTERNATOR | 1 | ||||||
| 9 | 12-96457 | PHENOLIC WASHER | 1 | ||||||
| 10 | 13-26996 | LOCKWASHER | 1 | ||||||
| 11 | 11-79989 | NUT (10-24) | 1 | ||||||
| 12 | 13-26992 | LOCKWASHER | 1 | ||||||
| 13 | 11-94330 | NUT (1/4-20) | 1 | ||||||
| 14 | 5790811 | TUBING | 2 | ||||||
| 15 | 85013T | BRACE | 1 | ||||||
| 16 | 10-98261 | SCREW | 1 | (ALPHA ENGINES) | |||||
| 16 | 10-26487 | SCREW | 1 | (BRAVO ENGINES) | |||||
| 17 | 13-35048 | LOCKWASHER | 1 | (BRAVO ENGINES) | |||||
| 18 | 10-29198 | SCREW | 1 | ||||||
| 19 | 12-26168 | WASHER | 1 | ||||||
| 20 | 15083T | BRACKET | 1 | This Part is No Longer Available | |||||
| 21 | 10-37612 | SCREW (1-1/4") | 2 | ||||||
| 22 | 12-20553 | WASHER | 2 | ||||||
| 21 | 10-34353 | SCREW (1") | 1 | ||||||
| 22 | 12-20553 | WASHER | 1 | ||||||
| 21 | 10-48424 | SCREW (1-5/8") | 1 | ||||||
| 22 | 13-35048 | LOCKWASHER | 1 | ||||||
| 23 | 12-46132 | WASHER | 1 | ||||||
| 24 | 10-56743 | SCREW (3-1/8") | 1 | ||||||
| 25 | 11-23161 | NUT | 1 |
