Bravo Three - Serial 0W250000 and Up - Universal Joint and Shift Components

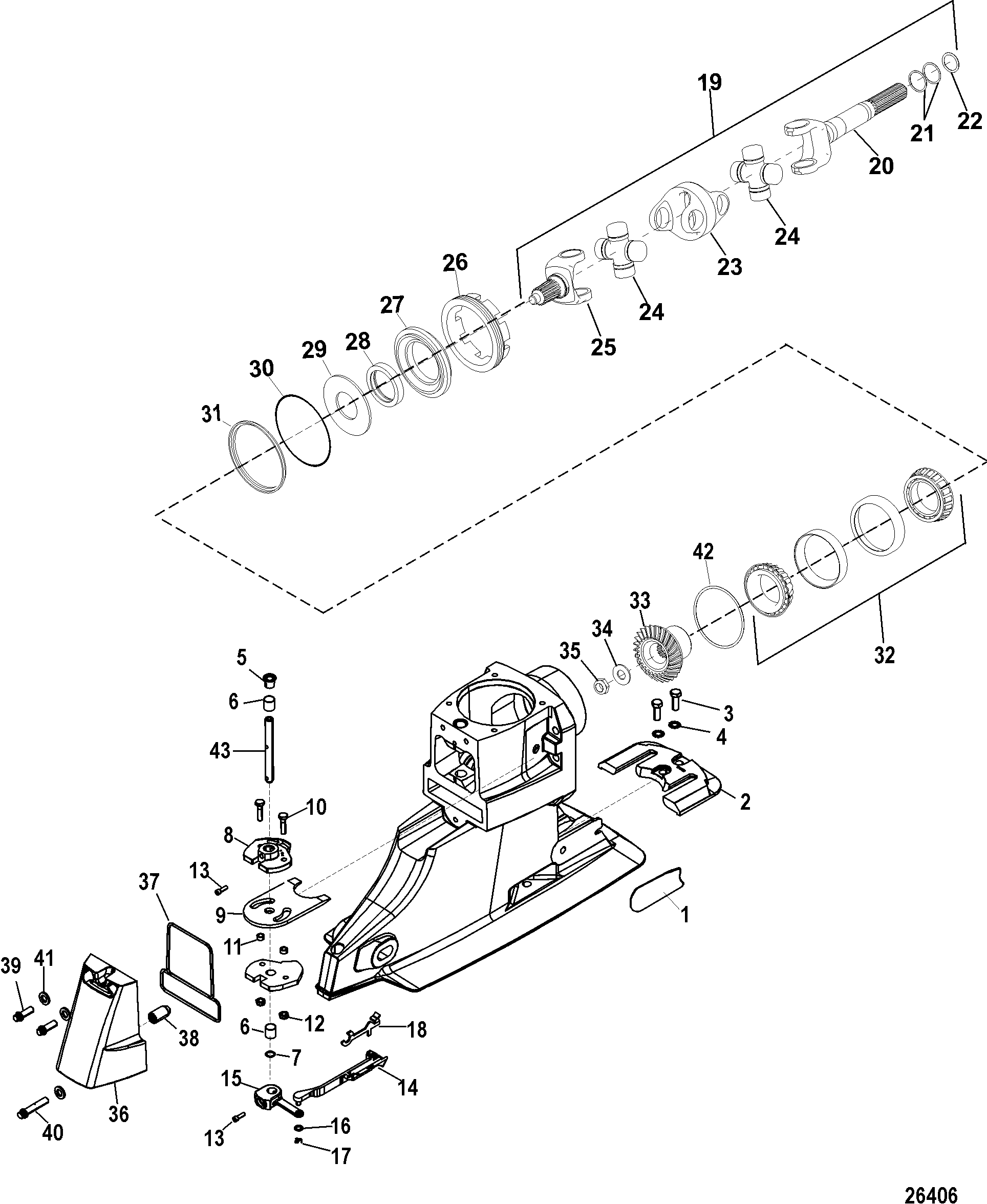

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document >
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1589-865440H50



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)
- 866458J01



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)
- 1589-865440H51



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)
- 866458J02



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)
- 1589-865440H52



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)
- 1500-866458J03



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)
- 1589-865440H01



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)
- 1500-866458J04



HOUSING ASSEMBLY, Driveshaft - Complete 1
(SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)
- 1589-865440H02



HOUSING ASSEMBLY, Driveshaft - Complete 1
(Bravo-III 1.50:1 Ratio)
- 1589-865440H72



HOUSING, Driveshaft - Basic 1

- 1500-866458J00



HOUSING, Driveshaft - Basic 1
(SEACORE)
1 805261A1



WEAR PAD KIT 1

2 821630Q1



ANODE ASSEMBLY 1

3 10-65210



SCREW, (.375-16 x 1.00) 2

4 13-35479



LOCKWASHER, (.375) 2

5 19-865866



PLUG, Shift Shaft Oil Seal 1

6 23-861209A1



BUSHING KIT 1

7 26-127091



SEAL 1

8 806552A1



YOKE AND CAM ASSEMBLY 1

9 806552



YOKE, Shifter 1

10 10-805733



SCREW, (.250-28 x 1.00) 2

11 23-12706



SPACER, (.194 x .375) 2

12 11-8267139



NUT, (.250-28) 2

13 10-865900



SCREW, (.250-28 x .930) 2 10-865712
14 861175A2



SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever 1
BI 1.36, BII 1.50, BIII 1.36 & 1.50
14 861175A03



SHIFT LINKAGE ASSEMBLY, Low Bump Shift Lever 1
BI 1.50 & 1.65, BII 1.65, 1.81, 2.00 & 2.20, BIII 1.65, 1.81, 2.00, 2.20, 2.43
15 NSS



NOT SOLD SEPARATE, SHIFT LEVER 1
This Part is not sold separately
16 12-20583



WASHER 1

17 18-26953



COTTER PIN 1

18 86776



LATCH 1

19 864244A2



UNIVERSAL JOINT ASSEMBLY 1

20 864244A01



YOKE ASSEMBLY, Coupler End 1 865494A01
21 25-29845



O-RING, (.924 x .103) 2
17
22 25-35027
700-81180 525-25-35027
O-RING, (1.046) 1
17
23 865503T



SOCKET, Center 1 865509T
24 865496A02



CROSS AND BEARING 2 865496A01
25 864245T



YOKE, Gear End 1 865495T
26 11-92004



RING NUT 1

27 86779A1



CARRIER ASSEMBLY 1

28 26-807006



SEAL, Oil 1

29 12-41613



WASHER 1

30 25-861844



O-RING 1

31 86780



RING 1

32 31-86763A04



BEARING ASSEMBLY, Tapered Roller 1

33 43-883473A2



GEAR SET, (32/27), High Bump Sleeve 1
BIII 1.50, wear ring stamped H
33 43-883476A2



GEAR SET, (29/27), High Bump Sleeve 1
BI 1.36, BII 1.50, BIII 1.36, wear ring stamped H
33 43-883479A2



GEAR SET, (30/23), High Bump Sleeve 1
BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped H
33 43-8M0060003



GEAR SET, (32/27), Low Bump Sleeve 1
BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00
33 43-8M0060004



GEAR SET, (29/27), Low Bump Sleeve 1
BII 1.81, BIII 1.81
33 43-8M0060005



GEAR SET, (30/23), Low Bump Sleeve 1
BI 1.65, BII 2.20, BIII 2.20 & 2.43
34 12-44539



WASHER 1

35 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1 11-97522
36 865441A02



COVER ASSEMBLY, Back 1

36 866463A02



COVER ASSEMBLY, Back 1
(SEACORE)
37 12708



SEAL 1
17
38 865711A02



DETENT ASSEMBLY 1 14497A2
39 10-98794
676-9-78129 700-28300 525-10-98794SCREW, (.375-16 x 1.00) 2

40 10-87158



SCREW, (.375-16 x 1.875) 1

41 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3
(SEACORE)
42 15-888927028



SHIM, (.028) AR
42 15-888927029



SHIM, (.029) AR
42 15-888927030



SHIM, (.030) AR
42 15-888927031



SHIM, (.031) AR
42 15-888927032



SHIM, (.032) AR
42 15-888927033



SHIM, (.033) AR
42 15-888927034



SHIM, (.034) AR
42 15-888927035



SHIM, (.035) AR
42 15-888927036



SHIM, (.036) AR
42 15-888927037



SHIM, (.037) AR
42 15-888927038



SHIM, (.038) AR
42 15-888927039



SHIM, (.039) AR
42 15-888927040



SHIM, (.040) AR
43 12711



SHAFT 1
- 26-16709A2



SEAL KIT, Driveshaft Housing 1
