| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

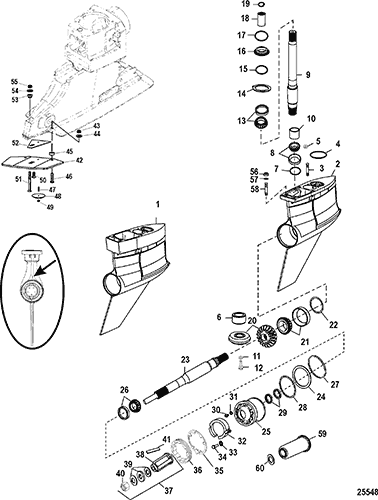

1600-883608T49 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(17/18 Long Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| - |
1600-883608T50 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(17/18 Short Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| - |
1600-883608T51 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(15/17 Long Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| - |
1600-883608T52 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(15/17 Short Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| - |
1600-883608T53 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(15/19 Long Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| - |
1600-883608T54 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
(15/19 Short Style) Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| 1 |
1600-883608T55 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
|
- Long Style - Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| 2 |
1600-883608T56 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
|
- Short Style - Number 1 Stamped Above The Propshaft Opening SN# 0M955634 & Up |
| 3 |
16-579203 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.060) |
2 |
|
|
| 4 |
25-33465 |
|
|
|
|
O-RING |
1 |
|
|
| 5 |
26-455771 |
|
|
|
|
SEAL, Quad Ring |
1 |
|
|
| 6 |
31-86754T |
|
|
|
|
BEARING ASSEMBLY, Roller, Needle |
1 |
|
|
| 7 |
15-92914A1 |
|
|
|
|
SHIM KIT |
AR |
|
|
| 8 |
31-99328A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
31-66668A1 |
|
| 9 |
45-858517A3 |
|
|
|
|
DRIVESHAFT ASSEMBLY, (16.085 Long) |
1 |
|
Long Style Models |
| 9 |
45-840979T1 |
|
|
|
|
DRIVESHAFT ASSEMBLY, (14.085 Long) |
1 |
|
Short Style Models |
| 10 |
31-815901 |
|
|
|
|
RACE, Bearing |
1 |
|
|
| 11 |
12-805068 |
|
|
|
|
WASHER |
1 |
|
|
| 12 |
10-808027 |
|
|
|
|
SCREW |
1 |
|
|
| 13 |
31-86748A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
|
|
| 14 |
14-86739 |
|
|
|
|
TAB WASHER |
1 |
|
|
| 15 |
15-86749A1 |
|
|
|
|
SHIM KIT |
AR |
|
|
| 16 |
23-92916 |
|
|
|
|
SPACER |
1 |
|
|
| 17 |
25-20826 |
|
|
700-82280 |
525-25-20826 |
O-RING, (2.230 x .139) |
1 |
|
|
| 18 |
88243A3 |
|
|
|
|
COUPLING ASSEMBLY |
1 |
|
|
| 19 |
53-88242 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 20 |
43-818928A2 |
|
|
|
|
GEAR SET, (15/19) |
1 |
|
|
| 20 |
43-840872A1 |
|
|
|
|
GEAR SET, (15/17) |
1 |
|
|
| 20 |
43-840870A1 |
|
|
|
|
GEAR SET, (17/18) |
1 |
|
|
| 21 |
31-86752A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
|
|
| 22 |
15-87157A1 |
|
|
|
|
SHIM KIT |
AR |
|
|
| 22 |
15-F9283 |
|
|
|
|
SHIM, (.003) |
OPT |
|
|
| 23 |
44-840377T |
|
|
|
|
PROPELLER SHAFT |
1 |
|
|
| 24 |
12-42256 |
|
|
|
|
THRUST WASHER, (.105 Inch Thick) |
1 |
|
|
| 25 |
840372A2 |
|
|
|
|
CARRIER ASSEMBLY, Bearing |
1 |
|
|
| 26 |
31-812767A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
|
|
| 27 |
67440T |
|
|
|
|
LOAD RING |
1 |
|
|
| 28 |
25-31534 |
|
|
|
|
O-RING |
1 |
|
|
| 29 |
26-815565 |
|
|
|
|
SEAL, Oil |
2 |
|
|
| 30 |
22-8M0058389 |
|
|
|
|
PLUG KIT, Drain - Magnetic |
1 |
22-67892A06 |
|
| 31 |
26-830749 |
|
|
|
|
SEAL |
1 |
|
|
| 32 |
806188Q01 |
|
|
|
|
ANODE ASSEMBLY |
1 |
806188A1 |
|
| 33 |
13-69432 |
|
|
700-21491 |
525-13-69432 |
|
LOCKWASHER, External (#10) |
2 |
|
|
| 34 |
10-806290 |
|
|
|
|
SCREW, (#10-32 x .625) |
2 |
|
|
| 35 |
14-18323 |
|
|
|
|
TAB WASHER, Keyed |
1 |
|
|
| 36 |
8M2011027 |
|
|
|
|
RETAINER, Bearing Carrier |
1 |
79448 |
|
| 37 |
840389K06 |
|
|
|
|
HUB KIT, Propeller |
1 |
840389K5 |
|
| 38 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Propeller Hub |
1 |
|
This Part is not sold separately |
| 39 |
12-840383A2 |
|
|
|
|
WASHER/NUT KIT |
1 |
|
|
| 40 |
11-52707Q1 |
|
|
|
|
PROP NUT KIT, (.750-16) |
1 |
|
|
| 41 |
840382A02 |
|
|
|
|
SNUBBER STRIP KIT |
1 |
840382A1 |
|
| 42 |
843042T03 |
|
|
|
|
SPLASH PLATE KIT, Stainless Steel |
1 |
|
|
| 43 |
11-82670910 |
|
|
|
|
NUT, (.312-18) Stainless Steel |
2 |
|
|
| 44 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 45 |
23-843043 |
|
|
|
|
SPACER (.320 Thick x .343 x .750) |
2 |
|
|
| 46 |
10-842831 |
|
|
|
|
SCREW, (.312-18 x 1.25) |
2 |
|
|
| 47 |
16-8M0034461 |
|
|
|
|
STUD, (#10-32 x .930) |
1 |
16-21085 |
|
| 48 |
847332 |
|
|
|
|
ANODE |
1 |
|
|
| 49 |
11-8267096 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
| 50 |
10-841031 |
|
|
|
|
SCREW, (.437-14 x 1.00) |
1 |
|
|
| 51 |
10-842952 |
|
|
|
|
SCREW, (.437-14 x 4.25) |
1 |
|
|
| 52 |
27-842826 |
|
|
|
|
GASKET, Splash Plate |
1 |
|
|
| 53 |
23-842953 |
|
|
|
|
BUSHING |
1 |
|
|
| 54 |
12-35935 |
|
|
|
|
WASHER, (.435 x .875 x .105) Stainless Steel |
1 |
|
|
| 55 |
11-826709014 |
|
|
|
|
NUT, (.437-14) Stainless Steel |
1 |
|
|
| 56 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
6 |
|
|
| 57 |
12-861854 |
|
|
|
|
WASHER, (.453 x .750 x .032) Stainless Steel |
6 |
|
|
| 58 |
16-579203 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.060) |
4 |
|
Short Style Models |
| 58 |
16-841024001 |
|
|
|
|
STUD, (.437-14/.437-20 x 4.250) |
4 |
|
Long Style Models |
| 59 |
8480611 |
|
|
|
|
COVER, Propshaft |
1 |
|
|
| 60 |
12-85344 |
|
|
|
|
WASHER, (.750 Inside Diameter) |
1 |
|
|
| - |
843122T01 |
|
|
|
|
FLUSH ATTACHMENT |
1 |
|
With Bungee Cord - Orange |
| - |
26-815565A02 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
