Bravo XZ One - Serial 0L914990 Thru 0M999999 - Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)

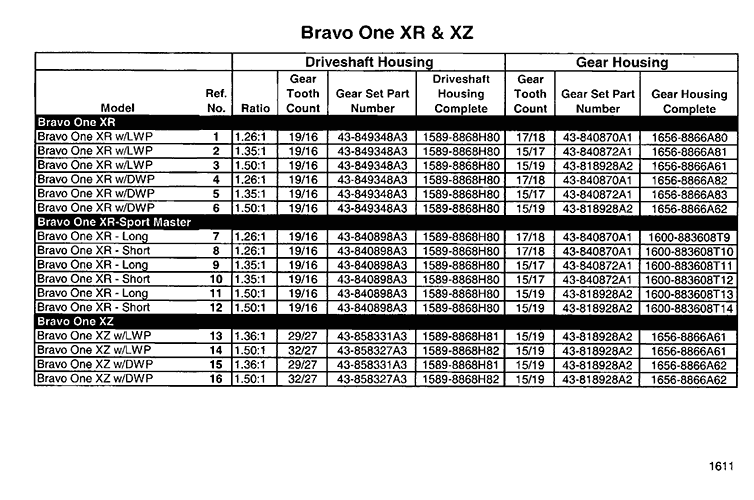

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- NSS         NOT SOLD SEPARATE, BRAVO ONE XR -
This Part is not sold separately
1 5-5E36800NZ         , Complete 1   This Part is No Longer Available (1.26:1 Ratio)
1 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
1 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
1 1656-8866A80         GEAR HOUSING ASSEMBLY, (17/18), Complete 1
(With Low Water Pick-Up)
1 43-840870A1         GEAR SET, (17/18) 1

2 5-5E36900NZ         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR-with Low Water Pick-Up) (1.35:1 Ratio)
2 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complet 1 1589-8868H80
2 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
2 1656-8866A81         GEAR HOUSING ASSEMBLY, (15/17), Complete 1
(With Low Water Pick-Up)
2 43-840872A1         GEAR SET, (15/17) 1

3 5-5E36200NZ         STERNDRIVE UNIT, Complete 1
(Bravo One XR, With Low Water Pick-Up) (1.50:1 Ratio)
3 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
3 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
3 1656-8866A61         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(With Low Water Pick-Up)
3 848928A2         GEAR SET, (15/19) 1

4 5-5E31800NZ         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR, With Dual Water Pick-Up) (1.26:1 Ratio)
4 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
4 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
4 1656-8866A82         GEAR HOUSING ASSEMBLY, (17/18), Complete 1
(With Dual Water Pick-Up)
4 43-840870A1         GEAR SET, (17/18) 1

5 5-5E31900NZ         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR, With Dual Water Pick-Up) (1.35:1 Ratio)
5 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
5 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
5 1656-8866A83         GEAR HOUSING ASSEMBLY, (15/17), Complete 1
(With Dual Water Pick-Up)
5 43-840872A1         GEAR SET, (15/17) 1

6 5-5E31200NZ         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR With Dual Water Pick-Up) (1.50:1 Ratio)
6 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
6 43-840898A3         GEAR SET, (19/16) 1 43-849348A3 Includes all 3 gears
6 1656-8866A62         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(Dual Water Pick-Up)
6 43-818928A2         GEAR SET, (15/19) 1

- NSS         NOT SOLD SEPARATE, BRAVO ONE XR -
This Part is not sold separately (Sportmaster)
7 5-5F36800HH         STERNDRIVE, Complete 1   This Part is No Longer Available (Bravo One XR-Long) (1.26:1 Ratio) (Sportmaster)
7 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
7 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
7 1600-883608T49         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T9
7 43-840870A1         GEAR SET, (17/18) 1

8 5-5G36800HH         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR-Short) (1.26:1 Ratio) (Sportmaster)
8 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
8 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
8 1600-883608T50         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T10
8 43-840870A1         GEAR SET, (17/18) 1

9 5-5F36900HH         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR-Long) (1.35:1 Ratio) (Sportmaster)
9 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
9 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
9 1600-883608T51         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T11
9 43-840872A1         GEAR SET, (15/17) 1

10 5-5G36900HH         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR -Short) (1.35:1 Ratio) (Sportmaster)
10 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
10 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
10 1600-883608T52         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T12
10 43-840872A1         GEAR SET, (15/17) 1

11 5-5F36200HH         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR-Long) (1.50:1 Ratio) (Sportmaster)
11 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
11 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
11 1600-883608T53         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T13
11 43-818928A2         GEAR SET, (15/19) 1

12 5-5G36200HH         STERNDRIVE UNIT, Complete 1   This Part is No Longer Available (Bravo One XR-Short) (1.50:1 Ratio) (Sportmaster)
12 1589-863836A56         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H80
12 43-840898A3         GEAR SET, (16/19) 1
Includes all 3 gears
12 1600-883608T54         GEAR HOUSING ASSEMBLY, Complete 1 1600-883608T14
12 43-818928A2         GEAR SET, (15/19) 1

- NSS         NOT SOLD SEPARATE, BRAVO ONE XZ -
This Part is not sold separately
13 5-5D36100PP         STERNDRIVE UNIT, Complete 1 5D36100NP This Part is No Longer Available (Bravo One XZ, With Low Water Pick-Up (1.36:1 Ratio)
13 1589-863836A66         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H81
13 43-887906A1         GEAR SET, (29/27) 1 43-858331A3
13 1656-8866A61         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(With Low Water Pick-Up)
13 43-818928A2         GEAR SET, (15/19) 1

14 5-5D36200PP         STERNDRIVE UNIT, Complete 1 5D36200NP This Part is No Longer Available (Bravo One XZ, With Low Water Pick-Up (1.50:1 Ratio)
14 1589-863836A67         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H82
14 43-887903A1         GEAR SET, (32/27) 1 43-858327A3
14 1656-8866A61         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(With Low Water Pick-Up)
14 43-818928A2         GEAR SET, (15/19) 1

15 5-5D31100PP         STERNDRIVE UNIT, Complete 1 5D31100NZ This Part is No Longer Available (Bravo One XZ, With Dual Water Pick-Up) (1.36:1 Ratio)
15 1589-863836A66         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H81
15 43-887906A1         GEAR SET, (29/27) 1 43-858331A3
15 1656-8866A62         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(With Dual Water Pick-Up)
15 43-818928A2         GEAR SET, (15/19) 1

16 5-5D31200PP         STERNDRIVE UNIT, Complete 1 5D31200NZ This Part is No Longer Available (Bravo One XZ-with Dual Water Pick-Up) (1.50:1 Ratio)
16 1589-863836A67         HOUSING ASSEMBLY, Driveshaft, Complete 1 1589-8868H82
16 43-887903A1         GEAR SET, (32/27) 1 43-858327A3
16 1656-8866A62         GEAR HOUSING ASSEMBLY, (15/19), Complete 1
(With Dual Water Pick-Up)
16 43-818928A2         GEAR SET, (15/19) 1
