| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| -- |

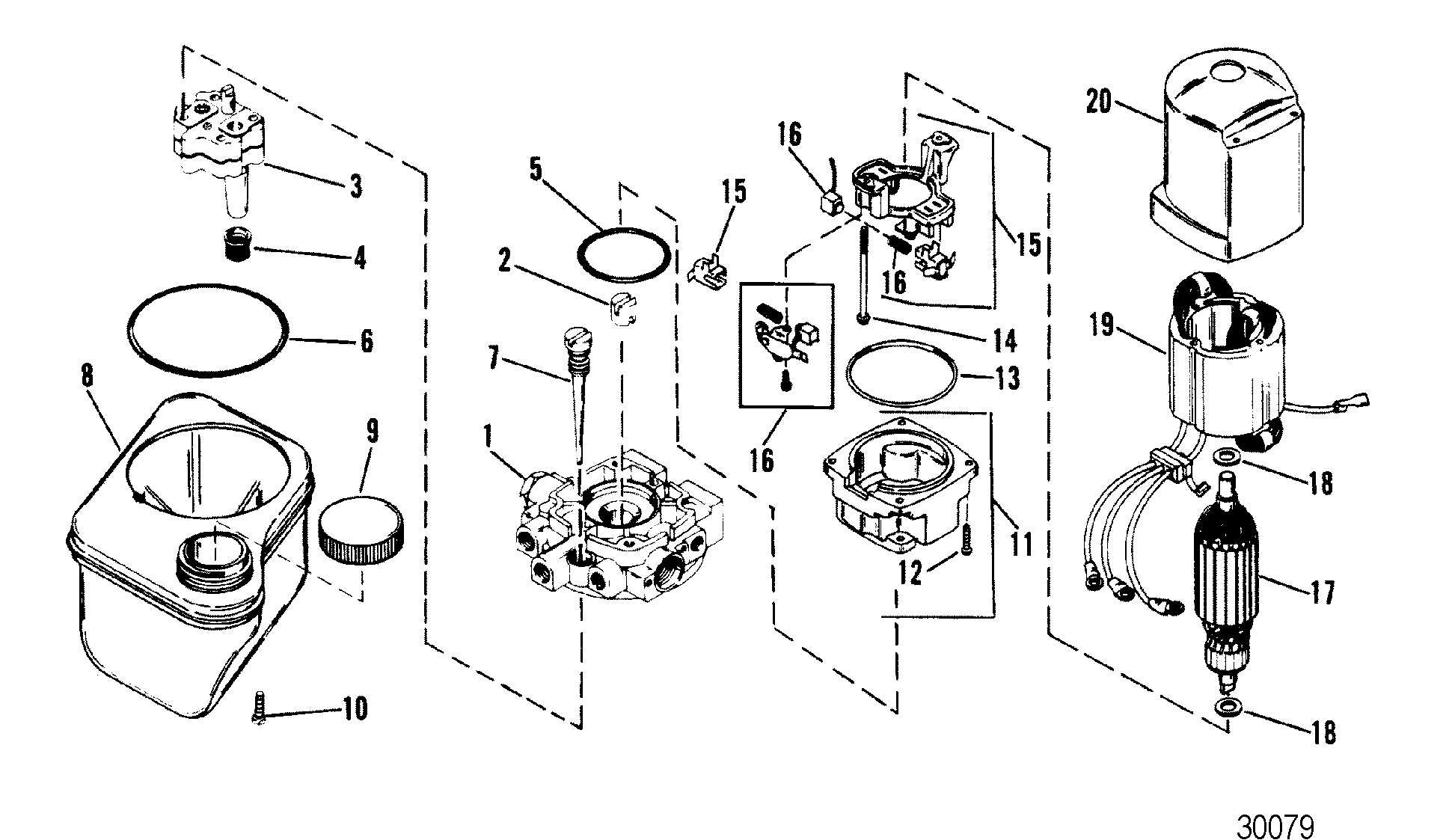

865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A20 |
|
| 1 |
808728T |
|
|
|
|
ADAPTER ASSEMBLY |
1 |
|
|
| 2 |
803852 |
|
|
|
|
COUPLING |
1 |
|
|
| 3 |
18529 |
|
|
|
|
PUMP ASSEMBLY (INCLUDES SCREWS) |
1 |
|
Does not include filters |
| 4 |
35-89496 |
|
|
|
|
FILTER |
1 |
|
|
| 5 |
25-89498 |
|
|
|
|
O-RING, MOTOR END |
1 |
|
|
| 6 |
25-17645 |
|
|
|
|
O-RING, RESERVOIR END |
1 |
|
|
| 7 |
41218 |
|
|
|
|
DIPSTICK |
1 |
|
This Part is No Longer Available |
| 8 |
18525A1 |
|
|
|
|
RESERVOIR |
1 |
|
This Part is No Longer Available |
| 9 |
36-865448A01 |
|
|
|
|
CAP (WITH VENT HOLE) |
1 |
36-861597 |
|
| 10 |
10-18527 |
|
|
|
|
SCREW (INCLUDES O-RING) |
1 |
|
|
| -- |
891736T |
|
676-9-18207 |
|
|
MOTOR ASSEMBLY, HYDRAULIC PUMP |
1 |
17649T |
|
| 11 |
891736T |
|
|
|
|
END CAP ASSEMBLY |
1 |
17632T |
|
| 12 |
891736T |
|
|
|
|
SCREW, END CAP |
4 |
10-17626 |
|
| 13 |
891736T |
|
|
|
|
O-RING, HOUSING |
1 |
25-17625 |
|
| 14 |
891736T |
|
|
|
|
SCREW, FIELD FRAME |
2 |
10-17621 |
|
| 15 |
17633 |
|
|
|
|
HOLDER KIT |
1 |
|
No longer made, limited availability |
| 16 |
891736T |
|
|
|
|
BRUSH KIT |
1 |
17631A1 |
|
| 17 |
17623 |
|
|
|
|
ARMATURE |
1 |
|
|
| 18 |
891736T |
|
|
|
|
WASHER, THRUST - ARMATURE |
2 |
12-17653 |
|
| 19 |
17624 |
|
|
|
|
FIELD AND FRAME ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 20 |
891736T |
|
|
|
|
COVER ASSEMBLY |
1 |
17622 |
|
| - |
18545A1 |
|
|
|
|
REPAIR KIT |
- |
|
|
| - |
95353A1 |
|
|
|
|
VALVE KIT, Relief |
- |
|
|
| - |
812499A1 |
|
|
|
|
VALVE KIT, Relief |
- |
|
|
| - |
812498A1 |
|
|
|
|
VALVE KIT, Relief |
- |
|
|
