SSM Seven - All Serials - Tool List (Dry Sump Six-NXT1 SSM Six - Transom)

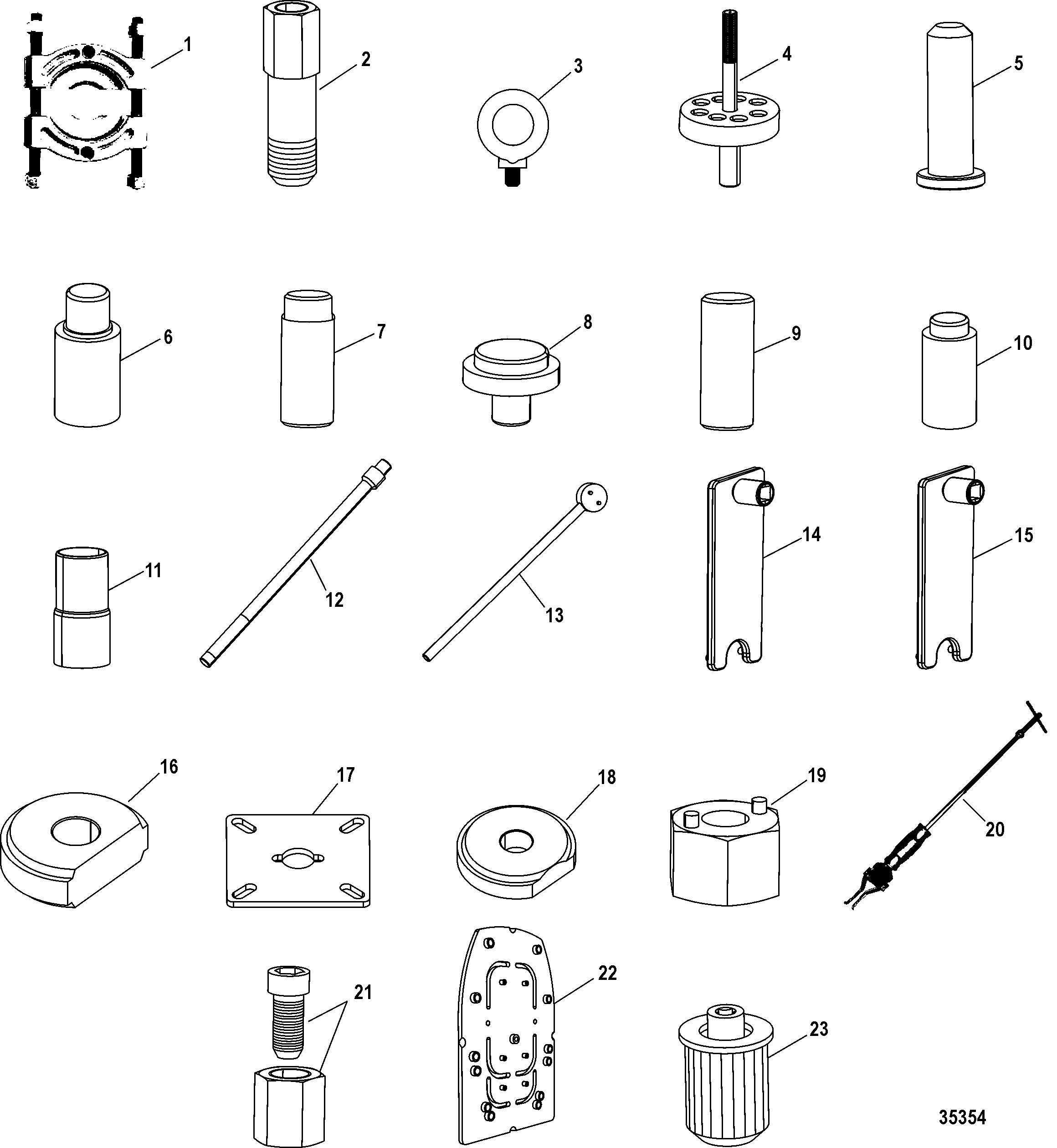

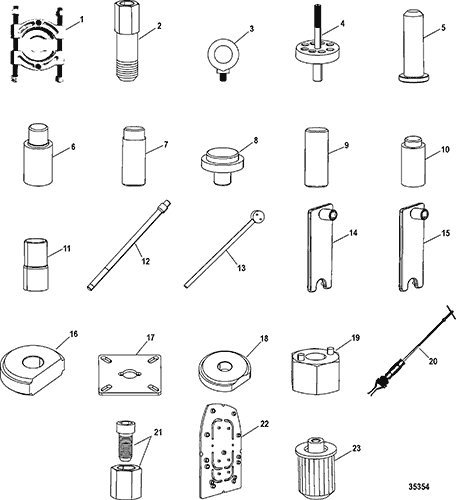

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 91-37241 | 700-90150 | PULLER PLATE | 1 | |||||
| 2 | 8M0052726 | REMOVAL TOOL, Trim Indicator Tilt Pin | 1 | 91-845401 | |||||
| 3 | 846682 | EYE BOLT | 1 | ||||||
| 4 | 91-846812 | ALIGNMENT TOOL, Close Couple | 1 | ||||||
| 5 | 91-847423 | PRESSING TOOL, Cylinder End Cap Assembly | 1 | ||||||
| 6 | 91-847424 | INSTALLER TOOL, Trim Cylinder Bearing | 1 | ||||||
| 7 | 91-847425 | PRESSING TOOL, Seal | 1 | ||||||
| 8 | 8M0050778 | PRESSING TOOL, Seal | 1 | 91-847426 | |||||
| 9 | 8M0050842 | PUSHER TOOL, Bushing And Scraper | 1 | 91-847436 | |||||
| 10 | 8M0053741 | INSTALLER TOOL, Flanged Bushing, Tilt Housing And Trim Cylinder | 1 | 91-847447 | |||||
| 11 | 8M0050834 | SAVER TOOL, Transom Shaft Seal | 1 | 91-847448 | |||||
| 12 | 8M0050777 | HANDLE TOOL, Bearing Cup Driver | 1 | 91-847452 | |||||
| 13 | 8M0050921 | SPANNER WRENCH TOOL, Gimbal Ring | 1 | 91-847457 | |||||
| 14 | 8M0050782 | SPANNER WRENCH TOOL, Steering Cylinder End Cap | 1 | 91-847458 | |||||
| 15 | 8M0050762 | SPANNER WRENCH TOOL, Trim Cylinder End Cap | 1 | 91-847459 | |||||
| 16 | 8M0050505 | INSTALLER TOOL, Bearing Cup | 1 | 91-847471 | |||||
| 17 | 8M0050740 | CENTERING TOOL, Upper Pinion | 1 | 91-847480 | |||||
| 18 | 8M0050818 | DRIVER TOOL, Bearing Cup | 1 | 91-847574 | |||||
| 19 | 91-8M0053745 | SPANNER TOOL, Trim Piston | 1 | 91-848675 | |||||
| 20 | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| 21 | 91-847442A01 | REMOVAL TOOL, Pivot Pin, Used With Slide Hammer | 1 | ||||||
| 22 | 91-899728T | DRILLING FIXTURE, Transom | 1 | ||||||
| 23 | 91-8M0010286 | SOCKET TOOL, Transom Spline | 1 |
