500 EFI - Serial 0L307028 Thru 0L602036 - Flywheel Housing (Bravo)

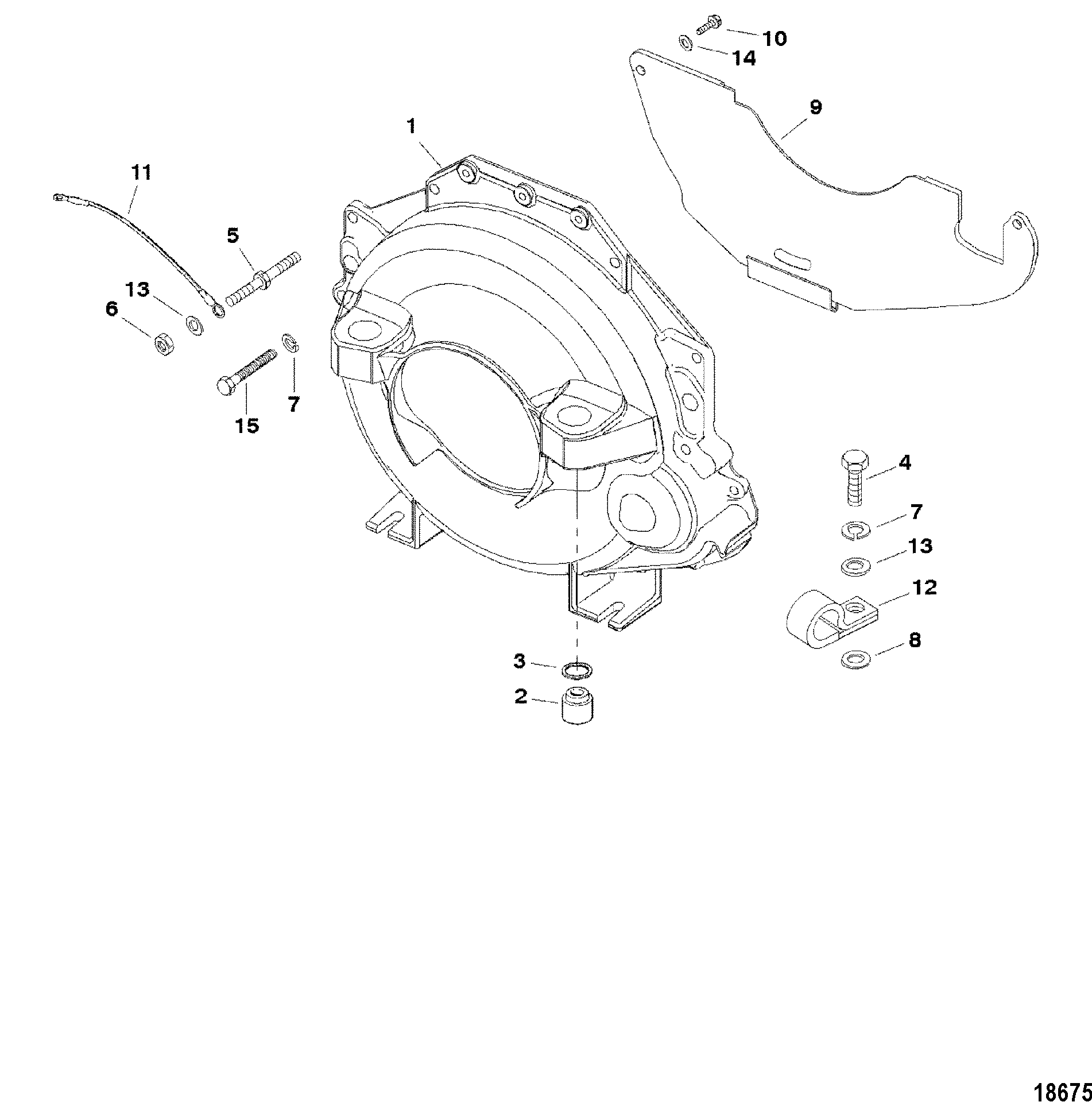

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | HOUSING ASSEMBLY, Flywheel, Flywheel | 1 | 12675A7 | |||||
| 2 | 865330A02 | MOUNT, Rubber | 2 | 88791T | |||||
| 3 | 23-99322 | SPACER, Rubber Mount | 2 | ||||||
| 4 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 8 | 12-74759 | WASHER, (.391 x .880 x .125) Stainless Steel | 1 | ||||||
| 9 | 807260A2 | COVER KIT, Flywheel | 1 | ||||||
| 10 | 10-455611 | SCREW, (.250-20 x 1.12) | 2 | 10-45561 | |||||
| 11 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 2 | ||||||
| 12 | 54-62494 | CLIP, Water Hose | 1 | ||||||
| 13 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | ||||||
| 14 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 15 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 1 | ||||||
| 15 | 10-58642 | SCREW, (.375-16 x 1.50) Stainless Steel | 2 |
