525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Flywheel Housing (Transmission Models)

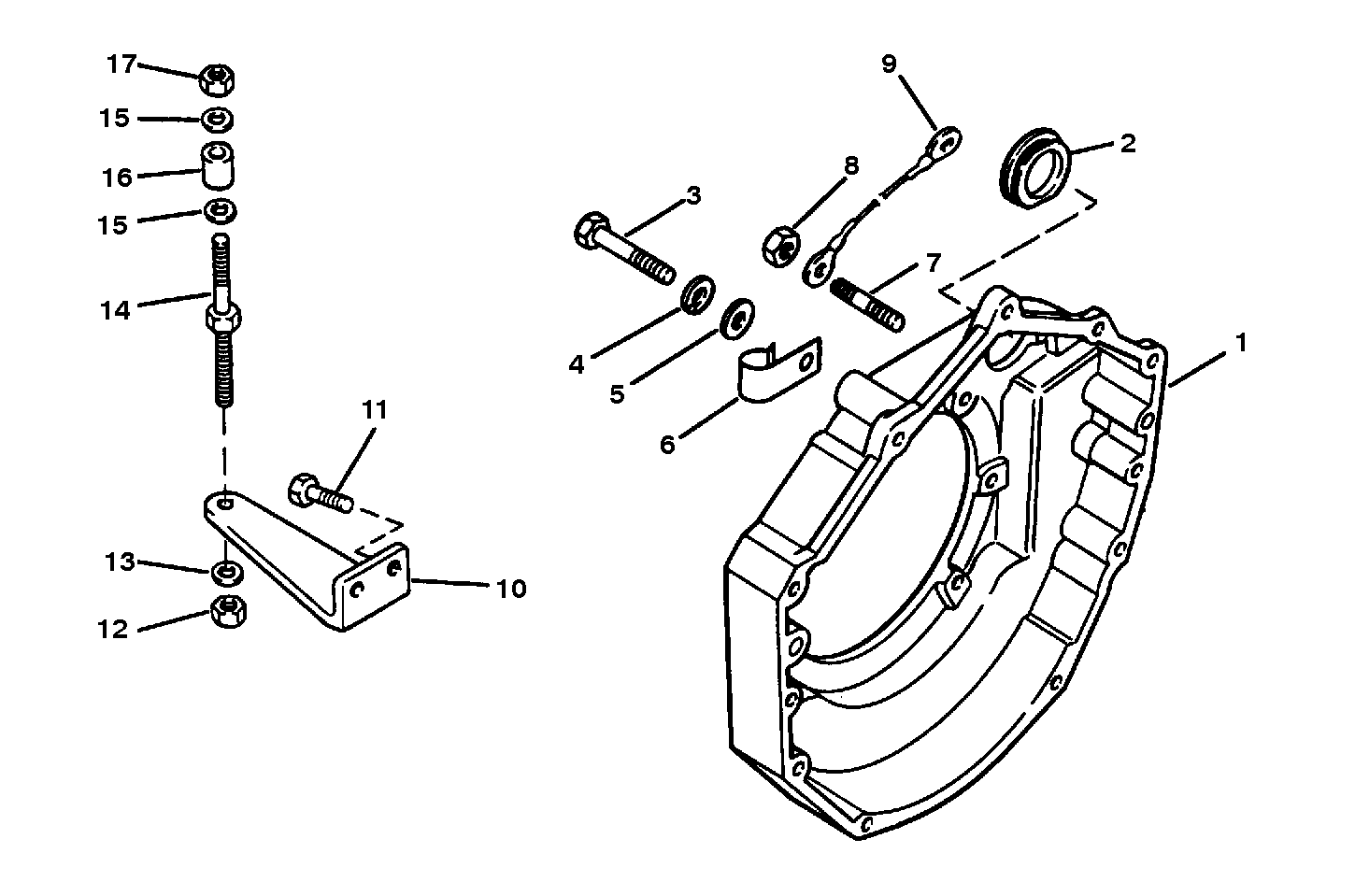

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44187T | HOUSING-Flywheel | 1 | ||||||
| 2 | 19-12304 | PLUG-Timing Window | 1 | ||||||
| 3 | 10-34353 | SCREW (.375-16 x 1.00) | 1 | ||||||
| 3 | 10-37612 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 3 | 10-47688 | SCREW (.375-16 x 2.750) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (.375) | 7 | ||||||
| 5 | 12-20553 | WASHER | 5 | ||||||
| 5 | 12-20572 | WASHER (FOR SLOT) | 1 | ||||||
| 6 | 54-47483 | J CLIP | 1 | ||||||
| 7 | 16-96112 | STUD (2.250) | 2 | ||||||
| 8 | 11-32219 | NUT (.375-16) | 2 | ||||||
| 9 | 84-62826A7 | CABLE ASSEMBLY (21.00 In.)-Ground | 1 | This Part is No Longer Available | |||||
| 9 | 84-62826A6 | CABLE ASSEMBLY (13.00 In.)-Ground | 1 | ||||||
| 10 | 17917 | BRACKET-Shift | 1 | ||||||
| 11 | 10-28668 | SCREW (.250-20 x .875) | 2 | ||||||
| 12 | 11-826709109 | NUT (.250-28) | 1 | 11-35045 | |||||
| 13 | 12-39143 | WASHER | 1 | ||||||
| 14 | 16-63335 | STUD | 1 | This Part is No Longer Available | |||||
| 15 | 12-69056 | WASHER | 2 | 12-21631 | |||||
| 16 | 23-31866 | SPACER | 1 | ||||||
| 17 | 11-8267089 | NUT (.250-28) | 1 | 11-20361 |
