575 SCi - Serial 0L601000 Thru 0L602090 - Exhaust Header (Design II) Straight-1.125 Inch Water Outlet

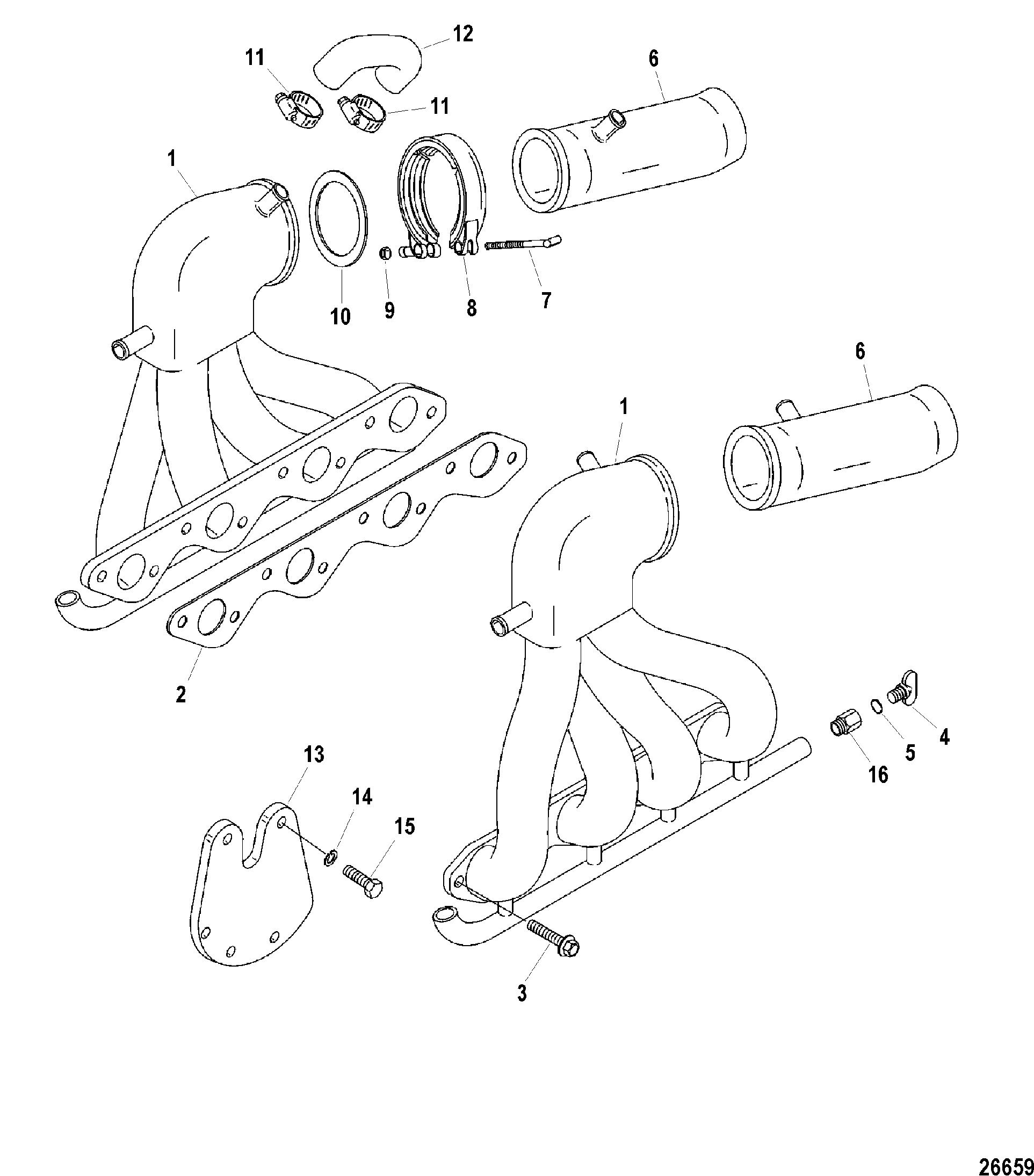

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 845233T1 | HEADER ASSEMBLY, Exhaust - Port | 1 | ||||||
| 1 | 845234T1 | HEADER ASSEMBLY, Exhaust - Starboard | 1 | ||||||
| 2 | 27-841234 | GASKET, Exhaust Header | 2 | 2 | |||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | ||||||
| 4 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue, Drain | 1 | 22-806608A1 | |||||
| 5 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| 6 | 8M0053624 | TAILPIPE ASSEMBLY, Port | 1 | 845235A1 | Bravo Models | ||||
| 6 | 845236A1 | TAILPIPE ASSEMBLY, Starboard | 1 | Bravo Models | |||||
| 7 | 10-848886 | T BOLT, (.250-20) | 2 | ||||||
| 8 | 54-848885 | CLAMP, Band Style | 2 | ||||||
| 9 | 11-8267098 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 10 | 27-848254 | GASKET, Tailpipe | 2 | 2 | |||||
| 11 | 54-180763 | CLAMP, Worm Gear | 4 | ||||||
| 12 | 32-8424181 | HOSE, Molded | 2 | 32-842418 | |||||
| 13 | 861776A2 | PLATE KIT, Exhaust Blockoff | 1 | ||||||
| 14 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 15 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 16 | 22-842437 | BUSHING, Drain Plug | AR | ||||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
