662 SCi - Serial 0M962886 and Up - Electrical Components (Engine Harness)

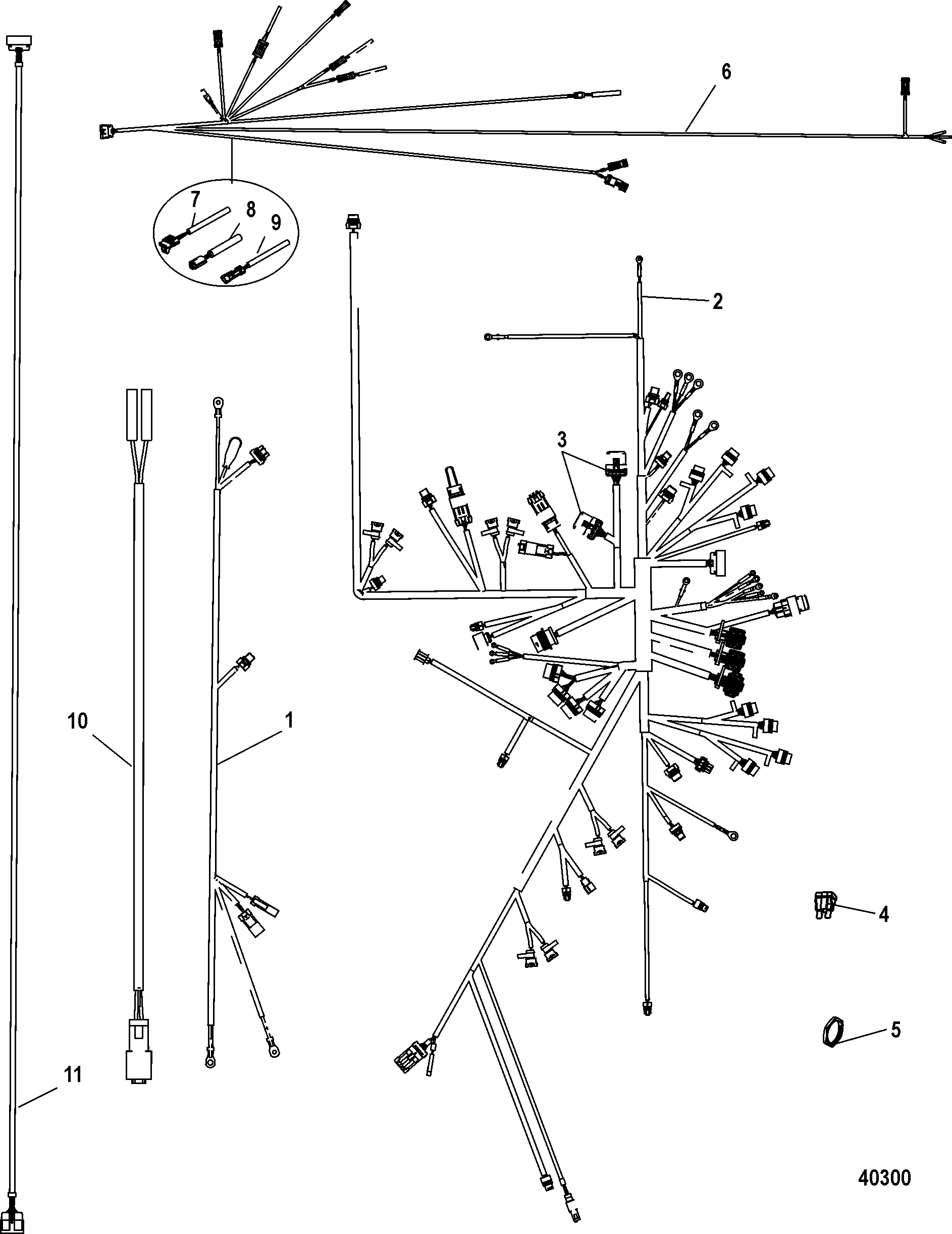

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 895341T04



HARNESS ASSEMBLY, Fuel Pump/Alternator 1

2 895008T04



HARNESS ASSEMBLY, Engine 1

3 858754



COVER, Fuse 2

4 88-832969T05



FUSE, Mini - Tan - 5 Ampere 2 88-8329695
4 88-83296915



FUSE, Mini - Blue - 15 Ampere 2

4 88-832969T20



FUSE, Mini - Yellow - 20 Ampere 3 88-83296920
4 88-832969T25



FUSE, Mini - Clear - 25 Ampere 1 88-83296925
5 11-889664



NUT, (1.500-18) Black Nylon 1

6 842018T03



HARNESS ASSEMBLY, Transom 1

7 879346T27



RESISTOR CAP, 4 POS 220 KOH 1
(Steering Position Indicator)
8 879346T28



RESISTOR CAP, 4 POS 220 KOH 1
(K-Plane Position Indicator)
9 879346T29



RESISTOR CAP, 2 POS 20 OHM 1
(Fuel Level Sender)
10 842018T04



HARNESS ASSEMBLY, Adaptor Oil Lube 1

11 842018T06



HARNESS ASSEMBLY, Extension 1
