850 SCi - Serial 0M957579 Thru 0M962885 - Electrical Components (Wiring)

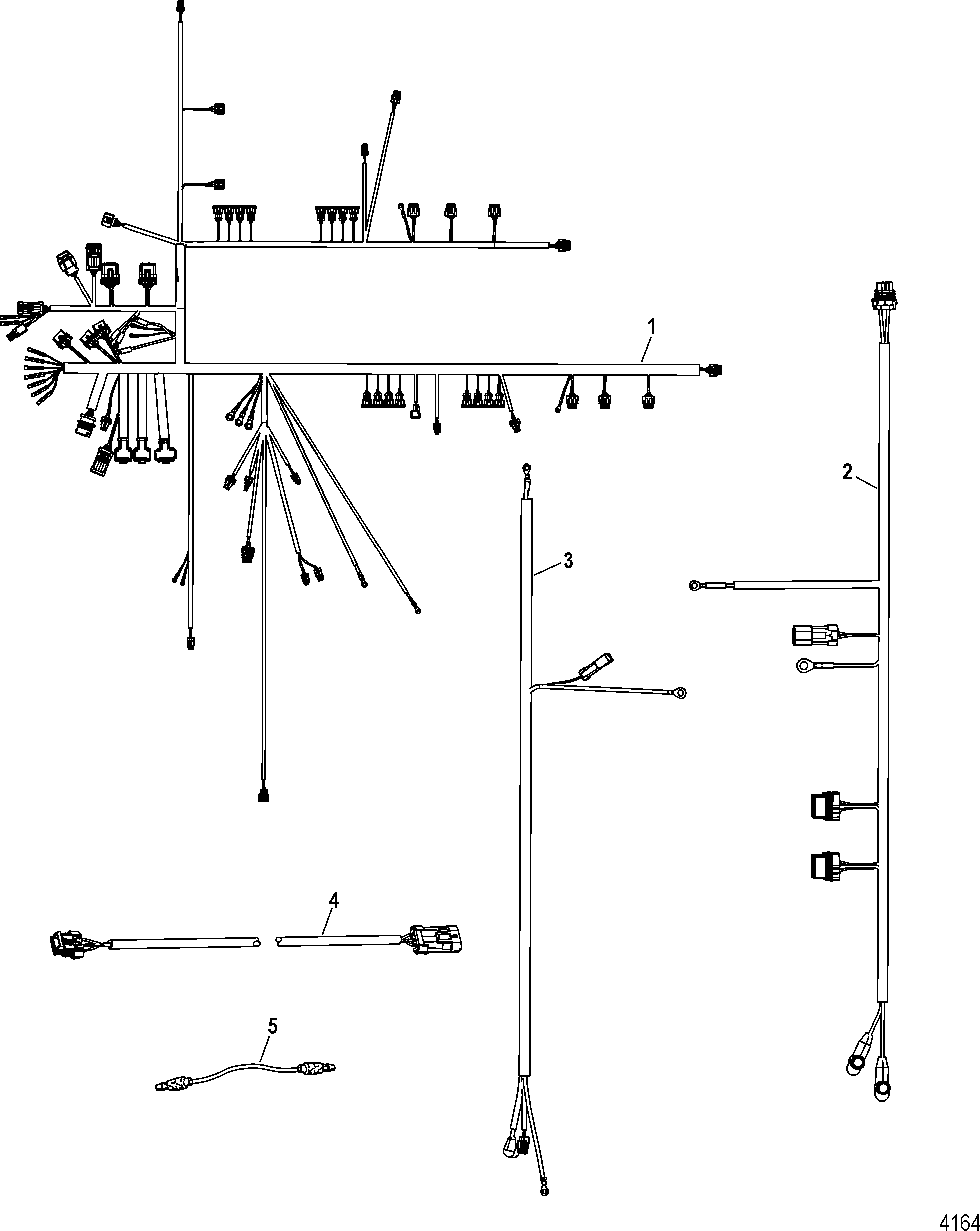

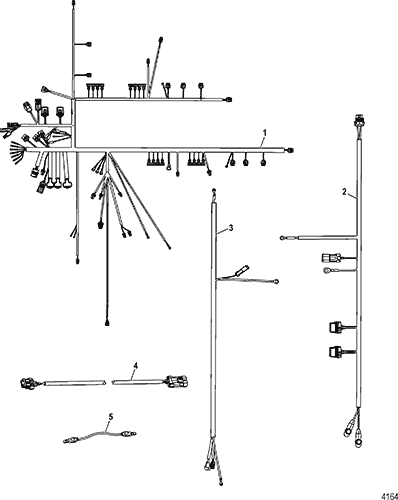

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt) (0M957579 Thru 0M959367)
- Engine Components (Drive Belt) (0M959368 And Up)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M8025210 | HARNESS ASSEMBLY, Engine | 1 | 84-884570A03 | |||||
| - | 858754 | COVER, Fuse | 2 | ||||||
| - | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 2 | 88-8329695 | |||||
| - | 88-83296915 | FUSE, Mini - Blue - 15 Ampere | 3 | ||||||
| - | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 2 | 84-896236A03 | HARNESS ASSEMBLY, Fuel Pump Relays | 1 | 84-896236A02 | |||||
| 3 | 84-884318A1 | HARNESS ASSEMBLY, Alternator Adaptor | 1 | ||||||
| 4 | 84-843203A04 | HARNESS ASSEMBLY, Extension, Trim Indicator | 1 | 84-843203A03 | Driveline Models | ||||
| 5 | 84-11149A52 | CABLE ASSEMBLY, Adaptor - Yellow | 1 |
