420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)

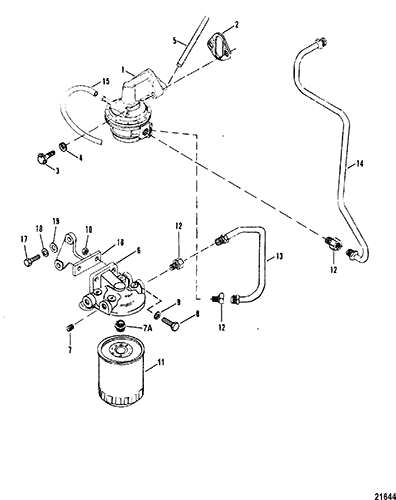

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 862048A1         PUMP ASSEMBLY, Fuel 1 812454A3
2 27-34213         GASKET 1
2
3 10-34354         SCREW, (.375-16 x 1.50) 2

4 13-35048         LOCKWASHER, (.375) 2

5 35377         ROD 1

6 89876A3         BASE ASSEMBLY, Fuel Filter/Water Seperator 1

7 22-36382     700-21887   FITTING, (.250-18 x .62) Brass, Style I - Slotted 3

7 22-32561         PLUG, Pipe - Allen Head (.250-18), Style II - Socket Head 3

7A 22-816133         FITTING 1 22-8161331
8 10-26066         SCREW, (.312-24 x 1.75) 2
No longer made, limited availability
9 12-20084         WASHER, (.328 x .562 x .062) 2

10 11-82670911         NUT, (.312-24) Stainless Steel 1 11-35814
11 35-802893Q01         FILTER 2 35-8052691
12 22-33821         CONNECTOR 3

13 32-96082         LINE, Fuel, Filter To Pump (AIRTEX #RD583A) 1 32-96082A1 This Part is No Longer Available
13 32-19037T         LINE, Fuel, Filter To Pump (CARTER #M60601) 1

14 32-15005         LINE, Fuel, Fuel Pump To Carburetor 1

15 32-9337070         TUBING, (48.00 Inches Bulk), Cut As Required 1   This Part is No Longer Available
16 96940T         BRACKET, Filter Assembly Mount 1   This Part is No Longer Available
17 10-37612         SCREW, (.375-16 x 1.250) 1

18 13-35048         LOCKWASHER, (.375) 1

19 12-20553         WASHER, (.406 x .734 x .063) 1

17 10-37612         SCREW, (.375-16 x 1.250) 1

17 10-47462         SCREW, (.437-14 x 1.250) 1

18 13-35048         LOCKWASHER, (.375) 1

18 13-32993         LOCKWASHER, (.437) 1

19 12-22248         WASHER, (.453 x .875 x .060) 1

19 12-20553         WASHER, (.406 x .734 x .063) 1
