425 GM 454 V8 1990-1992 - Serial 0A398941 Thru 0D937011 - Power Steering Components
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock

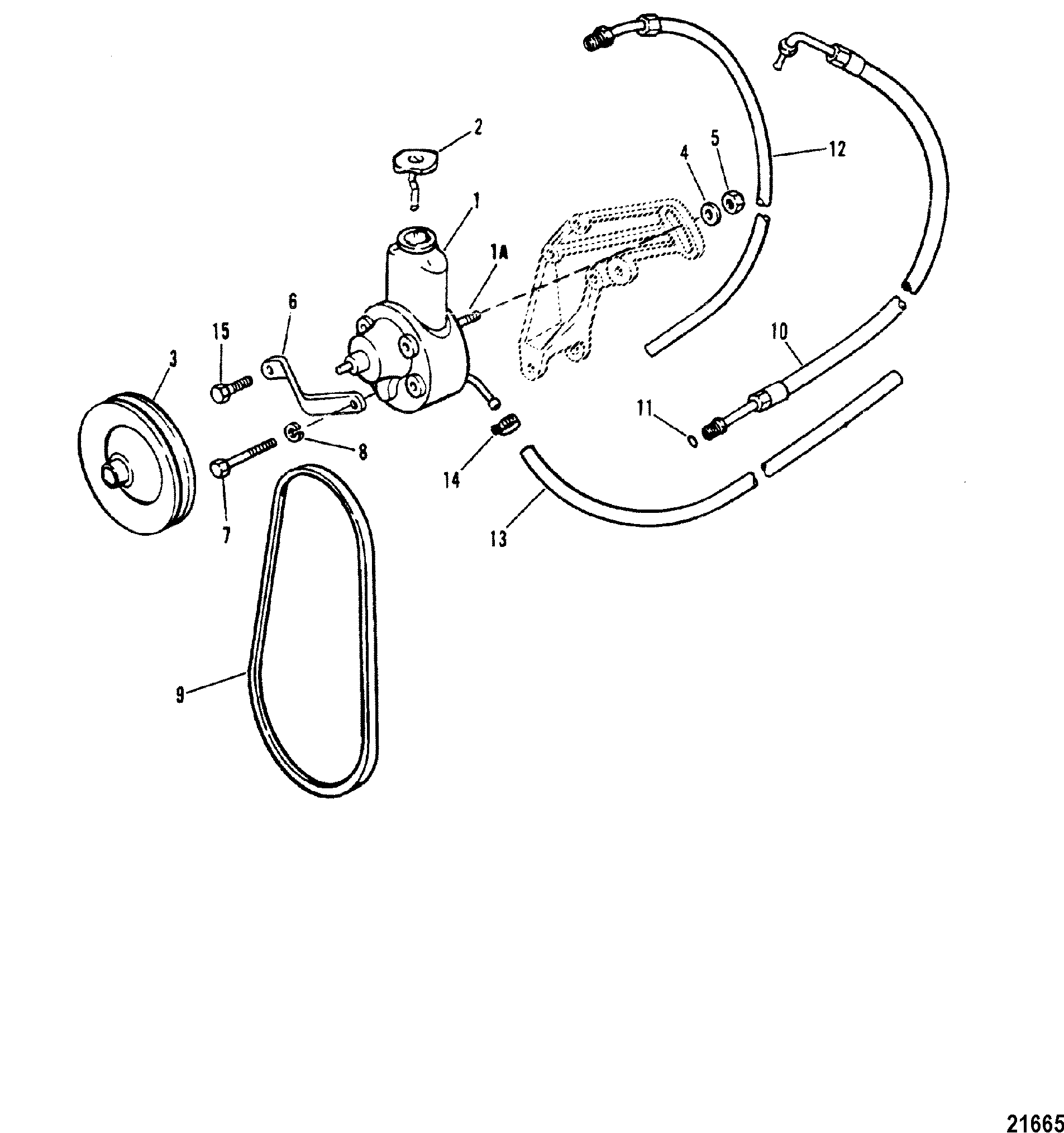

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
1 | 16792A39 | PUMP ASSEMBLY, Power Steering | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
1A | 16-41877 | STUD, (M10) | 1 | ||||||
2 | 36-95805 | CAP | 1 | ||||||
3 | 73873A1 | PULLEY | 1 | ||||||
4 | 12-34567 | WASHER, Brace Slot | 3 | ||||||
5 | 11-90517 | NUT, (M10) | 2 | ||||||
6 | 98813F1 | BRACE | 1 | 98813A1 | |||||
7 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
8 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
9 | 57-96834Q | V BELT | 1 | 57-96834T | SN# 0A398941 THRU 0D724499 | ||||
9 | 57-812427Q | V BELT | 1 | 57-812427T | SN# 0D725500 THRU 0D937011 | ||||
10 | 32-98494 | HOSE ASSEMBLY | 1 | ||||||
11 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
12 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), Fitting On One End - Cut As Required | 1 | ||||||
13 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut As Required | 1 | 32-5251914 | |||||
14 | 54-180761 | CLAMP, Worm Gear | 3 | ||||||
15 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 |
