7.4L Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F800700 Thru 0K999999 - Oil Reservoir Bottle And Bracket

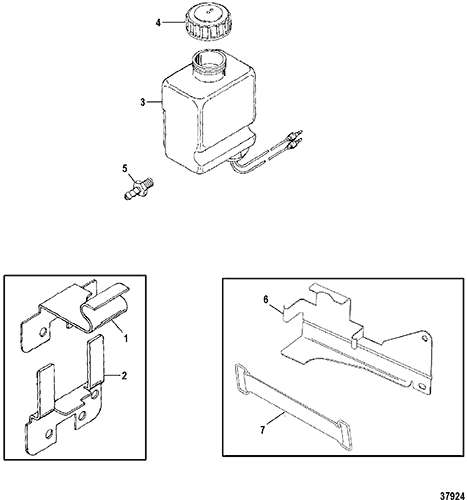

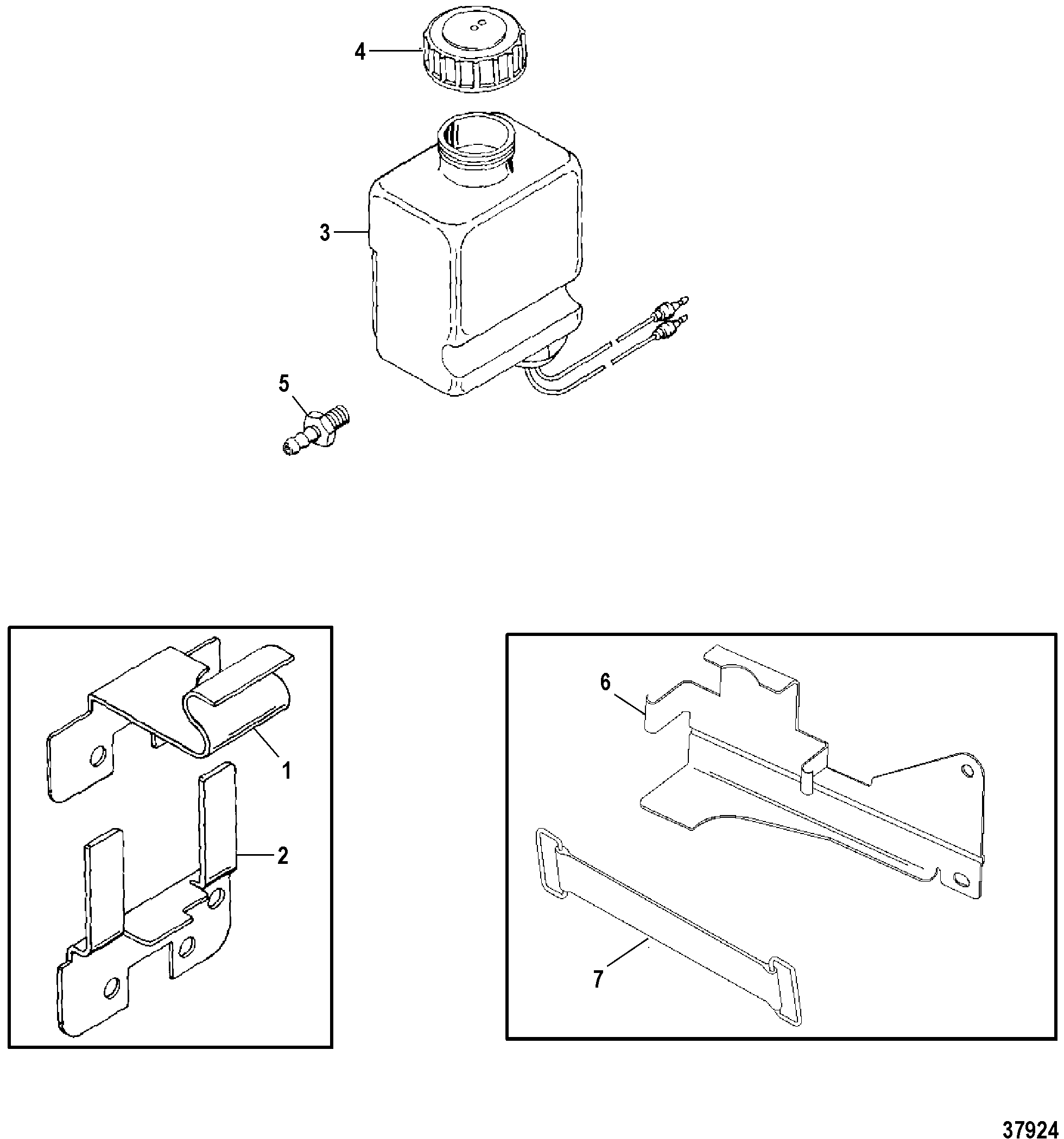

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Weber)
- Carburetor And Flame Arrestor
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (454 Magnum)
- Exhaust Manifold And Exhaust Elbow (7.4L Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806293T | BRACKET, Clip | 1 | DESIGN I | |||||
| 2 | 860065A1 | BRACKET | 1 | 807024T | DESIGN I | ||||
| 3 | 806193A51 | RESERVOIR ASSEMBLY, Oil | 1 | 806193A3 | |||||
| 4 | 36-8067271 | CAP, Drive Lube Monitor, Oil Bottle | 1 | 36-808625 | |||||
| 5 | 22-808624 | CONNECTOR | 1 | ||||||
| 6 | 807839T1 | BRACKET | 1 | 807839T | This Part is NLA from Mercruiser. ( DESIGN II) | ||||
| 7 | 808023T | 615-525-808023T | STRAP, Bracket | 1 | DESIGN II |
