150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio

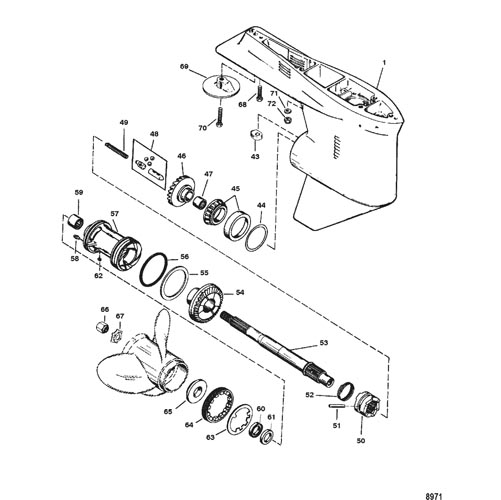

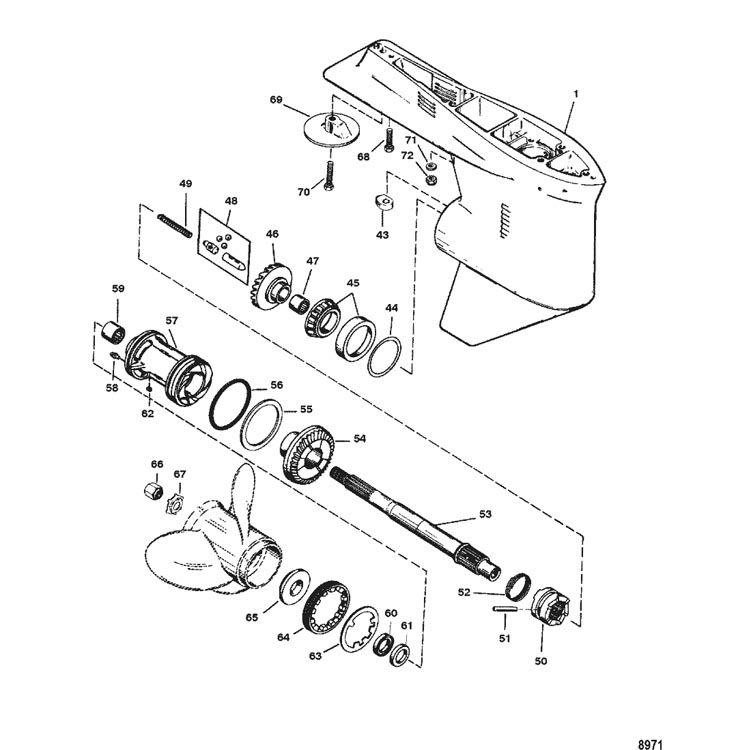

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1674-814247T3         GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black 1 814247A3 No Longer Available
- 1674-814247T3



GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray 1 814247A4 No Longer Available
1 1674-814247T1



GEAR HOUSING ASSEMBLY, Basic - Black 1 814247A1 No Longer Available
1 1674-814247T1



GEAR HOUSING ASSEMBLY, Basic - Gray 1  814247A2 No Longer Available
43 760394



CAM, Shift Control 1 76039
44 15-8M0063266



SHIM SET AR   No Longer Available
45 31-30894A1



BEARING SET, Cup And Cone 1
46 43-16279A2



GEAR ASSEMBLY, Forward 1
47 31-30895T



BEARING, Needle 1 30895
48 850315A1



FOLLOWER KIT, Cam 1 12239A1
49 24-30622



SPRING 1
50 52-822539T



CLUTCH 1 822539
51 17-8M0100263



PIN, Cross 1 30632
52 24-30893



SPRING 1
53 44-12238T



PROPELLER SHAFT 1
54 NSS



Reverse Gear (Part of 43-16279A2) 1   Not Sold Separate
55 12-76358



THRUST WASHER 1   No Longer Available
56 25-29976



O-RING 1
57 41529T2



CARRIER ASSEMBLY, Bearing 1 41529A2 No Longer Available
58 22-98727



FITTING, Grease 2
59 31-30956T



BEARING, Needle 1 30956
60 26-76868



SEAL (OUTSIDE) 1
61 26-14077



SEAL, Oil (INSIDE) 1
62 28-30281



KEY 1
63 14-52700



TAB WASHER 1
64 52699



COVER 1   No Longer Available
65 13191Q01



THRUST WASHER 1 13191A1
66 11-52707Q1



PROP NUT KIT, (.750-16) 1 52707A1
67 14-816629Q



TAB WASHER 1 816629
68 10-30206



SCREW, (.375-16 x 1.00) Stainless Steel 1
69 76214Q5



ANODE KIT 1 76214A5
70 10-66024



SCREW, (.437-14 x 1.75) 1
71 12-822836



WASHER, (.445 x .805 x .108) 2
72 11-859116



NUT, (.4375-20) 2 134391
- 26-89238A2



SEAL KIT 1
