135 VERADO 4-STROKE 4 CYL - Serial 1B517159 and Up - Accessories

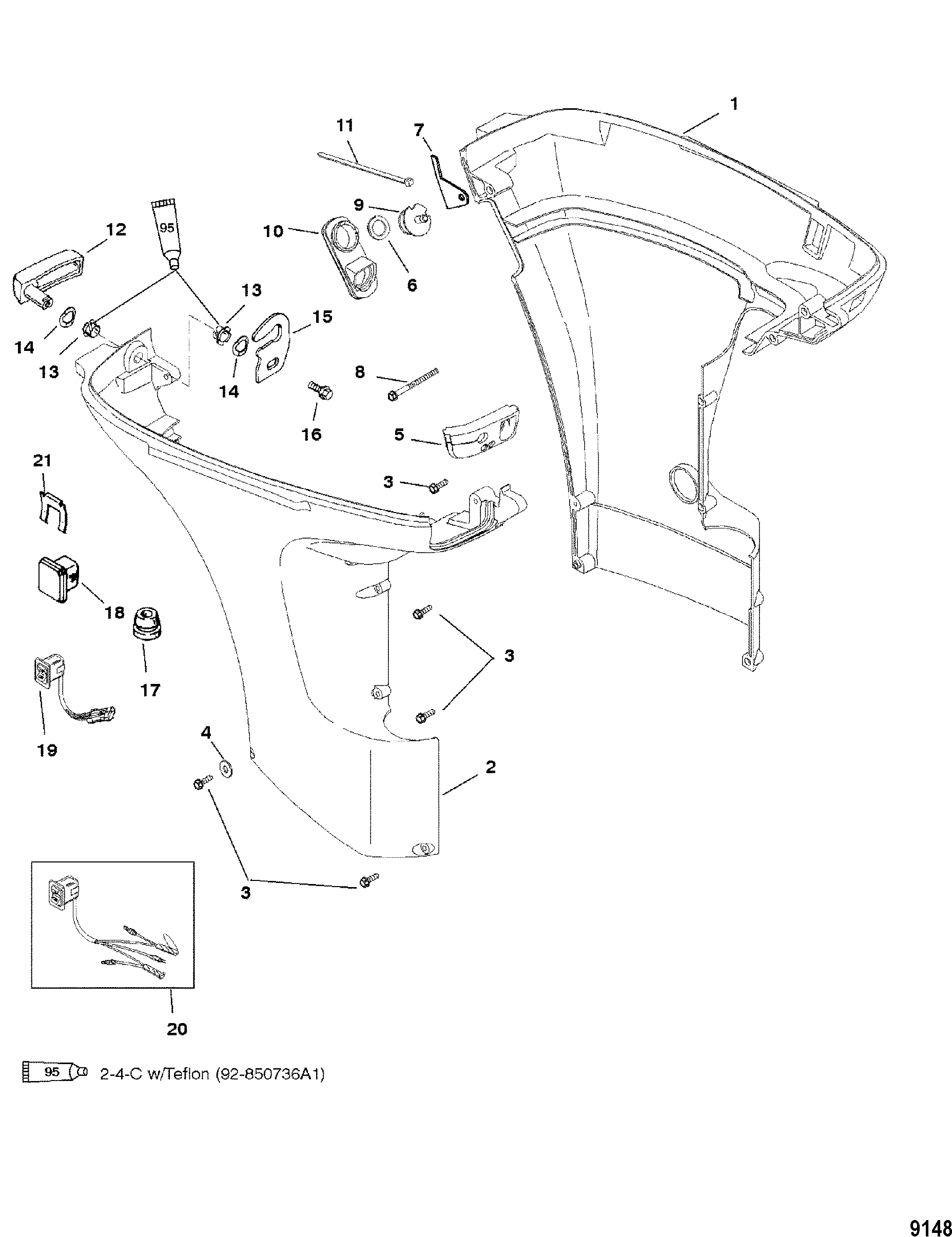

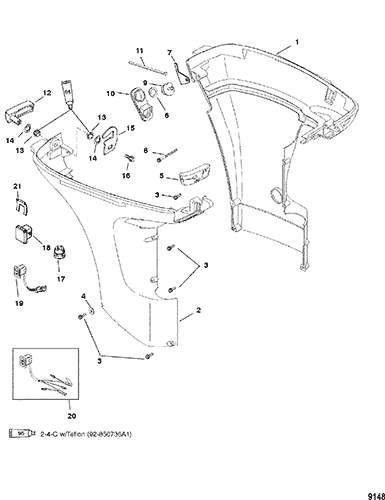

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 892486K08 | CONVERSION KIT, Analog | 1 | ||||||
| - | 84-899785K04 | HARNESS KIT, Accessory Power (30 Feet) | 1 | 889611K02 | |||||
| - | 88334A2 | MERCATHODE KIT | 1 | ||||||
| - | 32-825191A03 | HOSE KIT, Rigging | 1 | ||||||
| - | 10-880717A01 | SCREW/SEAL KIT, Gearcase | 1 | ||||||
| - | 84-88439A50 | CABLE SET, Battery | 1 | ||||||
| - | 44357Q2 | 676-9-41100 | FLUSHING ATTACHMENT | 1 | |||||
| - | 44357T2 | FLUSHING ATTACHMENT | 1 | ||||||
| - | 881150Q1 | FLUSH KIT, Dual Water Pick Up | 1 | ||||||
| - | 881150K1 | SEAL KIT, Flush - Dual Water Pickup | 1 |
