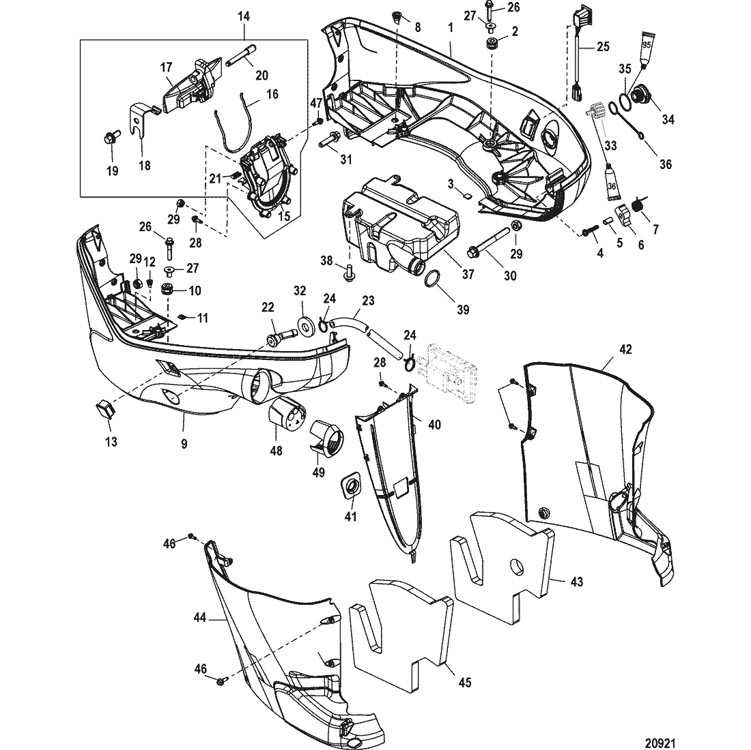

Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
- |
NSS |
|
|
|
|
Pan Assembly-Complete |
1 |
|
Not Sold Separate |
1 |
895846A08 |
|
|
|
|
PAN ASSEMBLY, Port |
1 |
895846T02 |
|
2 |
25-896671 |
|
|
|
|
GROMMET |
1 |
|
|
3 |
896865 |
|
|
|
|
SEAL, Front |
1 |
|
|
4 |
10-888950020 |
|
|
|
|
SCREW, (M4 x 20 mm) |
1 |
|
|
5 |
23-898408 |
|
|
|
|
SPACER |
1 |
|
|
6 |
898354 |
|
|
|
|
PAWL |
1 |
|
|
7 |
24-898353 |
|
|
|
|
SPRING |
1 |
|
|
8 |
888819002 |
|
|
|
|
DRAIN, Cowl |
1 |
|
|
9 |
895846A08 |
|
|
|
|
PAN ASSEMBLY, Starboard |
1 |
895847T02 |
|
10 |
25-896671 |
|
|
|
|
GROMMET |
1 |
|
|
11 |
896974 |
|
|
|
|
SEAL, Back |
1 |
|
|
12 |
888819002 |
|
|
|
|
DRAIN, Cowl |
1 |
|
|
13 |
19-897203 |
|
|
|
|
PLUG |
1 |
|
|
14 |
NSS |
|
|
|
|
Latch Assembly-Complete |
1 |
|
Not Sold Separate |
15 |
888448A03 |
|
|
|
|
PANEL ASSEMBLY, Access |
1 |
|
No Longer Available |
16 |
896927 |
|
|
|
|
SEAL |
1 |
|
|
17 |
896928A01 |
|
|
|
|
LEVER ASSEMBLY, Rail Latch |
1 |
|
|
18 |
24-896933 |
|
|
|
|
SPRING, Leaf |
1 |
|
No Longer Available |
19 |
10-88552514 |
|
|
|
|
SCREW, (M6 x 14) Stainless Steel |
1 |
|
|
20 |
17-896932 |
|
|
|
|
PIN, Lever |
1 |
|
|
21 |
898476 |
|
|
|
|
BUTTON, Latch |
1 |
|
No Longer Available |
22 |
22-895797001 |
|
|
|
|
FITTING |
1 |
895797 |
|
23 |
32-8M0108355 |
|
|
|
|
HOSE, (57.00 Inches Bulk) (Cut to 21 Inches) |
1 |
830756109 |
|
24 |
54-895851 |
|
|
|
|
CLAMP, (8.00 Inches) |
2 |
|
|
25 |
87-8M0042300 |
|
|
|
|
SWITCH, Trim |
1 |
896620001 |
|
26 |
10-897964 |
|
|
|
|
SCREW, (M6) |
2 |
|
|
27 |
23-8M8023048 |
|
|
|
|
BUSHING |
2 |
896670001 |
|
28 |
10-892073002 |
|
|
|
|
SHOULDER SCREW, (M6) |
6 |
|
|
29 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
4 |
|
|
30 |
10-897657055 |
|
|
|
|
SCREW, (M6 x 55) |
1 |
|
|
31 |
10-897657025 |
|
|
|
|
SCREW, (M6 x 25) |
1 |
|
|
32 |
23-892427 |
|
|
|
|
SPACER |
1 |
|
|
33 |
22-885361A01 |
|
|
|
|
FITTING ASSEMBLY, Flush |
1 |
|
|
34 |
22-888958001 |
|
|
|
|
PLUG |
1 |
|
|
35 |
25-888957 |
|
|
|
|
O-RING |
1 |
|
|
36 |
889823001 |
|
|
|
|
TETHER |
1 |
|
|
37 |
896925A01 |
|
|
|
|
PLENUM, Exhaust |
1 |
896925 |
|
37 |
896925A01 |
|
|
|
|
PLENUM KIT, Exhaust |
1 |
|
|
38 |
10-892073002 |
|
|
|
|
SHOULDER SCREW, (M6) |
2 |
|
|
38 |
10-4010620 |
|
|
|
|
SCREW, (M6 x 20) Stainless Steel |
2 |
|
|
39 |
25-889828 |
|
|
|
|
O-RING, (.924 x .103) |
1 |
|
|
40 |
896618A02 |
|
|
|
|
COVER ASSEMBLY, Rear |
1 |
|
|
41 |
896924 |
|
|
|
|
BOOT, Idle Exhaust |
1 |
|
|
- |
NSS |
|
|
|
|
Chap Assembly (Starboard and Port) |
1 |
|
Not Sold Separate |
42 |
897593T02 |
|
|
|
|
CHAP ASSEMBLY, Port |
1 |
|
No Longer Available |
43 |
897204 |
|
|
|
|
SOUND BLANKET, Starboard |
1 |
|
|
44 |
897593T02 |
|
|
|
|
CHAP ASSEMBLY, Starboard |
1 |
|
No Longer Available |
45 |
897205 |
|
|
|
|
SOUND BLANKET, Port |
1 |
|
|
46 |
10-892073002 |
|
|
|
|
SHOULDER SCREW, (M6) |
12 |
|
|
47 |
8M0005773 |
|
|
|
|
SCREW, (M6) |
2 |
|
|
48 |
25-897169 |
|
|
|
|
GROMMET |
1 |
|
|
49 |
8M0043519 |
|
|
|
|
ADAPTOR |
1 |
895316 |
|
