150 VERADO 4-STROKE 4 CYL - Serial 0P514869 and Up - Water Separator Filter Kit, 8M0046336

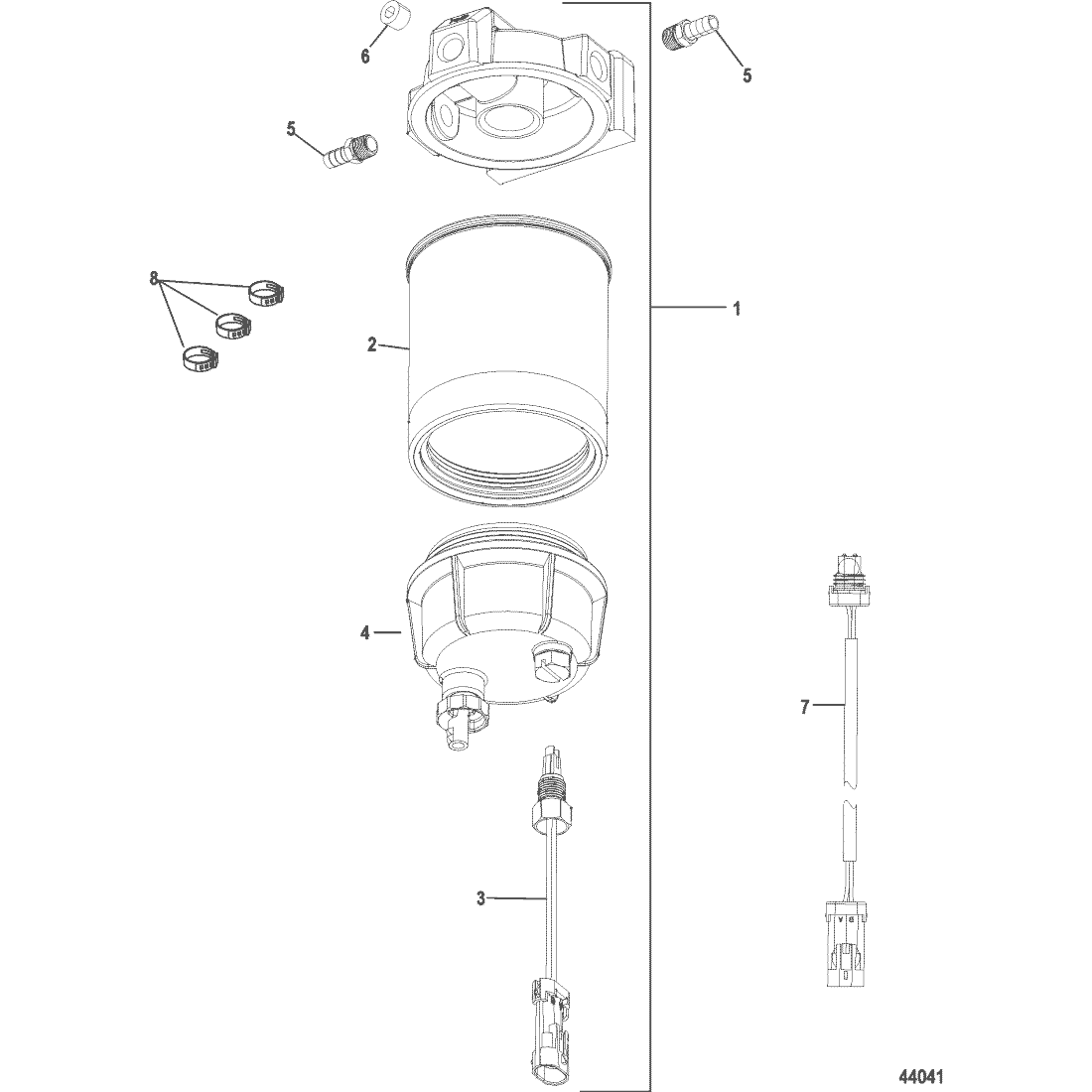

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Not Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 35-8M0046336 | FUEL FILTER KIT | 1 | ||||||
| 1 | 8M0022130 | SEPERATOR KIT, Fuel and Water | 1 | ||||||
| 2 | 35-886638 | ELEMENT, Fuel Filter | 1 | ||||||
| 3 | 8M0021043 | SENSOR ASSEMBLY, Fuel and Water | 1 | ||||||
| 4 | 8M0021044 | BOWL | 1 | ||||||
| 5 | 22-34982 | CONNECTOR | 2 | ||||||
| 6 | 22-73379 | PLUG, (.250-18) | 1 | ||||||
| 7 | 84-8M0042697 | HARNESS, Water Sensor | 1 | ||||||
| 8 | 54-855697 | CLAMP | 3 |
