| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

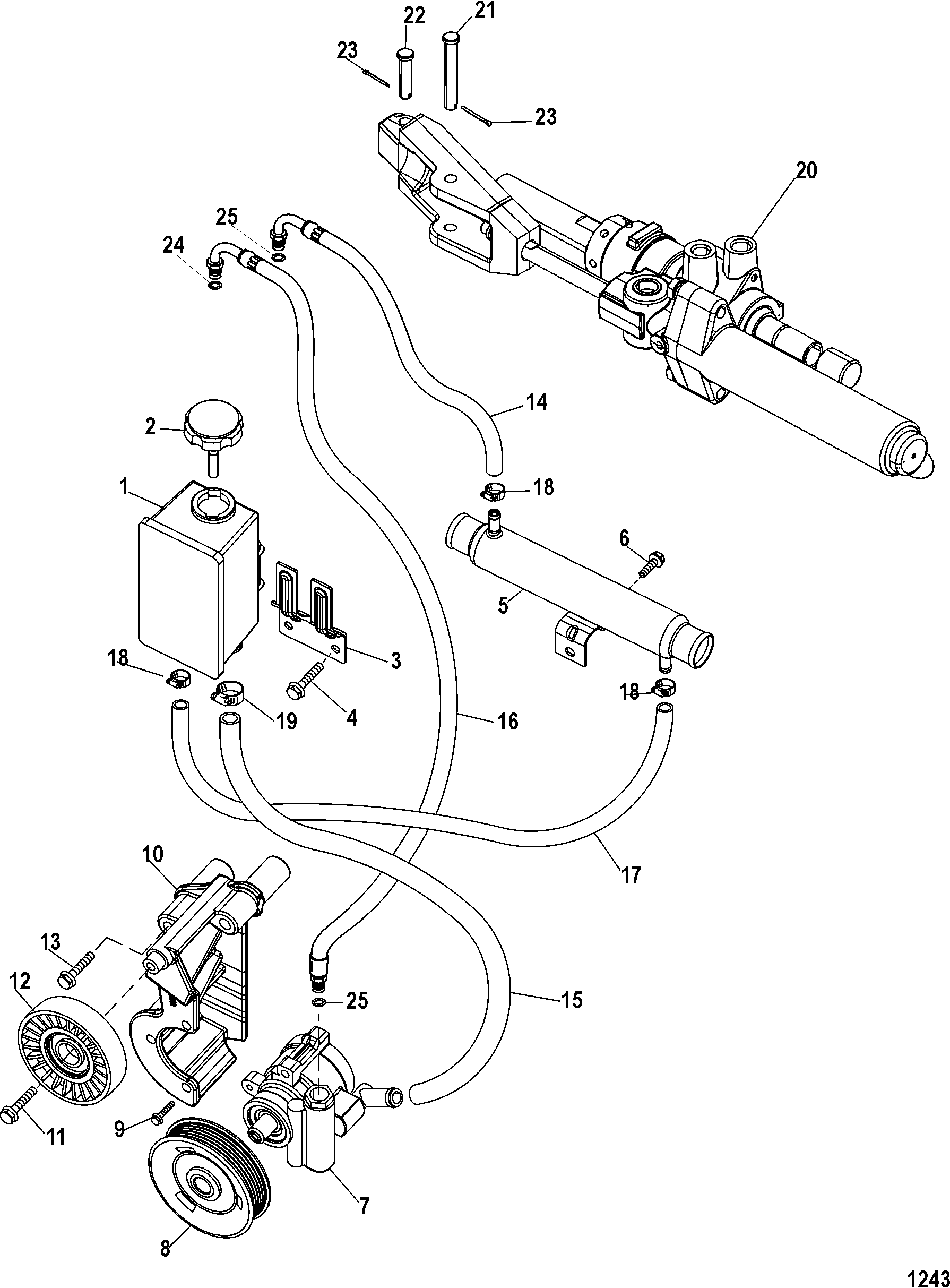

| 1 |
862752T1 |
|
|
|
|
RESERVOIR ASSEMBLY, Power Steering |
1 |
|
|
| 2 |
806216 |
|
|
|
|
CAP, Power Steering Reservoir Assembly |
1 |
|
|
| 3 |
863119 |
|
|
|
|
BRACKET, Power Steering Reservoir |
1 |
|
|
| 4 |
10-4000354 |
|
|
|
|
SCREW, (M8 x 30) |
2 |
|
|
| 5 |
861554T01 |
|
|
|
|
COOLER, Power Steering |
1 |
861554T |
|
| 6 |
10-816585 |
|
|
|
|
SCREW, (.375-18 x .875) |
1 |
|
Metal Cooler |
| 6 |
8M2016106 |
|
|
|
|
SCREW, (.312 x 1.25) |
1 |
|
Composite Cooler (Included with 861554T02) |
| 7 |
806230T |
|
|
|
|
PUMP, Power Steering |
1 |
|
|
| 8 |
862751 |
|
|
|
|
PULLEY, Power Steering |
1 |
|
|
| 9 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
3 |
|
|
| 10 |
863856T |
|
|
|
|
BRACKET, Power Steering Pump |
1 |
|
|
| 11 |
10-4010816 |
|
|
|
|
SCREW, (M10 x 16) Hex Flange - Stainless Steel |
1 |
|
|
| 12 |
8M6500024 |
|
|
|
|
PULLEY |
1 |
818382 |
|
| 13 |
10-8M0012503 |
|
|
|
|
SCREW, (M10 x 100) Hex Flange - Stainless Steel |
3 |
10-40108100 |
|
| 14 |
32-8062215 |
|
|
|
|
HOSE (Cylinder to Cooler) |
1 |
|
|
| 15 |
32-864229 |
|
|
|
|
HOSE (Pump to Reservoir) |
1 |
|
|
| 16 |
32-86131720 |
|
|
|
|
HOSE (Pump to Cylinder) |
1 |
|
|
| 17 |
32-5251914 |
|
|
|
|
HOSE, (53.00 Inches Bulk) (Reservoir to Cooler) |
1 |
|
(Cut to 48 In.) |
| 18 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm), Hose |
3 |
|
|
| 19 |
54-815504210 |
|
|
|
|
CLAMP, Worm Gear, Hose |
2 |
|
|
| 20 |
865383A02 |
|
|
|
|
ACTUATOR ASSEMBLY, Power Steering |
1 |
806034A1 |
|
| 21 |
17-15878 |
|
|
|
|
PIN, Clevis |
1 |
|
(Long) |
| 22 |
17-16419 |
|
|
|
|
PIN, Clevis |
1 |
|
(Short) |
| 23 |
18-46950 |
|
|
|
|
COTTER PIN, Cotter |
2 |
|
|
| 24 |
25-806232 |
|
|
|
|
O-RING, (.239 x .064) |
1 |
|
|
| 25 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
2 |
|
|
| NS |
19-8079921 |
|
|
|
|
COVER, Hose Clamp End |
AR |
|
no longer made, limited availability |
