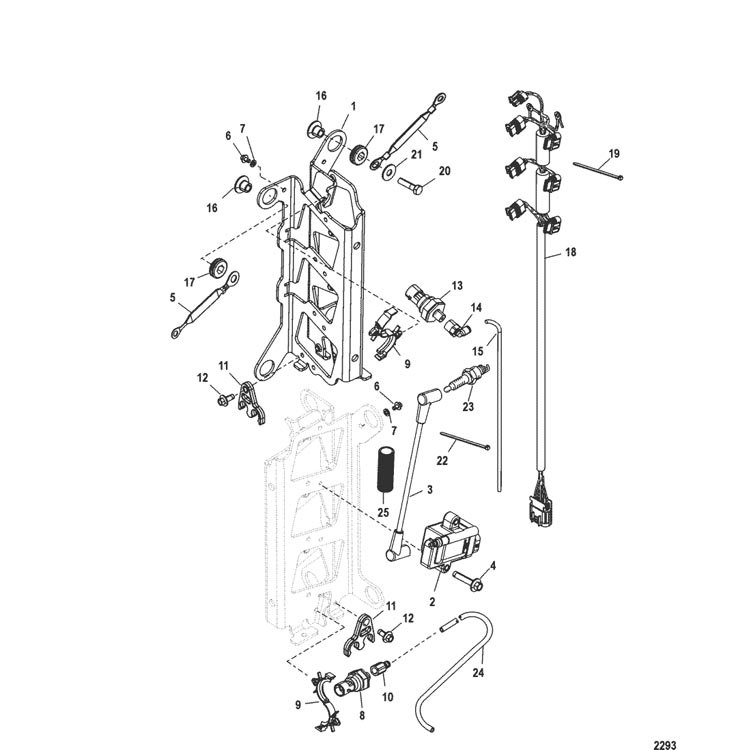

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 0 |
NSS |
|
|
|
|
Coil Plate Assembly |
1 |
|
Not Sold Separate |
| 1 |
843238T |
|
|
|
|
PLATE, Coil |
1 |
|
|
| 2 |
339-8M0077473 |
|
|
|
|
COIL ASSEMBLY, Ignition |
6 |
883778A01 |
|
| 3 |
84-884442A02 |
|
|
|
|
HIGH TENSION LEADS |
1 |
|
|
| 4 |
10-82129130 |
|
|
|
|
SCREW, (M6 x 30) |
12 |
|
|
| 5 |
84-858414A1 |
|
|
|
|
CABLE ASSEMBLY, Braided |
2 |
|
|
| 6 |
10-82129110 |
|
|
|
|
SCREW, (M6 x 10) |
2 |
|
|
| 7 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 8 |
881879A5 |
|
|
|
|
SENSOR, Speedometer (0-200 PSI) |
1 |
|
|
| 0 |
NSS |
|
|
|
|
Decal-Sensor (0-200 PSIA) |
1 |
|
Not Sold Separate |
| 9 |
54-883066 |
|
|
|
|
CLIP, (.865) (22MM) |
2 |
|
|
| 10 |
22-892403 |
|
|
|
|
FITTING |
1 |
|
|
| 11 |
54-891525 |
|
|
|
|
CLIP, Double |
2 |
|
|
| 12 |
10-82129114 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 13 |
881879A7 |
|
|
|
|
SENSOR KIT, (0-50 PSI) |
1 |
|
|
| 0 |
NSS |
|
|
|
|
Decal-Sensor (0-50 PSIA) |
1 |
|
Not Sold Separate |
| 14 |
22-891533 |
|
|
|
|
FITTING (90 Degree) |
1 |
|
|
| 15 |
32-85978571 |
|
|
|
|
TUBING, (52.00 Inches Bulk) (Cut to 15-1/2 Inches) |
1 |
|
|
| 16 |
23-8502341 |
|
|
|
|
BUSHING |
4 |
|
|
| 17 |
25-833155 |
|
|
|
|
GROMMET |
4 |
|
|
| 18 |
84-888445A01 |
|
|
|
|
HARNESS ASSEMBLY, Coil |
1 |
|
|
| 19 |
54-847509 |
|
|
|
|
TIE STRAP, (7.50 Inches) |
2 |
|
|
| 20 |
10-60411 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 21 |
12-49436 |
|
|
|
|
WASHER |
4 |
|
|
| 22 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 23 |
33-843220Q |
|
|
|
|
SPARK PLUG |
6 |
843220001 |
|
| 24 |
32-85944975 |
|
|
|
|
TUBING, (72.00 Inches Bulk) (Cut to 52 Inches) |
1 |
|
|
| 25 |
32-828547353 |
|
|
|
|
CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) |
1 |
|
|
