| Ref. |
OEM Part # |
SEI # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

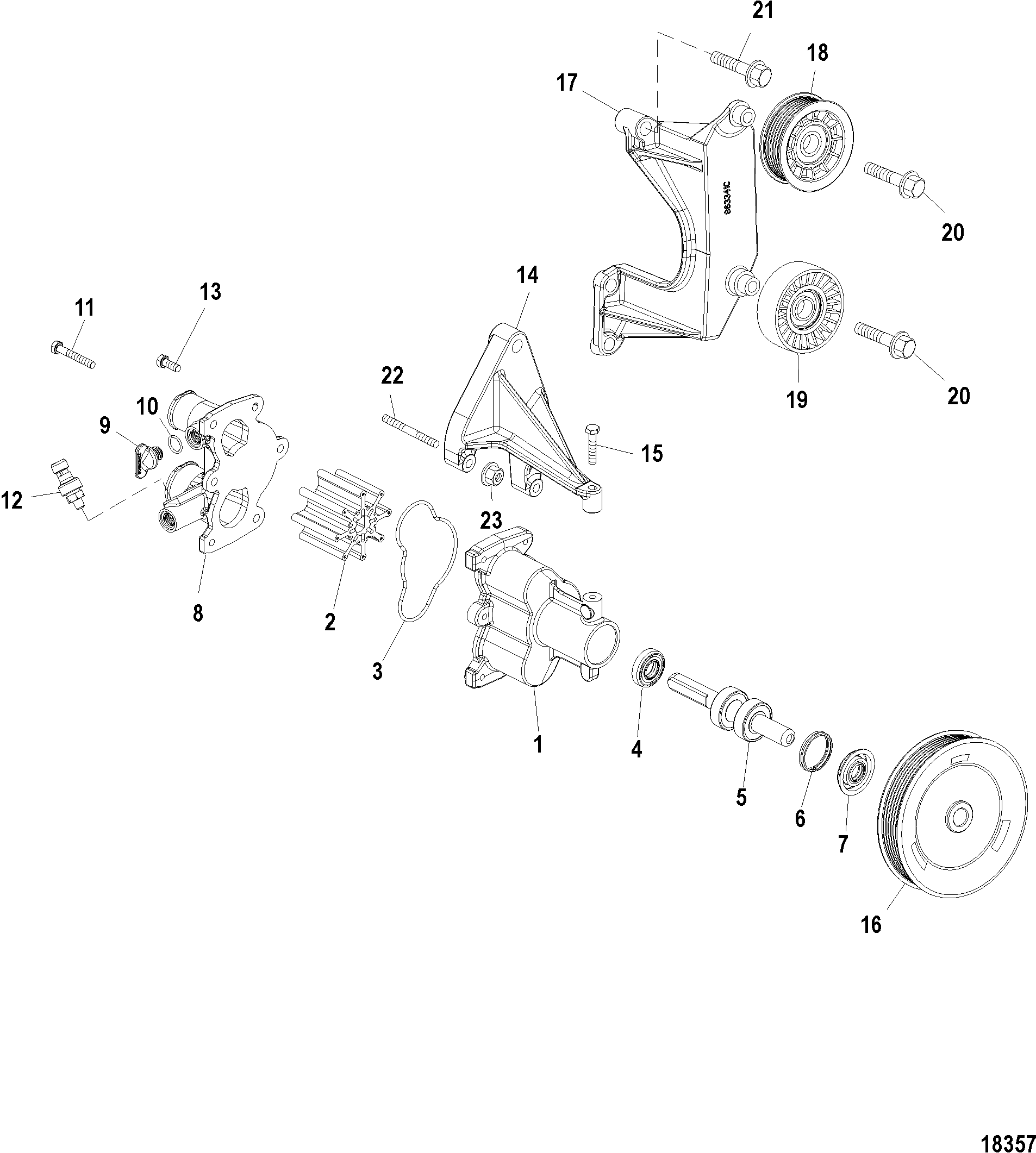

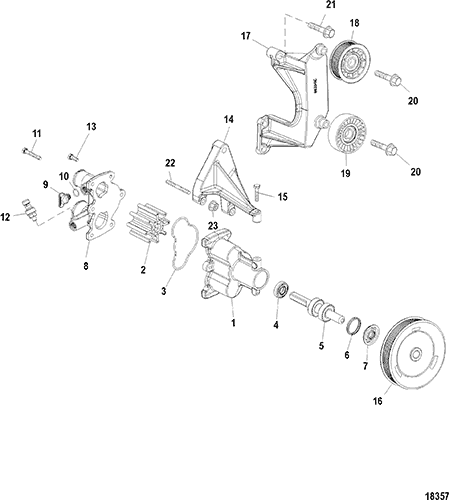

46-862914T08 |
|
|
|
625-4102 |
PUMP ASSEMBLY, Sea Water |
1 |
|
Pump ONLY - pulley, sensor, bracket not included !! |
| 1 |
46-862914A13 |
|
|
|
|
HOUSING ASSEMBLY, Impeller |
1 |
|
|
| 2 |
47-8M0104229 |
|
676-9-45310 |
700-89700 |
|
IMPELLER |
1 |
|
|
| 3 |
25-841807 |
|
|
|
|
O-RING, (3.500 x .103) (Also included with Reference 8) |
1 |
|
|
| 4 |
26-8M2001645 |
|
|
|
|
SEAL, Oil |
1 |
26-862037 |
|
| 5 |
8M0050018 |
|
|
|
|
DRIVESHAFT ASSEMBLY, Impeller |
1 |
862235A1 |
|
| 6 |
862039 |
|
|
|
|
TOLERANCE RING |
1 |
|
|
| 7 |
26-862040 |
|
|
|
|
SEAL, Lip |
1 |
|
|
| 8 |
862776A02 |
|
|
|
|
COVER KIT, Impeller Housing |
1 |
|
|
| 9 |
22-806608A02 |
|
|
700-13992 |
|
PLUG KIT, (.500-13) Royal Blue, Drain |
2 |
22-806608A1 |
|
| 10 |
25-32509 |
|
|
|
|
O-RING, (.489 x .070) |
2 |
|
2,3 |
| 11 |
10-4000328 |
|
|
|
|
SCREW, (M6 x 16) |
6 |
|
|
| 12 |
881879T11 |
|
|
|
|
SENSOR, (0 - 100 PSI), Water Pressure |
1 |
881879A6 |
|
| 13 |
10-4000333 |
602-98-206-02 |
|
|
|
SCREW, (M6 x 40) |
2 |
|
|
| 14 |
863859T |
|
|
|
|
BRACKET, Sea Water Pump |
1 |
|
|
| 15 |
10-4000331 |
|
|
|
|
SCREW, (M6 x 30) |
1 |
|
|
| 16 |
862351T |
|
|
|
|
PULLEY |
1 |
|
|
| 17 |
863861T |
|
|
|
|
BRACKET, Idler Pulley |
1 |
|
No longer made, limited availability |
| 18 |
865444T |
|
|
|
|
PULLEY, (3.50 Inch Diameter), Idler |
1 |
|
(Grooved) |
| 19 |
8M6500024 |
|
|
|
|
PULLEY, Idler |
1 |
818382 |
(Non-Grooved) |
| 20 |
10-4010816 |
|
|
|
|
SCREW, (M10 x 16) Hex Flange - Stainless Steel |
2 |
|
|
| 21 |
10-4010845 |
|
|
|
|
SCREW, (M10 x 45) Hex Flange - Stainless Steel |
1 |
|
|
| 22 |
16-854309 |
|
|
|
|
STUD, (M10 x 76) |
2 |
|
|
| 23 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
2 |
|
|
