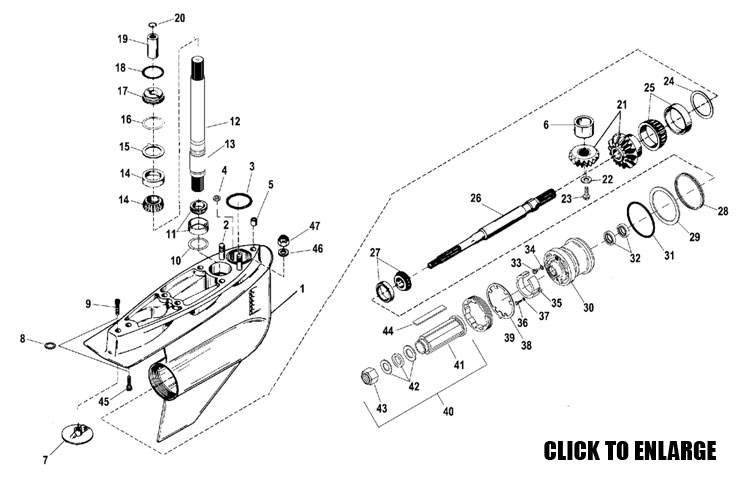

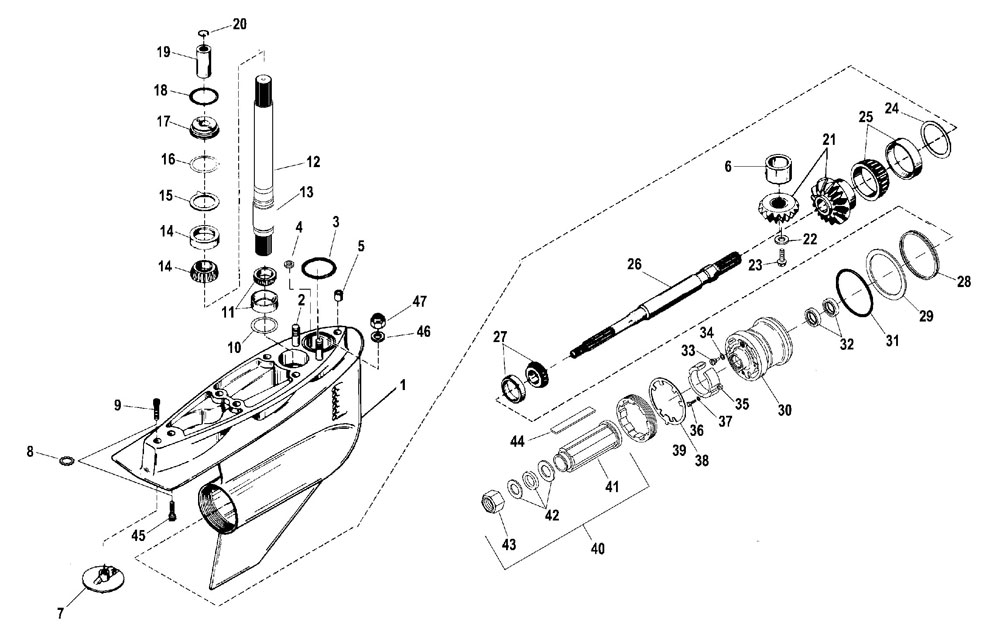

Mercruiser-Bravo One XR Gear Housing
Mercruiser- Bravo One XR Gear Housing
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. | Original P/N |
|---|---|---|---|---|
|
*
|
Gear Housing Assembly Complete
(Bravo One Std)
|
1
|
525-1656-8866A60
|
|
|
*
|
Gear Housing Assembly Complete
(Bravo One w/ Low Water Pickup)
|
1
|
|
|
|
*
|
Gear Housing Assembly Complete
(Bravo One w/ Dual Water Pickup)
|
1
|
|
|
|
1
|
Gear Housing Assembly (Bravo One Std)
|
1
|
525-1656-8866A17
|
|
|
1
|
Gear Housing Assembly
(Bravo One w/ Low Water Pickup)
|
1
|
|
|
|
1
|
Gear Housing Assembly
(Bravo One w/ Dual Water Pickup)
|
1
|
|
|
|
2
|
Stud (.437-14/.437-20 x 2.060)
|
2
|
|
|
|
3
|
O-Ring @5
|
1
|
|
|
|
4
|
Seal @3
|
1
|
|
|
|
5
|
Seal (.625 O.D.)
|
1
|
|
|
|
6
|
Roller Bearing Assembly
|
1
|
|
|
|
7
|
Anodic Plate Assembly
|
1
|
|
|
|
8
|
Lockwasher (.437)
|
1
|
|
|
|
9
|
Screw(.437-14 x 1.750)
|
1
|
|
|
|
10
|
Shim Set
|
AR
|
|
|
|
11
|
Tapered Roller Bearing Assembly
|
1
|
525-31-66668A1
|
|
|
12
|
Driveshaft Assembly (16.085 Long)
|
1
|
|
|
|
13
|
Bearing
|
1
|
|
|
|
14
|
Tapered Roller Bearing Assembly
|
1
|
|
|
|
15
|
Tab Washer
|
1
|
|
|
|
16
|
Shim Set
|
AR
|
|
|
|
17
|
Spacer
|
1
|
525-23-92916
|
|
|
18
|
O-Ring (2.230 x .139)
|
1
|
|
|
|
19
|
Coupling Assembly
|
1
|
|
|
|
20
|
Ring-Retaining
|
1
|
|
|
|
21
|
Gear Set (15/19)
|
1
|
|
|
|
21
|
Gear Set-15/17
|
1
|
|
|
|
21
|
Gear Set-17/18
|
1
|
|
|
|
22
|
Washer
|
1
|
|
|
|
23
|
Screw (.375-16 x 1.00)
|
1
|
|
|
|
24
|
Shim Set
|
AR
|
|
|
|
25
|
Tapered Roller Bearing Assembly
|
1
|
|
|
|
26
|
Propeller Shaft
|
1
|
|
|
|
27
|
Tapered Roller Bearing Assembly
|
1
|
|
|
|
28
|
Load Ring
|
1
|
|
|
|
29
|
Thrust Washer (.105” Thick)
|
1
|
|
|
|
30
|
Bearing, Carrier Assembly
|
1
|
|
|
|
31
|
O-Ring @4
|
1
|
|
|
|
32
|
Oil Seal
|
2
|
|
|
|
33
|
Screw Kit @2
|
1
|
525-22-67892A1
|
|
|
34
|
Seal-Blue @15
|
1
|
525-12-191832
|
|
|
35
|
Anode Assembly @2
|
1
|
525-806188A1
|
|
|
36
|
Screw (#10-32 x .625)
|
2
|
|
|
|
37
|
Lockwasher (#10 External)
|
2
|
|
|
|
38
|
Tab Washer, Keyed
|
1
|
|
|
|
39
|
Retainer, Bearing Carrier
|
1
|
525-79448
|
|
|
40
|
Propeller Hub Assembly
|
1
|
525-840389A5
|
|
|
41
|
Propeller Hub
|
1
|
NSS
|
|
|
42
|
Washer/Nut Kit
|
1
|
525-12-840383A1
|
|
|
43
|
Nut Kit, Propeller
|
1
|
|
|
|
44
|
Snubber Strip Kit
|
1
|
|
|
|
45
|
Screw (.437-14 x 1.500)
|
1
|
|
|
|
46
|
Washer (.453 x .750 x .032)
|
2
|
|
|
|
47
|
Nut (.437-20)
|
2
|
|
|
|
NS
|
Seal Kit, Gear Housing
|
AR
|
525-26-815565A1
|
|
|
NS
|
Anode Kit, Aluminum
|
AR
|
525-888758A1
|
|
|
NS
|
Anode Kit, Magnesium
|
AR
|
525-888757A1
|
|
