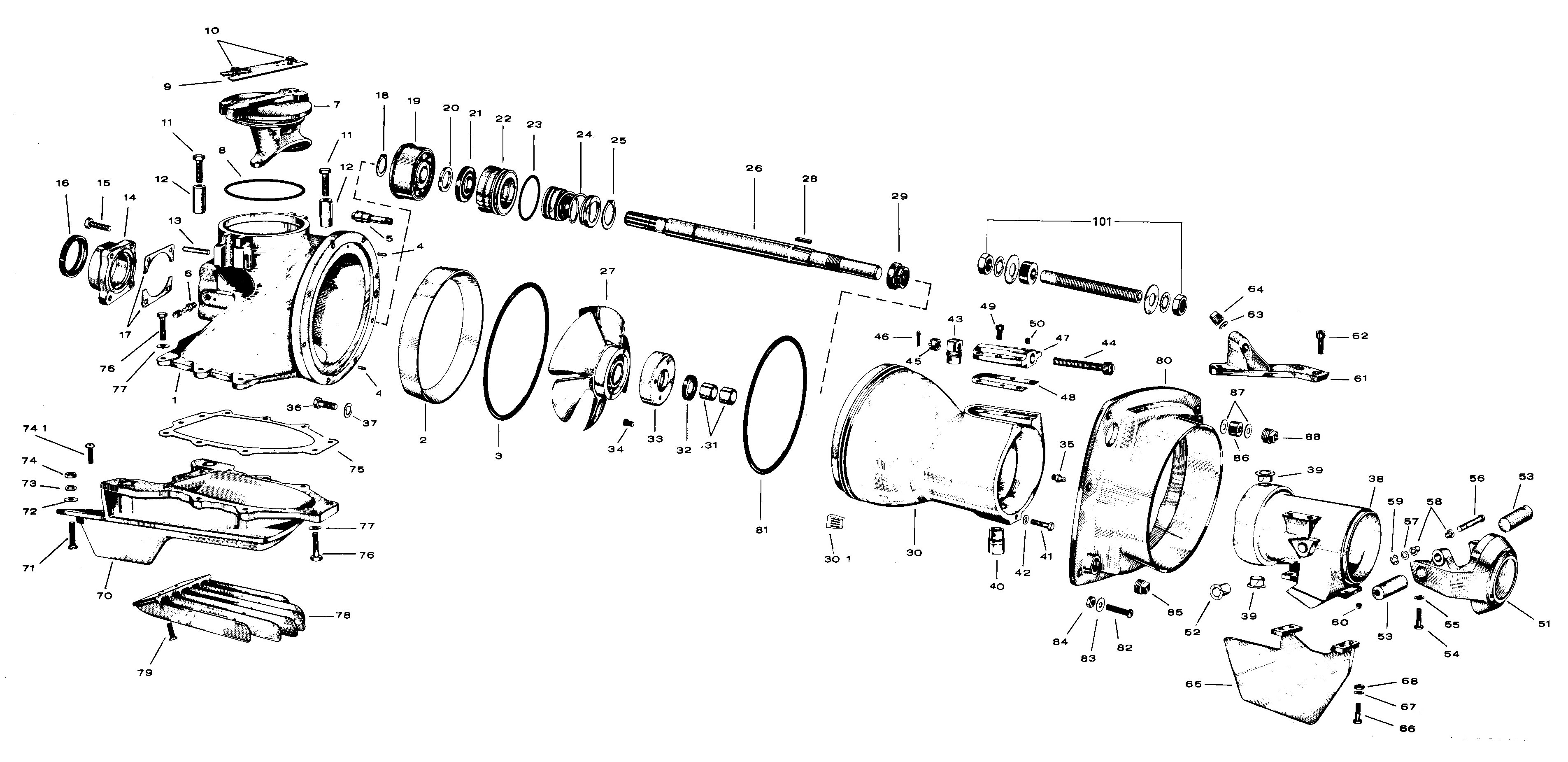

| Sym. |
Per Unit |
Description |
Part No. |
| 1 |
1 |
Suction Piece No. 4990 |
160-04-1857-08 |
| 2 |
1 |
Wear Plate No. 5533 |
160-08-2243-13 |
| 3 |
1 |
Wear Plate O-ring |
160-47-0178-01 |
| 4 |
2 |
Wear Plate Dowel Pin |
160-14-1773-07
|
| 5 |
1 |
Auxiliary Water Outlet Plug Assembly |
160-23-1558-07
|
| 6 |
1 |
Thrust Bearing Grease Fitting |
160-23-0562-03
|
| 7 |
1 |
Inspection Cap No. 4993 |
160-51-0184-06 |
| 8 |
1 |
Inspection Cap O-ring |
160-47-0258-04 |
| 9 |
1 |
Inspection Cap Lock Wrench |
160-22-1810-02
|
| 10 |
2 |
Lock Wrench Nylatch Assembly |
160-23-1418-07 |
| 11 |
2 |
Hold Down Bolt |
160-14-0734-07
|
| 12 |
2 |
Inspection Cap Swivel Block |
160-51-0201-05 |
| 13 |
2 |
Swivel Block Spring Pin |
160-14-0802-04
|
| 14 |
1 |
Bearing Cap No. 4910 |
160-08-2399-07 |
| 15 |
4 |
Bearing Cap Bolts |
160-14-1295-14 |
| 16 |
1 |
Bearing Cap Lip Seal |
160-10-1320-09
|
| 17 |
Opt. |
Impeller Adjustment Shims Effective .010 Movement |
160-14-0829-70
|
| 17.1 |
Opt. |
Impeller Adjustment Shims Effective .005 Movement |
160-14-1903-70
|
| 18 |
1 |
Thrust Bearing Retaining Ring |
160-14-0767-07 |
| 19 |
1 |
Thrust Bearing |
160-08-2202-12 |
| 20 |
1 |
Thrust Bearing Washer |
160-14-1762-00
|
| 21 |
1 |
Seal Housing Lip Seal |
160-10-1345-00 |
| 22 |
1 |
Seal Housing |
160-10-1042-06 |
| 23 |
2 |
Seal Housing O-ring |
160-47-0232-05 |
| 24 |
1 |
Mechanical Seal |
160-10-1043-05 |
| 25 |
1 |
Mechanical Seal Retaining Ring |
160-14-0801-05
|
| 26 |
1 |
Impeller Shaft |
160-07-5756-08
|
| 27.1 |
1 |
Impeller "B" Cut No. 4906 |
160-05-3224-09 |
| 27.2 |
1 |
Impeller "C" Cut No. 4906 |
160-05-3225-08 |
| 27.3 |
1 |
Impeller "D" Cut No. 4906 |
160-05-3226-07 |
| 27.4 |
1 |
Impeller "E" Cut No. 4906 |
160-05-3227-06 |
| 27.5 |
1 |
Impeller "F" Cut No. 4906 |
160-05-3228-05 |
| 27.6 |
1 |
Impeller "G" Cut No. 4906 |
160-05-3229-04 |
| 27.7 |
1 |
Impeller "H" Cut No. 4906 |
160-05-3230-01 |
| 27.8 |
1 |
Impeller "I" Cut No. 5617 |
160-05-3231-00 |
| 27.9 |
1 |
Impeller "J" Cut No. 5617 |
160-05-3232-09 |
| 27.10 |
1 |
Impeller "K" Cut No 5617 |
160-05-3346-02 |
| 28 |
1 |
Impeller Key |
160-23-1403-04 |
| 29 |
1 |
Impeller Nut |
160-23-1491-07
|
| 30 |
1 |
Bowl No. 4905 |
160-04-1856-09 |
| 30.1 |
2 |
Water Strainer |
160-22-1884-03 |
| 31 |
2 |
Bowl Bearing |
160-23-1423-00
|
| 32 |
1 |
Bowl Bearing Lip Seal |
160-10-1260-19 |
| 33 |
1 |
Bowl Wear Ring |
160-08-2244-04
|
| 33.1 |
1 |
Cooling Outlet Plug |
160-31-0557-00 |
| 34 |
4 |
Bowl Wear Ring Bolts |
160-14-1490-17
|
| 35 |
1 |
Bowl Grease Fitting |
160-23-0560-13
|
| 36 |
8 |
Bowl Bolts |
160-14-0731-00 |
| 37 |
8 |
Lock Washer |
160-14-0722-01 |
| 38 |
1 |
Deflector No. 4997 |
160-52-7014-12 |
| 39 |
2 |
Deflector Nyliner Bearings |
160-08-2245-03 |
| 40 |
1 |
Deflector Bottom Pivot Pin |
160-51-0203-03
|
| 41 |
1 |
Bottom Pivot Pin Retaining Bolt |
160-14-1269-16
|
| 42 |
1 |
Lock Tab |
160-14-1895-00
|
| 43 |
1 |
Deflector Bottom Pivot Pin |
160-51-0203-03 |
| 44 |
1 |
Trim Screw |
160-14-0809-07
|
| 45 |
1 |
Trim Screw Nut |
160-14-0803-03 |
| 46 |
1 |
Trim Screw Nut Cotter Pin |
160-14-0712-03 |
| 47 |
1 |
Trim Cap No. 5426 |
160-51-0208-08 |
| 48 |
1 |
Trim Cap Gasket |
160-13-0370-07
|
| 49 |
6 |
Trim Cap Bolts |
160-14-1772-08 |
| 50 |
1 |
Trim Set Screw |
160-14-0717-08
|
| 51 |
1 |
Reverse Gate (Pull to open) 5509 |
160-52-0313-09
|
| 52 |
2 |
Reverse Gate Nyliner Berarings |
160-08-2196-02 |
| 53 |
2 |
Reverse Gate Pivot Pin |
160-52-0280-08 |
| 54 |
2 |
Pivot Pin Retaining Bolts |
160-14-1268-09 |
| 55 |
2 |
Lock Tab |
160-14-1895-00 |
| 56 |
1 |
Reverse Gate Cable Pin |
160-52-0293-03 |
| 57 |
1 |
Cable Pin Flat Washer |
160-23-1503-03 |
| 58 |
2 |
Cable Pin Nyliner Bearing |
160-08-2298-09
|
| 59 |
1 |
Cable Pin Retaining Ring |
160-14-1504-11 |
| 60 |
1 |
Cable Lock Nut |
160-14-0797-01
|
| 61 |
1 |
Tiller Arm (Pull to open) No. 5573 |
160-52-0310-02 |
| 62 |
2 |
Tiller Arm Bolts |
160-14-0737-12
|
| 63 |
1 |
Cable Retainer C-Washer |
160-23-1502-04
|
| 64 |
1 |
Cable Retainer Plug |
160-22-1995-09 |
| 65 |
1 |
Rudder No. 4975 |
160-52-0290-06 |
| 66 |
4 |
Rudder Bolts |
160-14-1268-09 |
| 67 |
4 |
Lock Washer |
160-14-0721-02 |
| 68 |
4 |
Nut |
160-14-0725-08 |
| 69 |
|
Bottom Pivot Washer |
160-14-1856-07 |
| 70 |
1 |
Grill Housing Contour No. 4992 |
160-51-0182-08 |
| 70.1 |
1 |
Grill Housing Flat No. 4991 |
160-51-0185-05 |
| 70.2 |
1 |
Grill Housing Deep Vee No.5525 |
160-51-0289-00 |
| 71 |
8 |
Grill Housing Machine Screws |
160-14-1713-00 |
| 72 |
8 |
Flat Washers |
160-14-0756-00
|
| 73 |
8 |
Lock Washers |
160-14-1416-18 |
| 74 |
8 |
Nut |
160-14-0726-07 |
| 74.1 |
4 |
Grill Housing Leveling Screws |
160-14-1399-50
|
| 75 |
1 |
Suction Piece Gasket |
160-13-0884-06 |
| 76 |
10 |
Suction Piece Bolts |
160-14-0731-00
|
| 77 |
10 |
Lock Washer |
160-14-0722-01 |
| 78 |
1 |
Grill Insert Standard No. 5452 |
160-51-0250-05
|
| 78.1 |
1 |
Grill Insert Deep Vee No. 5638 |
160-51-0290-07
|
| 79 |
4 |
Grill Insert Machine Screw |
160-51-0290-07 |
| 80 |
1 |
Transom Adapter 120 No. 4995 |
160-52-0275-05
|
| 80.1 |
1 |
Transom Adapter 20 No. 4995 |
160-52-0287-01 |
| 81 |
1 |
Transom Adapter O-ring |
160-47-0451-09 |
| 82 |
6 |
Transom Adapter Machine Screws |
160-14-1844-02 |
| 83 |
6 |
Flat Washer |
160-14-0756-00 |
| 84 |
6 |
Nut |
160-14-0726-07 |
| 85 |
1 |
Drain Plug 1/2" NPT |
160-31-0061-82 |
| 86 |
1 |
Cable Sealing Gland |
160-23-1504-02 |
| 87 |
2 |
Flat Washer |
160-23-1503-03 |
| 88 |
1 |
Cable Lock Plug |
160-22-1995-09 |
| 94 |
1 |
Engine Bracket (For Chevrolet, Ford 460 or Oldsmobile) |
160-51-0261-02 |
| 94 |
1 |
Engine Bracket (For Chevrolet, Ford 460 or Oldsmobile) |
160-51-0261-02 |
| 94.1 |
1 |
Engine Bracket (For Ford or Chrysler) |
160-51-0262-01 |
| 95 |
2 |
Engine Bracket Rubber Mount |
160-23-0557-00 |
| 96 |
2 |
Engine Bracket Nut |
160-14-1843-03 |
| 97 |
2 |
Engine Bracket Washer |
160-14-0187-09 |
| 98 |
2 |
Engine Bracket Lockwasher |
160-14-0723-00 |
| 99 |
2 |
Engine Bracket Capscrew |
160-14-1539-02 |
| 100 |
1 |
Short Coupling Chevy |
160-23-1489-01 |
| 100.1 |
1 |
Short Coupling Olds |
160-23-1490-08 |
| 100.2 |
1 |
Short Coupling Ford 460 |
160-23-1519-05 |
| 101 102 |
1 |
Steering Tube |
160-51-0431-07 |
| 102.1 |
6 |
Sock Cap Ford 460 |
160-14-0805-01 |
