350 PRO VERADO 4-Stroke 6 CYL - Serial 2B141124 and Up - Adaptor Plate-Lower

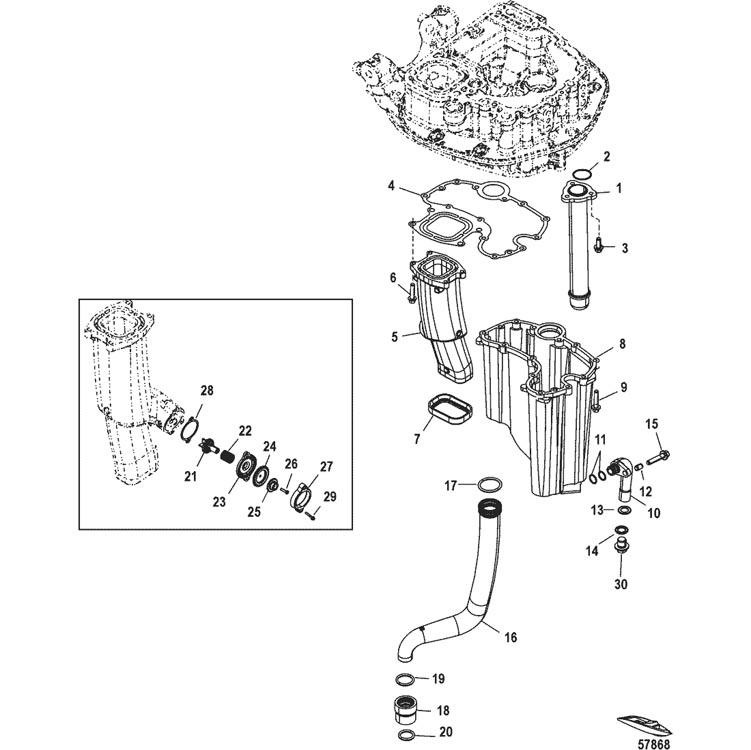

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 887623T03         PICKUP ASSEMBLY, Oil 1
2 25-8M0092943         O-RING, Orange 1
3 10-88552525         SCREW, (M6 x 25 MM) Stainless Steel 3
4 27-889618001         GASKET, Oil Sump 1
5 8M0080961         TUBE ASSEMBLY, Exhaust 1
6 10-88552635         SCREW, (M8 x 35 MM) 4
7 26-880629         SEAL, Exhaust Tube 1
8 880639T         SUMP ASSEMBLY, Oil 1
9 10-88552530         SCREW, (M6 x 30 MM) Stainless Steel 12
10 887753A02         TUBE ASSEMBLY, Oil Drain 1
10 8M0082193         TUBE ASSEMBLY, Oil Drain 1
11 25-892446         O-RING, (14 X 1.78 MM) 2
12 17-892228         PIN, Dowel 1
13 25-8M0079733         O-RING 1
14 26-888593         SEAL, Drain Plug 1
15 10-88552530         SCREW, (M6 x 30 MM) Stainless Steel 1
16 32-885541A01         TUBE ASSEMBLY, Water (20.00 Inch) 1
16 32-885541A02         TUBE ASSEMBLY, Water (25.00 Inch) 1
16 32-885541A03         TUBE ASSEMBLY, Water (30.00 Inch) 1
17 25-892445         O-RING 1
18 22-887987A1         COUPLING 1
19 25-90196         O-RING, (.921 x .139) 1
20 25-21836         O-RING, (.796 x .139) 1
21 888913A01         POPPET ASSEMBLY 1
22 24-64878         SPRING, (Black) 1
23 893385001         RETAINER 1
24 648771         DIAPHRAGM 1
25 889706         WASHER 1
26 10-69570         SCREW, (#10-16 x .750) 1
27 893384001         COVER, Poppet 1
28 27-889561         GASKET, Poppet 1
29 10-88552535         SCREW, (M6 x 35 MM) Stainless Steel 2
30 888592005         PLUG ASSEMBLY, Oil Drain 1
- 27-880552A07         GASKET SET, Powerhead 1
- 61-896966A07         ASSEMBLY, Long Block 1
