350 PRO VERADO 4-Stroke 6 CYL - Serial 2B141124 and Up - Gear Housing,, Driveshaft, 5.44 Torpedo

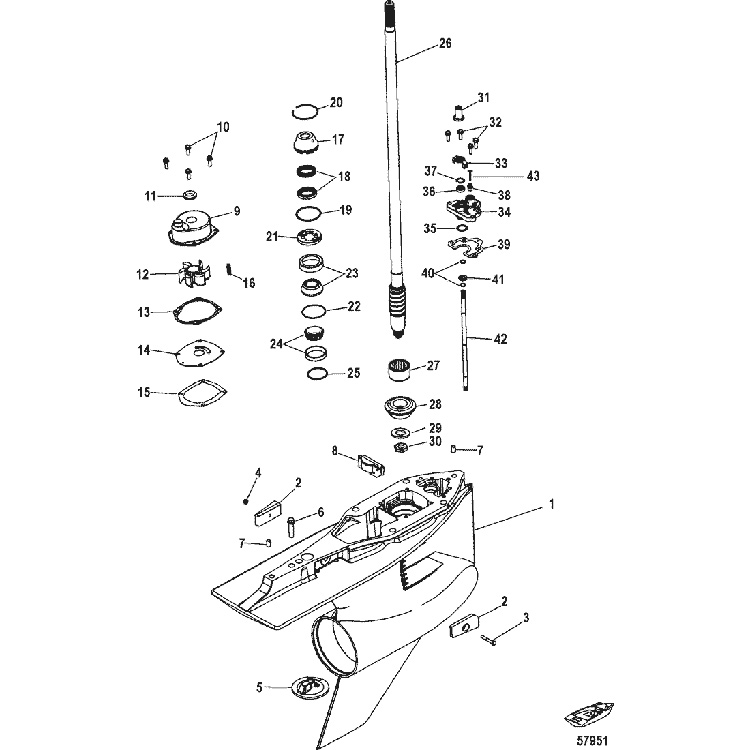

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-8M0078246         GEAR HOUSING ASSEMBLY, Complete, Black (Standard Long)(1.85:1) 1
- 1600-8M0089983         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.85:1) 1
- 1600-8M0117253         GEAR HOUSING ASSEMBLY, Complete, Black (Standard X-Long)(1.85:1) 1 8M0078247
- 1600-8M0117241         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.85:1) 1 8M0089985
- 1600-8M0117255         GEAR HOUSING ASSEMBLY, Complete, Black (Standard XX-Long)(1.85:1) 1 8M0078249
- 1600-8M0089987         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.85:1) 1
- 1600-8M0078251         GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation-Long)(1.85:1) 1
- 1600-8M0089984         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.85:1) 1
- 1600-8M0117254         GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation X-Long)(1.85:1) 1 8M0078248
- 1600-8M0117242         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.85:1) 1 8M0089986
- 1600-8M0117256         GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation XX-Long)(1.85:1) 1
- 1600-8M0089988         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.85:1) 1
- 1600-8M0102480         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.75:1) 1
- 1600-8M0102481         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.75:1) 1
- 1600-8M0117247         GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.75:1) 1 8M0102482
- 1600-8M0102483         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.75:1) 1
- 1600-8M0117249         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.75:1) 1 8M0102484
- 1600-8M0102485         GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.75:1) 1
1 1600-8M0117258         GEAR HOUSING ASSEMBLY, Basic, Black 1 8M0053108
1 1600-8M0117251         GEAR HOUSING ASSEMBLY, Basic, Silver 1 8M0053107
2 97-826134Q         ANODE 2
3 10-4000333         SCREW, (M6 x 40) 1
4 11-401386         NUT, (M6) Stainless Steel 1
5 97-76214Q5         ANODE KIT 1
6 10-806327         SCREW, (.437-14 x 1.750) 1
7 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
8 8M0010459         FILLER BLOCK 1
9 817275A1         HOUSING KIT, Water Pump 1
10 10-1993720         SCREW, (M6 x 20) 4
- 47-8M0057717         IMPELLER REPAIR KIT 1 No Longer Available
11 26-8M2014338         SEAL, Face 1
12 47-43026Q02         IMPELLER 1
13 27-8172771         GASKET 1
14 8172761         FACEPLATE 1
15 27-8M0050720         GASKET 1
16 28-8M0032833         KEY 1
17 8M0046297         OIL SEAL ASSEMBLY 1
18 NSS         SEAL 2 NOT SOLD SEPARATE
19 25-896523         O-RING, (2.175 x .103) 1
20 53-880719         RING, Retaining 1
21 8245191         RETAINER 1
22 15-8M0063267         SHIM SET 1
23 31-36387A1         BEARING ASSEMBLY, Roller/Cup 1
24 31-48939A2         BEARING, Tapered Roller 1
25 15-8M0063268         SHIM SET 1
26 45-8M0103301         SHAFT, Drive, Long 1
26 45-8M0103303         SHAFT, Drive, X-Long 1
26 45-8M0103304         SHAFT, Drive, XX-Long 1
27 31-8M0045676         BEARING, Roller 1
28 43-8M0078259         GEAR SET, 13/24(1.85:1), Forward and Pinion 1
28 43-8M0078258         GEAR SET, 12/21(1.75:1), Forward and Pinion 1
28 43-8M0053119         GEAR SET, 13/24 (1.85:1), Forward and Pinion 1
28 43-8M0053120         GEAR SET, 12/21 (1.75:1), Forward and Pinion 1
29 12-8M0062703         WASHER, Pinon nut 1
30 11-8M0046636         NUT, Pinion 1
31 43585         COUPLING 1
32 10-1993720         SCREW, (M6 x 20) 1
33 8M0050809         GROMMET ASSEMBLY 1
34 8M0047129         COVER ASSEMBLY 1
35 25-896522         O-RING, (799 x .103) 1
36 26-8164641         SEAL, Oil 1
37 53-8M0046563         RETAINING RING 1
38 22-881866         FITTING 1
39 27-880729         GASKET 1
40 53-29641         E RING 2
41 8M0050602         MAGNET 1
42 8M0046104         SHIFT SHAFT 1
43 22-859732         PLUG 1
- 8M0065064         SEAL KIT, Gearcase 1
- 8M0078858         WATER PUMP REPAIR KIT, Complete 1
- 8M0065072         WATER PUMP REPAIR KIT, Upper 1
