250 VERADO 4-STROKE 6 CYL - Serial 1B517434 Thru 2B144122 - Charge Cooler/Intake Manifold(Gen II) End Cap Serviced

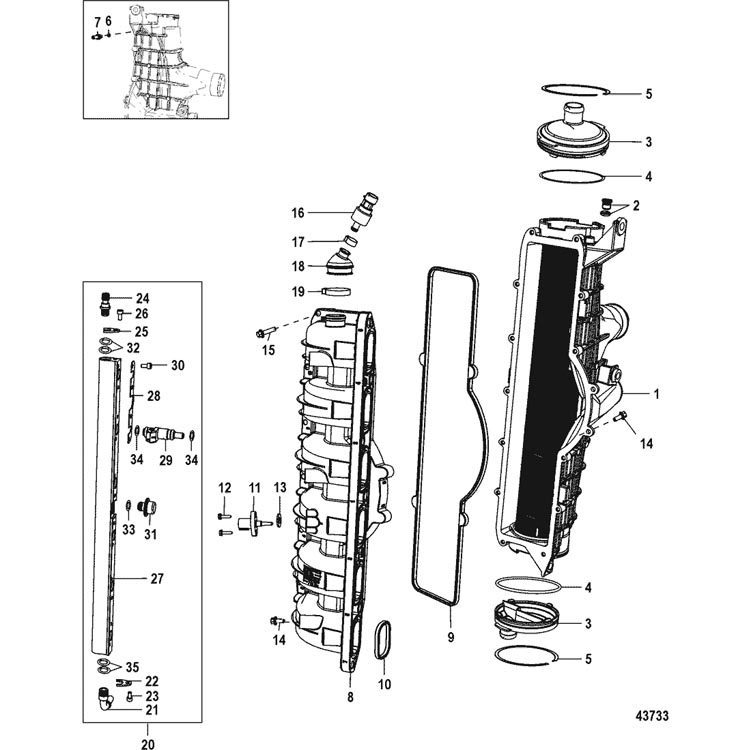

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Adaptor Plate Hose Routings
- Adaptor Plate Hose Routings, CCT
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- CCT Rigging Kit
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft-Count Rot, 4.80 Torp 2B026817 and up
- Gear Housing, Prop Shaft-Std Rot, 4.80 Torp 2B026816 and below
- Gear Housing, Prop Shaft-Std Rot, 4.80 Torp 2B026817 and up
- Gear Housing, PropShaft-Count Rot,4.80 Torp 2B026816 and below
- Gear Housing,, Driveshaft, 5.44 Torpedo SN 1B980359 and below
- Gear Housing,, Driveshaft, 5.44 Torpedo, SN 1B980360 and up
- Gear Housing,, Prop Shaft-Counter/Standard Rotation, 5.44 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Induction Components, CCT
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit - Power Steering(8M0080200/8M0080201)
- Rear Cowl
- Rear Cowl, CCT
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Top Cowl, CCT
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0092408 | MODULE ASSEMBLY, Integrated Air Fuel | 1 | 8M0053763 | |||||
| 1 | 8M0092462 | CAC ASSEMBLY | 1 | 8M0046692 | |||||
| 2 | 19-8M0048079 | PLUG, Zero Leak (M8 x 1.0) | 1 | 8M0039519 | |||||
| 3 | 8M0046698 | END CAP ASSEMBLY | 2 | ||||||
| 4 | 25-8M0039516 | O-RING | 1 | ||||||
| 5 | 53-8M0039464 | RING, Retaining | 1 | ||||||
| 6 | 25-8M0040116 | O-RING | 1 | ||||||
| 7 | 22-8M0039993 | FITTING | 1 | ||||||
| 8 | 8M0083678 | MANIFOLD ASSEMBLY, Intake | 1 | 8M0041479 | |||||
| 9 | 895019 | SEAL, Manifold to CAC | 1 | ||||||
| 10 | 26-895020 | SEAL, Manifold Head | 6 | ||||||
| 11 | 891663001 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 12 | 10-895054 | SCREW, (M4 x 16 MM) | 2 | ||||||
| 13 | 25-892317001 | O-RING | 1 | ||||||
| 14 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold | 3 | ||||||
| 14 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold | 2 | ||||||
| 15 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC | 13 | ||||||
| 16 | 8M6000639 | SENSOR, Pressure | 1 | 8M0010248 | |||||
| 17 | 54-13791 | 676-9-35604 | CLAMP, (15.7 mm) | 1 | 888988015 | ||||
| 18 | 8M0041053 | BOOT, MAP Sensor | 1 | ||||||
| 19 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 20 | 8M0041080 | FUEL RAIL ASSEMBLY | 1 | ||||||
| 21 | 32-8M0047054 | TUBE KIT, Fuel Inlet | 1 | ||||||
| 22 | 8M0041097 | BRACKET, Retaining | 1 | ||||||
| 23 | 10-8M0041100 | SCREW, (M5 x 10) | 1 | ||||||
| 24 | 8M0047053 | VALVE KIT, Shrader | 1 | ||||||
| 25 | 8M0041097 | BRACKET, Retaining | 1 | ||||||
| 26 | 10-8M0041100 | SCREW, (M5 x 10) | 1 | ||||||
| 27 | NSS | FUEL RAIL | 1 | Not Sold Separate | |||||
| 28 | 8M0041096 | BRACKET, Fuel Injector Mounting | 3 | ||||||
| 29 | 8M0041571 | INJECTOR ASSEMBLY, Fuel | 6 | ||||||
| 30 | 10-8M0041100 | SCREW, (M5 x 10) | 12 | ||||||
| 31 | 8M0041101 | DAMPER, Fuel Rail | 1 | ||||||
| 32 | NSS | O-RING, Shrader Valve | 2 | Not Sold Separate | |||||
| 33 | 25-851889 | O-RING, Damper | 1 | ||||||
| 34 | 25-851889 | O-RING, Fuel Injector | 6 | ||||||
| 35 | NSS | O-RING, Tube | 2 | Not Sold Separate |
