250 VERADO 4-STROKE 6 CYL - Serial 1B517434 Thru 2B144122 - Cylinder Block

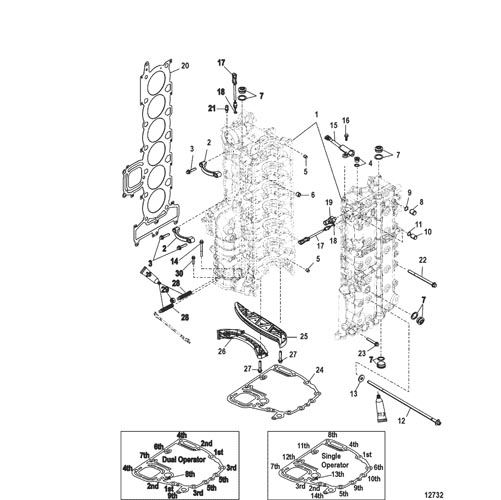

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Adaptor Plate Hose Routings
- Adaptor Plate Hose Routings, CCT
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- CCT Rigging Kit
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft-Count Rot, 4.80 Torp 2B026817 and up
- Gear Housing, Prop Shaft-Std Rot, 4.80 Torp 2B026816 and below
- Gear Housing, Prop Shaft-Std Rot, 4.80 Torp 2B026817 and up
- Gear Housing, PropShaft-Count Rot,4.80 Torp 2B026816 and below
- Gear Housing,, Driveshaft, 5.44 Torpedo SN 1B980359 and below
- Gear Housing,, Driveshaft, 5.44 Torpedo, SN 1B980360 and up
- Gear Housing,, Prop Shaft-Counter/Standard Rotation, 5.44 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Induction Components, CCT
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit - Power Steering(8M0080200/8M0080201)
- Rear Cowl
- Rear Cowl, CCT
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Top Cowl, CCT
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 800-880506A12 | CYLINDER BLOCK ASSEMBLY | 1 | ||||||
| 2 | 8M0041759 | BRACKET, Mounting-Starter Motor | 2 | ||||||
| 3 | 10-88552640 | SCREW, (M8 x 40) | 4 | ||||||
| 4 | 19-889767 | PLUG, (12 mm) | 1 | ||||||
| 5 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 6 | 23-893392001 | DAMPER | 14 | ||||||
| 7 | 19-896951 | PLUG, (24 mm) | 4 | ||||||
| 8 | 17-880524 | PIN, Dowel (14 MM) | 1 | ||||||
| 9 | 25-884409 | O-RING | 1 | ||||||
| 10 | 17-880524 | PIN, Dowel (11 mm) | 1 | ||||||
| 11 | 25-884423 | O-RING | 1 | ||||||
| 12 | 10-8M4501000 | SCREW, (M10 x 342) | 14 | 8M0021876 | |||||
| 13 | 12-892573001 | WASHER | 14 | ||||||
| 14 | 10-88552675 | SCREW, (M8 x 75) | 1 | ||||||
| 15 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 16 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 17 | 8M0010146 | SENSOR ASSEMBLY | 2 | ||||||
| 18 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 2 | ||||||
| 19 | 8M6000637 | SENSOR, Pressure | 1 | 8M0010469 | |||||
| 20 | 27-8M0033476 | GASKET, Head | 1 | ||||||
| 21 | 17-888517 | PIN | 1 | ||||||
| 22 | 10-895810115 | SCREW, (M8 x 115) | 12 | ||||||
| 23 | 10-895810050 | SCREW, (M8 x 50) | 2 | ||||||
| 24 | 27-880624003 | GASKET, Block to Adaptor | 1 | ||||||
| 25 | 880559 | GUIDE, Fixed | 1 | ||||||
| 26 | 880557 | GUIDE, Moveable | 1 | ||||||
| 27 | 10-892456045 | SCREW | 2 | ||||||
| 28 | 16-8M0022160 | STUD | 2 | 888849002 | |||||
| 29 | 11-401388 | NUT, (M8) Stainless Steel | 1 | ||||||
| 30 | 10-88552635 | SCREW, (M8 x 35 MM) | 1 | ||||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
