496 Mag HO Model - Serial 0W650000 Thru 1A066165 - Engine Cover

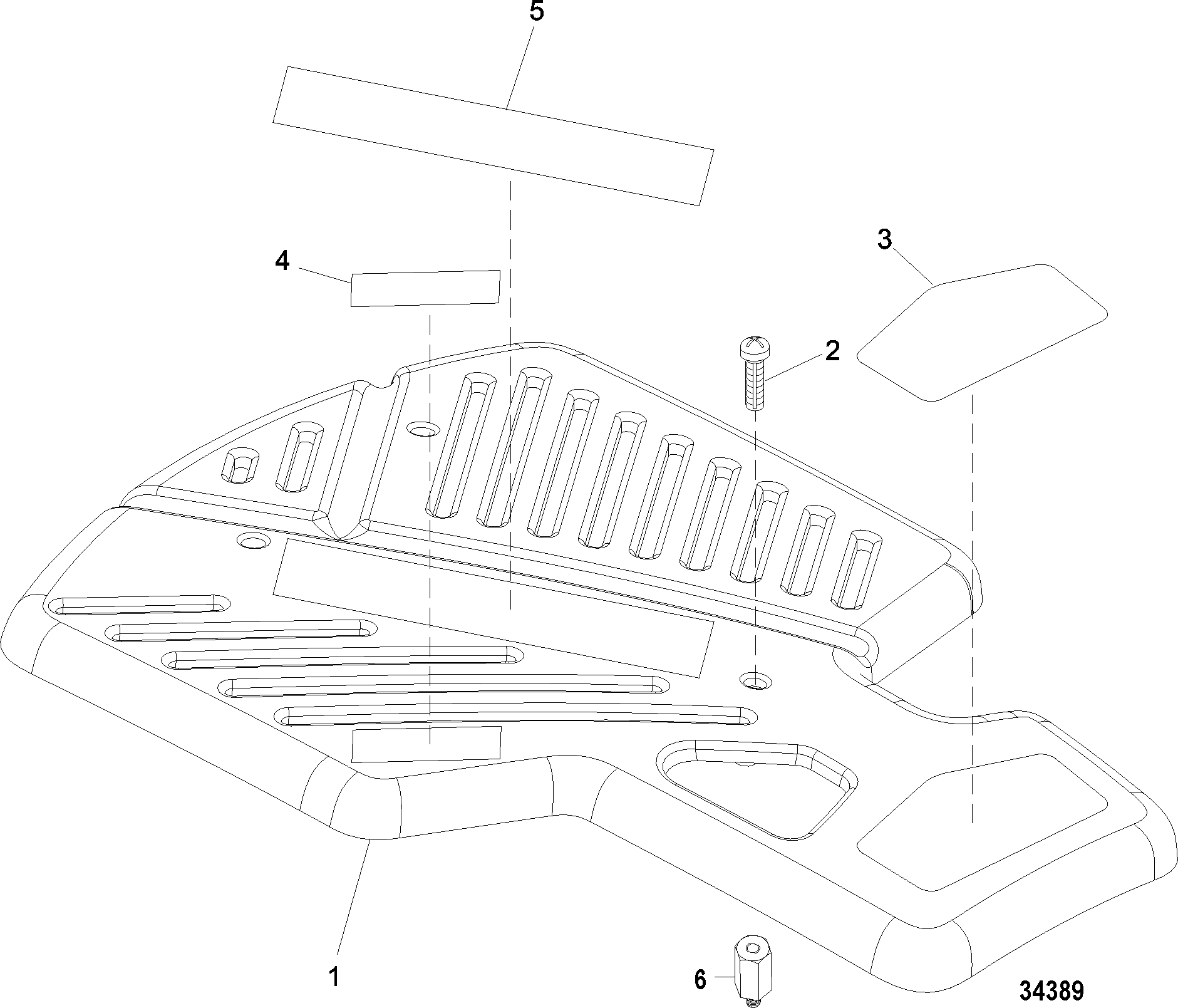

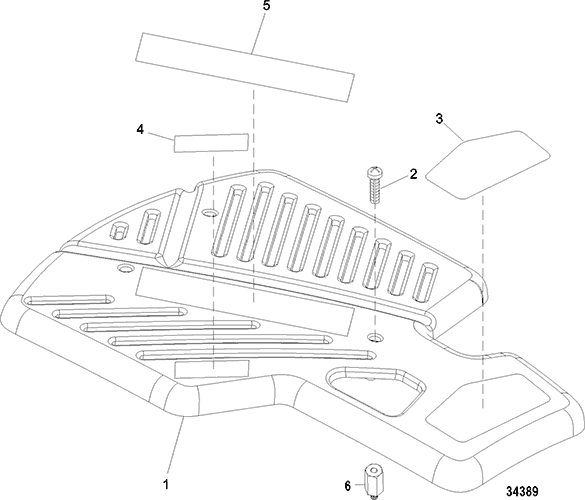

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862365 | COVER, Engine | 1 | ||||||
| 2 | 10-8633221 | SCREW, (M6 x 65) Black | 3 | ||||||
| 3 | 37-863306 | DECAL, Base | 1 | ||||||
| 3 | 37-863307 | DECAL, High Output | 1 | ||||||
| 4 | 37-863313 | DECAL, Specification (Base) | 1 | ||||||
| 4 | 37-863316 | DECAL, Specification (High Output) | 1 | ||||||
| 5 | 37-863748 | DECAL, Mercury | 1 | ||||||
| 6 | 23-863734 | SPACER | 3 |
