496 Mag HO Model - Serial 0W650000 Thru 1A066165 - Exhaust Manifold, Elbow And Riser

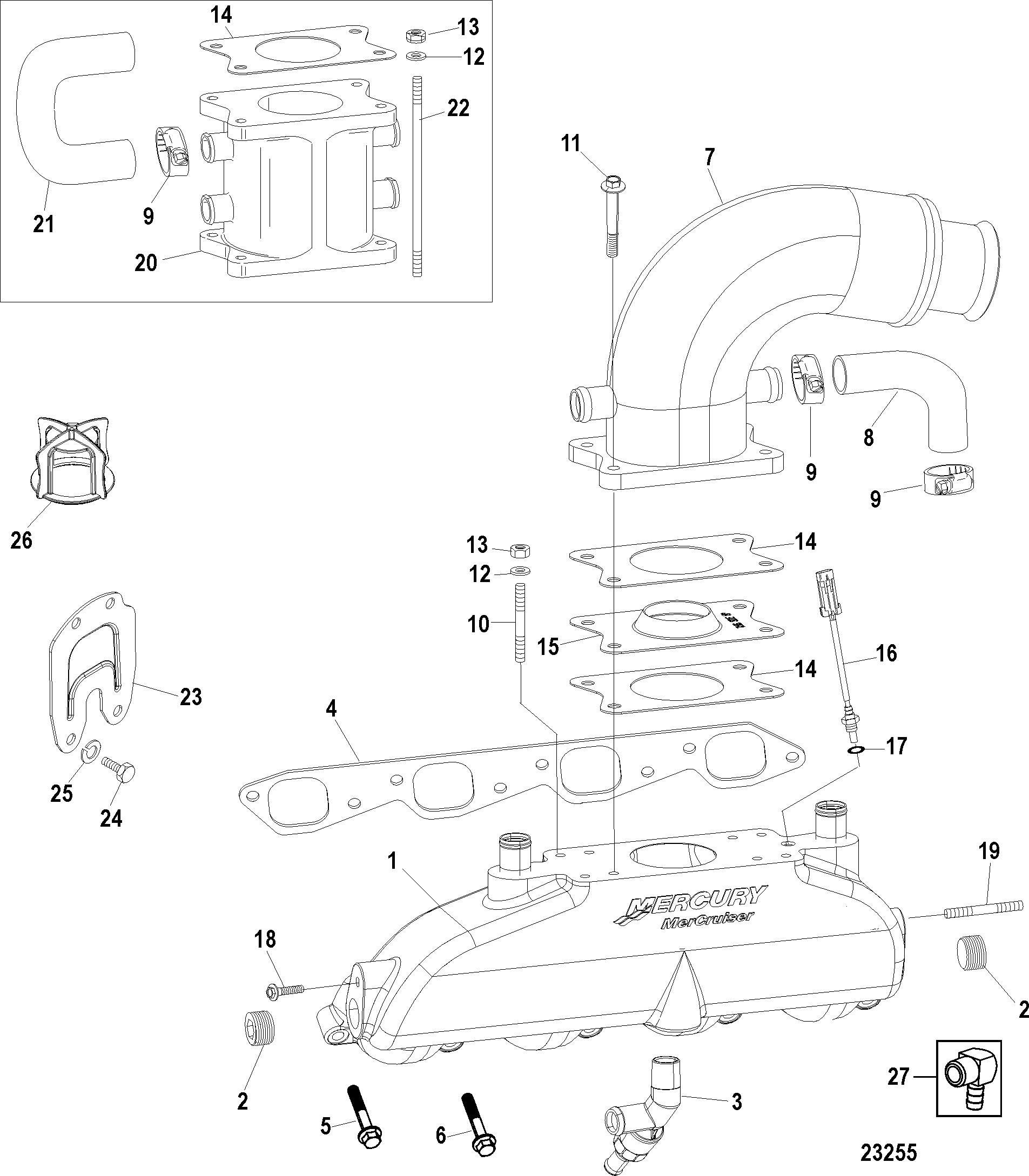

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	SEI #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	866178T01					MANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust	2
2	22-12524					PLUG, (.375-18 x .475) Brass	1
3	22-865341A03					FITTING ASSEMBLY, Drain - Stainless Steel	1		Port Exhaust Manifold
3	22-865828A02					FITTING ASSEMBLY, Drain - Stainless Steel	1		Starboard Exhaust Manifold
4	27-46820		676-9-61400	700-33760		GASKET, Exhaust Manifold to Cylinder Head	2		2,3
5	10-40011151					SCREW, (M8 x 35) Stainless Steel	8
6	10-40011158					SCREW, (M8 x 70) Stainless Steel	8
7	865331A02					ELBOW, Exhaust	2		Standard Rise
7	865332A02					ELBOW, Exhaust	2		2 Inch Rise
8	32-863095					HOSE, Elbow to Manifold	4
9	54-815504216					CLAMP, Worm Gear (1.56 Diameter)	8
10	16-8204511					STUD, (M8 x 55)	3
11	10-4010725					SCREW, (M8 x 25)	8
12	12-12038					WASHER	8
13	11-4002030					NUT, (M8)	8
14	27-862356					GASKET, Elbow to Manifold	4
15	8M2000433					GASKET, Turbulator, Exhaust	2
16	885342002					SENSOR ASSEMBLY, Temperature	1
17	25-627021					O-RING, (.301 x .070)	1
18	10-4010716					SCREW, (M8 x 16)	1
19	16-424632					STUD, (M8 x 37.1)	1
20	866768T					RISER, (6 Inch)	2
21	32-863102					HOSE	4
22	16-863121					STUD, (M8 x 194)	8
NS	19-8079923					COVER, Hose Clamp End	8
23	861776A2					PLATE KIT	1
24	10-98794	602-98-102-35	676-9-78129	700-28300	525-10-98794	SCREW, (.375-16 x 1.00)	4
25	13-41471					LOCKWASHER, (.375)	4
26	860222A1					RESONATOR, Exhaust	1
27	8M2000159					ELBOW	1
