6.2L MPI 350 - 2A530776 and Up - Fresh Water Cooling Sea Pump Hoses

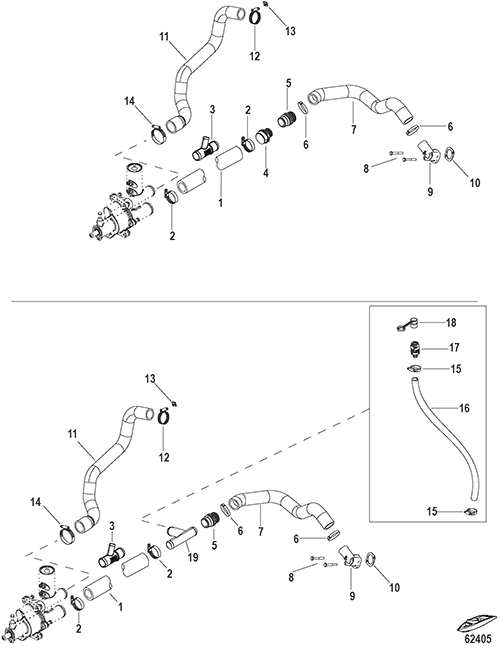

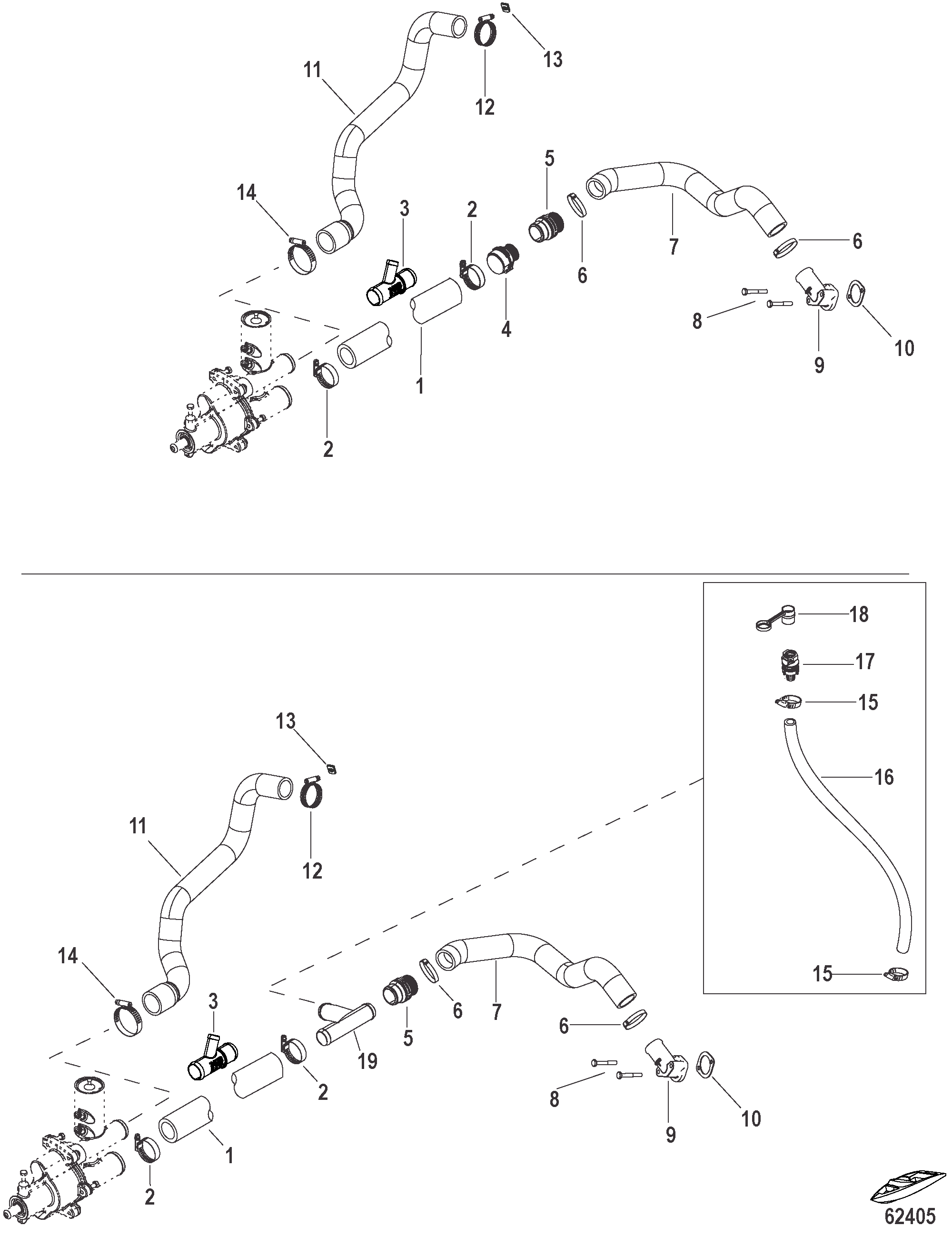

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 OEM: 525-32-8M0062666 HOSE (96.00 Inches Bulk) (Cut to Length)   1
1 0032 OEM: 525-32-8M0062653 HOSE (4 Inches) (Additional Inlet Applications) A/R
2 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter)   4
3 0022 OEM: 525-22-864727 FITTING Y, (3) 1-1/4 In. OD Hose Barbs (Additional Inlet Applications) A/R
4 0022 OEM: 525-22-865362 QUICK CONNECT   1
5 0022 OEM: 525-22-865324 QUICK CONNECT Bravo 1
6 0054 OEM: 525-54-8M6001459 CLAMP (45.5)   2
7 0032 8M0109511 HOSE   1
8 0010 OEM: 525-10-73015 SCREW (.250-20 x 1.75)   2
9 0000 8M0111791 HOUSING Inlet   1
10 0027 8M0109475 GASKET   1
11 0032 8M2023904 HOSE   1
12 0054 OEM: 525-54-815504220 CLAMP Worm Gear   1
13 0019 OEM: 525-19-8M0074364 CAP   A/R
14 0054 OEM: 525-54-815504228 CLAMP Worm Gear Seacore 2
15 0054 OEM: 525-54-815504212 CLAMP Worm Gear Seacore 2
16 0032 8M0103147 HOSE Flush Seacore 1
17 0022 OEM: 525-22-861406 SOCKET Seacore 1
18 0019 OEM: 525-858240 CAP Seacore 1
19 0022 OEM: 525-22-8M4501756 FITTING Seacore 1
