6.2L MPI 350 - 2A530776 and Up - Sea Water Pump

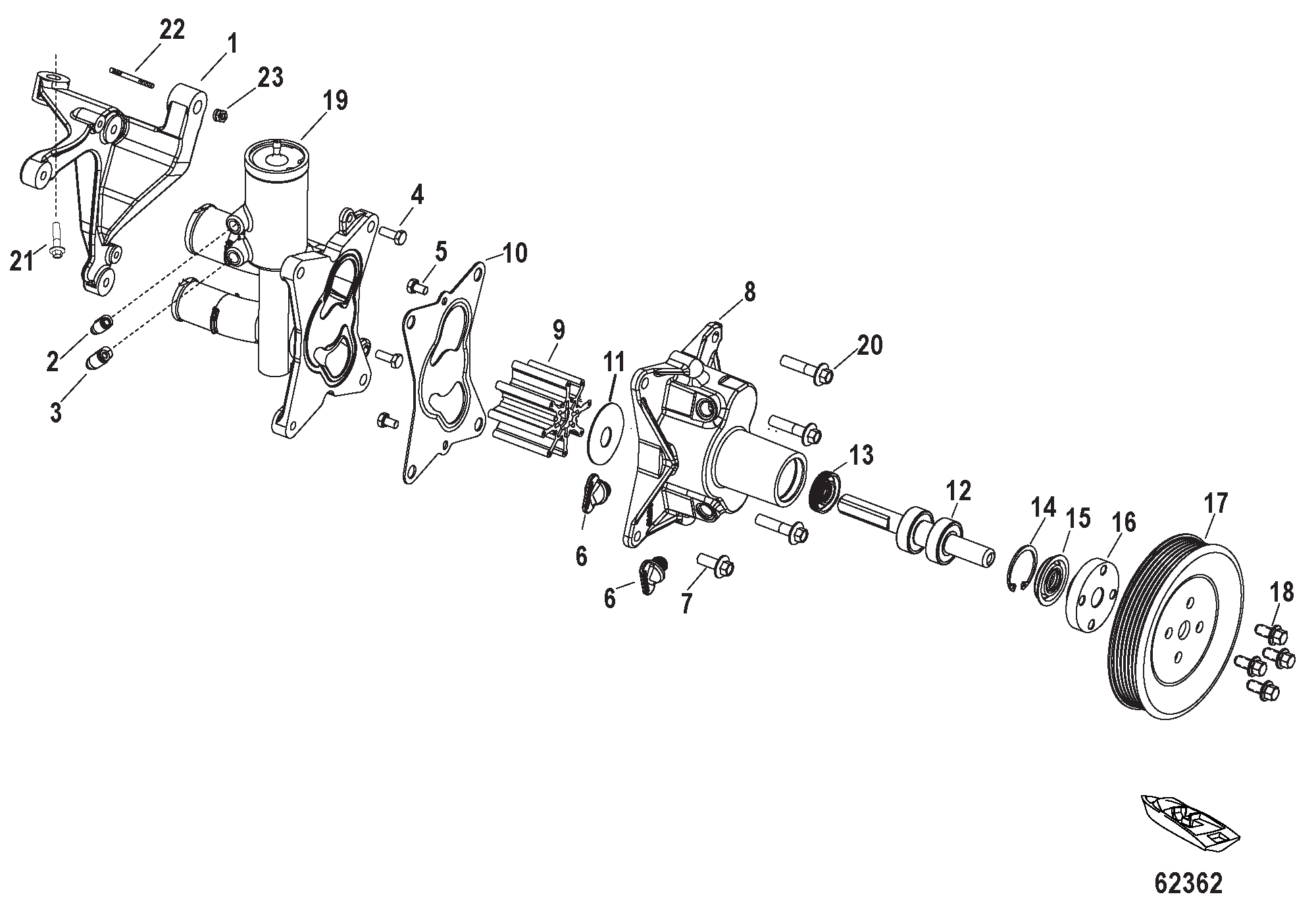

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| - | 0046 | 8M0122666 | SEA PUMP KIT (With Distribution Housing) | 1 | ||
| - | 0046 | 8M0122667 | SEA PUMP ASSEMBLY Sea Water | 1 | ||
| 1 | 0000 | OEM: 525-8M0075090 | BRACKET | 1 | ||
| 2 | 0022 | OEM: 525-22-8M0082321 | FITTING (90 Degree) | 1 | ||
| 3 | 0022 | OEM: 525-22-8M0082322 | FITTING Orange (90 Degree) | 1 | ||
| 4 | 0010 | OEM: 525-10-4000328 | SCREW (M6 x 16) | 2 | ||
| 5 | 0010 | OEM: 525-10-4000325 | SCREW (M6 x 8) | 2 | ||
| 6 | 0022 | OEM: 530-8M0119211 | PLUG ASSEMBLY (.500-13) Blue | 2 | [1] | |
| 7 | 0010 | OEM: 525-10-4010720 | SCREW (M8 x 20) | 1 | ||
| 8 | 0000 | 8M0122665 | IMPELLER HOUSING ASSEMBLY | 1 | ||
| 9 | 0098 | 8M0121940 | IMPELLER KIT Heavy Duty | 1 | ||
| 10 | 0027 | 8M0114788 | PLATE Wear, Seal | 1 | ||
| 11 | NSS | NOT SOLD SEPARATE Wear Plate | 1 | |||
| 12 | 0000 | OEM: 525-8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||
| 13 | 0026 | OEM: 525-26-8M2001645 | SEAL | 1 | ||
| 14 | NSS | NOT SOLD SEPARATE Snap Ring | 1 | |||
| 15 | 0026 | OEM: 525-26-862040 | SEAL | 1 | ||
| 16 | 0000 | 8M0109086 | HUB | 1 | ||
| 17 | 0000 | OEM: 525-8M0074941 | PULLEY | 1 | ||
| 18 | 0010 | 88552616 | SCREW (M8 x 16) | 4 | ||
| 19 | 0000 | 8M0122664 | COVER ASSEMBLY Sea Pump | 1 | ||
| 20 | 0010 | OEM: 525-10-4010735 | SCREW (M8 x 35) | 3 | ||
| 21 | 0010 | OEM: 525-10-892086035 | SCREW (M10 x 35) | 1 | ||
| 22 | 0016 | 8M0097732 | STUD (M10x1.5x55) | 1 | ||
| 23 | 0011 | 8M0090535 | NUT (M10 Flange) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608Q01QS
8M0119211Service Part
