496 Mag HO Model - Serial 1A350679 and Up - Axius Steering, Hydraulic Pump And Reservoir,Gen I
Other Sub-Sections:
- Axius Steering, Fluid Filter (High Pressure), Gen I
- Axius Steering, High Pressure Filter Conversion Kit, Gen I
- Axius Steering, Hoses (High Pressure), Gen I
- Axius Steering, Hydraulic Pump And Reservoir,Gen I
- Axius Steering, Oil Cooler And Bracket, Gen I
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components, Bravo
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift-Axius
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System

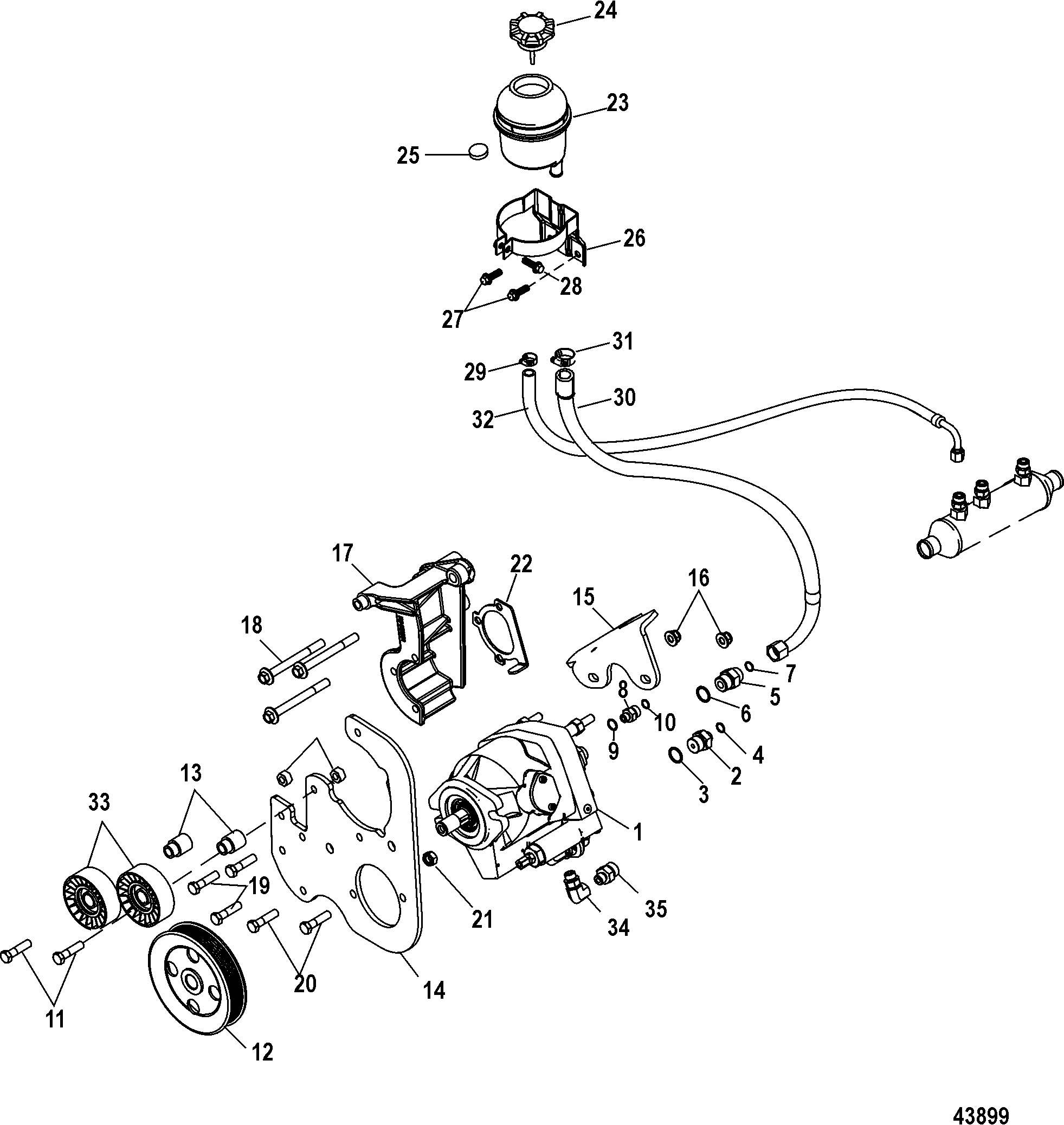

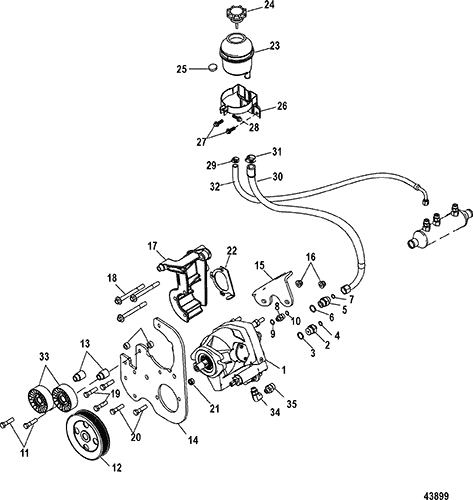

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 879194T51 | PUMP | 1 | ||||||
2 | 22-8M2007281 | FITTING | 1 | ||||||
3 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
4 | 25-8M2004603 | O-RING | 1 | ||||||
5 | 22-8M2008373 | FITTING, (1.25 in.) | 1 | ||||||
6 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
7 | 25-8M2008541 | O-RING | 1 | ||||||
8 | 22-8M2007090 | FITTING, (-6ORF TO -8ORB) Straight | 1 | ||||||
9 | 8M2004354 | O-RING | 1 | ||||||
10 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
11 | 10-4010860 | SCREW, (M10 x 60) Hex Flange - Stainless Steel | 2 | ||||||
12 | 8M8020627 | PULLEY, Power Steering | 2 | ||||||
13 | 8M8020541 | BUSHING | 2 | ||||||
14 | 8M2013950 | BRACKET, Power Steering Pump | 1 | ||||||
15 | 8M2007274 | BRACKET | 1 | ||||||
16 | 11-860069 | NUT, (.375-16) | 2 | ||||||
17 | 865595T01 | BRACKET | 1 | ||||||
18 | 10-8M0012503 | SCREW, (M10 x 1.5) | 3 | ||||||
19 | 10-4010720 | SCREW, (M8 x 20) | 3 | ||||||
20 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
21 | 11-860069 | NUT, (.375-16) | 2 | ||||||
22 | 8M2009215 | BRACKET | 1 | ||||||
23 | 865264T | RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering | 1 | ||||||
24 | 19-865263 | CAP, Oil Reservoir - Brown | 1 | ||||||
25 | 87919455T | MAGNET, Power Steering Reservoir | 1 | ||||||
26 | 865262A02 | BRACKET ASSEMBLY | 1 | ||||||
27 | 10-4010716 | SCREW, (M8 x 16) | 2 | ||||||
28 | 10-4000117 | SCREW, (M5 x 20) | 1 | ||||||
29 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
30 | 32-8M2012143 | HOSE, Inlet to Reservoir | 1 | ||||||
31 | 54-815504210 | CLAMP, Worm Gear | 1 | ||||||
32 | 32-8M2006304 | HOSE | 1 | ||||||
33 | 8M6500024 | PULLEY | 2 | 865598 | |||||
34 | 22-8M2009850 | FITTING (-6) Orb to 1/4 NPT | 1 | ||||||
35 | 22-8M2009851 | COUPLING, Hyraulic Quick | 1 | ||||||
- | 879172A34 | PULLEY KIT, High Current, Axius | 1 |
