496 Mag HO Model - Serial 1A350679 and Up - Cool Fuel System

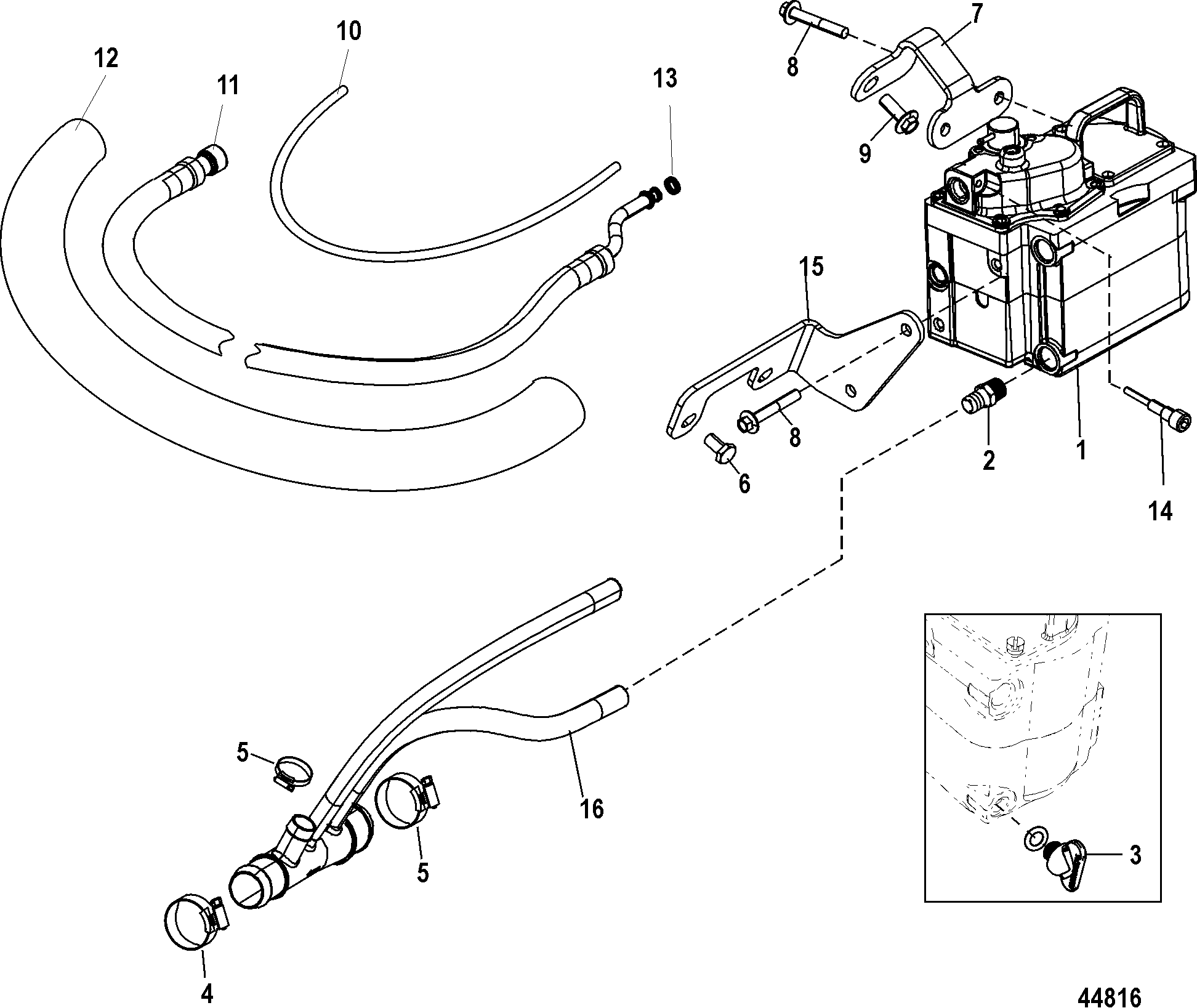

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering, Fluid Filter (High Pressure), Gen I
- Axius Steering, High Pressure Filter Conversion Kit, Gen I
- Axius Steering, Hoses (High Pressure), Gen I
- Axius Steering, Hydraulic Pump And Reservoir,Gen I
- Axius Steering, Oil Cooler And Bracket, Gen I
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components, Bravo
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift-Axius
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0047215 | MODULE KIT, Fuel Pump, Complete | 1 | 864650A13 | |||||
| 1 | 8M0047215 | MODULE KIT, Fuel Pump, Complete, With Drain Port | 1 | ||||||
| 2 | 8M2010476 | FITTING, (3/8-18) | 2 | ||||||
| 3 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only | 1 | ||||||
| 4 | 54-815504228 | CLAMP, Worm Gear | 1 | ||||||
| 5 | 54-815504206 | CLAMP, Worm Gear | 2 | ||||||
| 6 | 10-40001195 | SCREW, (M10 x 30) | 2 | ||||||
| 7 | 864597T | BRACKET | 1 | ||||||
| 8 | 10-4010720 | SCREW, (M8 x 20) | 4 | ||||||
| 9 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 10 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) | 1 | 32-80617382 | |||||
| 11 | 32-8M2005176 | LINE, Fuel, Fuel Module to Fuel Rail | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, Insulator Sleeve | 1 | This Part is not sold separately | |||||
| 13 | 26-863151 | SEAL, Quad Ring | 1 | ||||||
| 14 | 10-866114 | SCREW, (.250-28) Special | 1 | ||||||
| 15 | 864468T | BRACKET | 1 | ||||||
| 16 | 865208T02 | HOSE ASSEMBLY, 3 Bib Orifice Meter |
