4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Distributor and Ignition Components

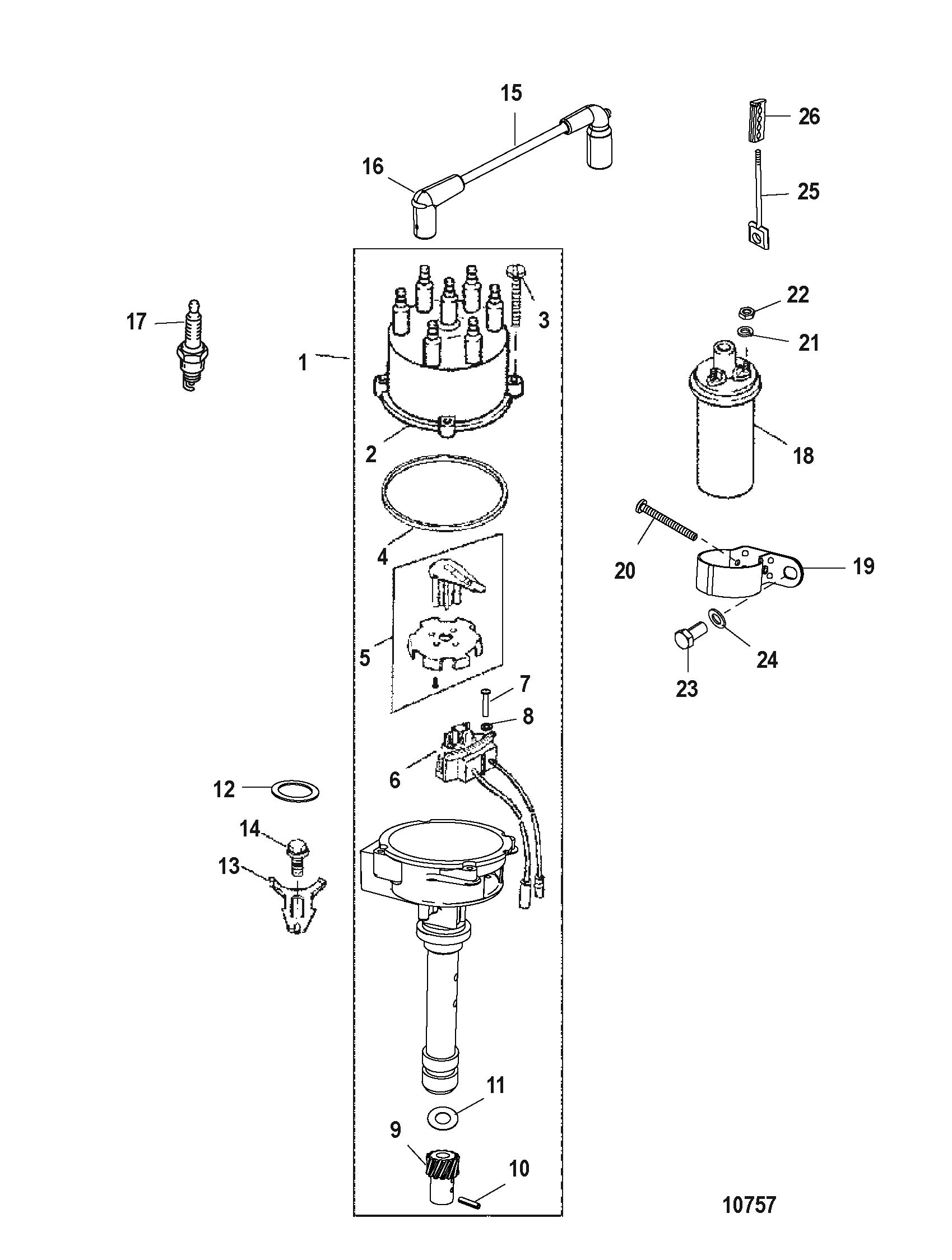

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Bravo Standard Cooling)
- Sea Water Pump Assembly Alpha-Bravo Closed Cooling
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 805185A37 | DISTRIBUTOR ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 530-815407A2, Sierra: 676-18-5396, GLM: 700-71500 | CAP Distributor | 1 | [1] | |
| 3 | 0010 | OEM: 525-10-90926, GLM: 700-22305 | SCREW (#10-32 x .810) | 4 | ||
| 4 | 0027 | OEM: 525-27-805760, GLM: 700-32060 | GASKET | 1 | ||
| 5 | 0000 | OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 | ROTOR/SENSOR WHEEL | 1 | [2] | |
| 6 | 0087 | OEM: 530-892150Q02 | SENSOR ASSEMBLY | 1 | [3] | |
| 7 | 0010 | OEM: 525-10-72202, GLM: 700-22312 | SCREW (#10-32 x 1.25) | 1 | ||
| 7 | 0010 | OEM: 525-10-66686, GLM: 700-22311 | SCREW (#10-32 x 1.00) | 1 | ||
| 8 | 0013 | OEM: 525-13-F8058 | LOCKWASHER Internal (#10) | 1 | ||
| 9 | 0043 | OEM: 525-43-818807, GLM: 700-19360 | GEAR | 1 | ||
| 10 | 0017 | OEM: 525-17-47617, GLM: 700-22195 | PIN | 1 | ||
| 11 | 0012 | OEM: 525-12-90931, GLM: 700-21661 | THRUST WASHER | 1 | ||
| 12 | 0027 | OEM: 525-27-344863, Sierra: 676-18-0874 | GASKET | 1 | [4] | |
| 13 | 0000 | OEM: 525-52185 | CLAMP | 1 | ||
| 14 | 0010 | OEM: 525-10-881570 | SCREW (M8 x 25 MM) | 1 | ||
| 15 | 0084 | OEM: 525-84-863656A04 | CABLE KIT | Ignition -Plug & Coil Wires (Blue) | 1 | |
| 16 | NSS | NOT SOLD SEPARATE Coil Wire Assembly | 1 | |||
| 17 | 0033 | OEM: 525-33-862029 | SPARK PLUG | 6 | ||
| 18 | 0392 | 805570A2 | COIL KIT Ignition | 1 | ||
| 19 | 0000 | OEM: 525-65970T1 | BRACKET Coil | 1 | ||
| 20 | 0010 | 41408 | SCREW (#10-32 x 1.50) | 1 | ||
| 21 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 22 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 23 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 24 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 1 | ||
| 25 | 0016 | OEM: 525-16-90096A1 | STUD ASSEMBLY (#10-32 x Special) Spark Plug Wire Retainer | 2 | ||
| 26 | 0054 | OEM: 525-54-72821 | RETAINER Spark Plug Wire | 2 | ||
| - | 0027 | OEM: 525-27-824326A03 | GASKET SET Engine Overhaul | 1 | ||
| - | 0000 | 879150A31 | LONG BLOCK (4.3L) | 1 | [5] |
PART NOTES:
[1] - Alternate part numbers:
815407A 2Service Part
815407Q02QS
815407Q 5QS Kit
815407T 5MPP Kit
[2] - Alternate part numbers:
13524A 6Service Part
13524Q06QS
815407Q 5QS Kit
815407T 5MPP Kit
[3] - Alternate part numbers:
861780A 2Service Part
892150K02MPP
892150Q02QS
[4] - Component of Engine Overhaul Gasket Set 824326A03
Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page
[5] - Alternate part numbers:
879150A31QS
879150R31Reman
8M0150280Reman
