4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Intake Manifold

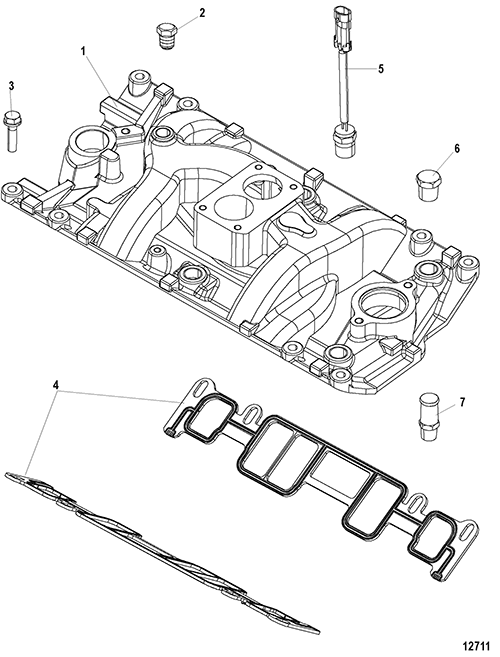

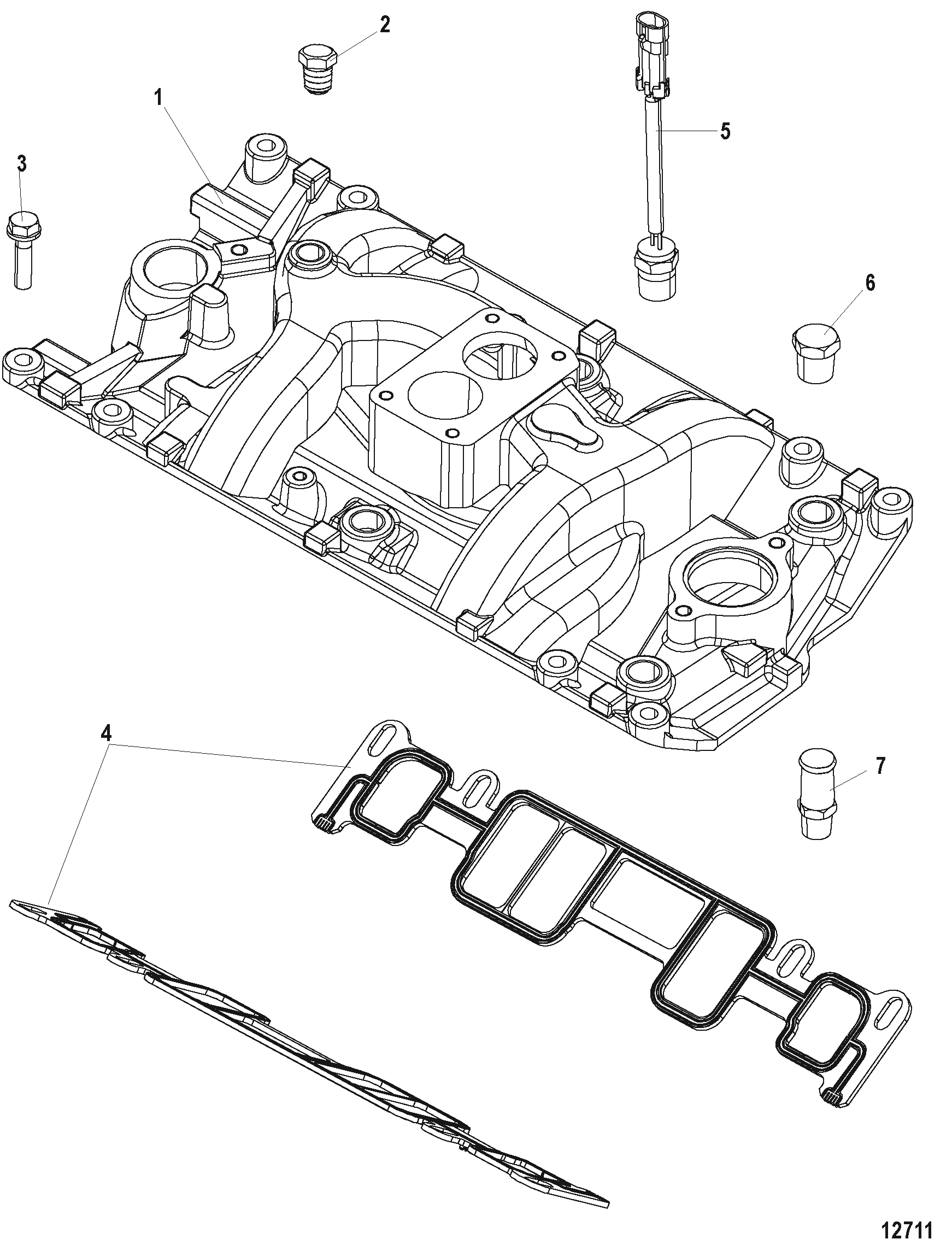

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Bravo Standard Cooling)
- Sea Water Pump Assembly Alpha-Bravo Closed Cooling
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-824324T02 | MANIFOLD Intake | (2 Barrel) | 1 | |
| 2 | 0022 | OEM: 525-22-75983 | PLUG (.25-14) | 1 | ||
| 3 | 0010 | OEM: 525-10-835004 | BOLT (.312-18 x 1.75) | 8 | ||
| 4 | 0027 | OEM: 525-27-824326002, Sierra: 676-18-0487 | GASKET SET Intake | 1 | [1] | |
| 5 | 0087 | OEM: 525-87-866089 | THERMAL SWITCH (Normally Open 130-110 degrees) Turn Key Start | 1 | ||
| 6 | 0022 | 37372 | PLUG Pipe (.500) | 1 | ||
| 7 | 0022 | OEM: 525-22-806242 | CONNECTOR | Closed Cooling | 1 |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 824326A02
Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page
