4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Carburetor and Throttle Linkage

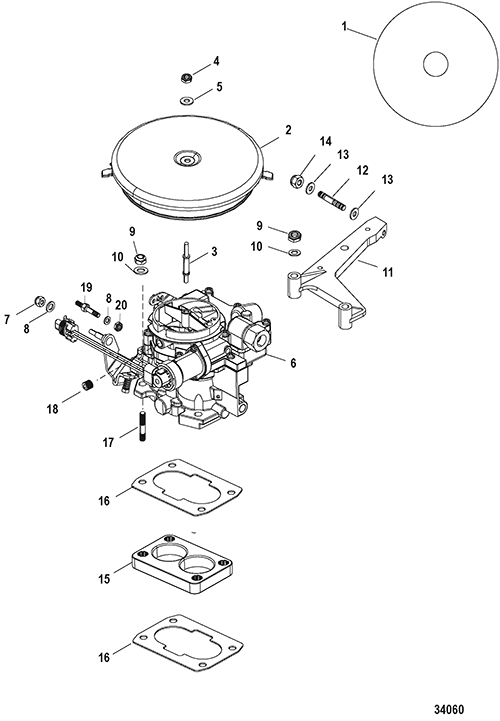

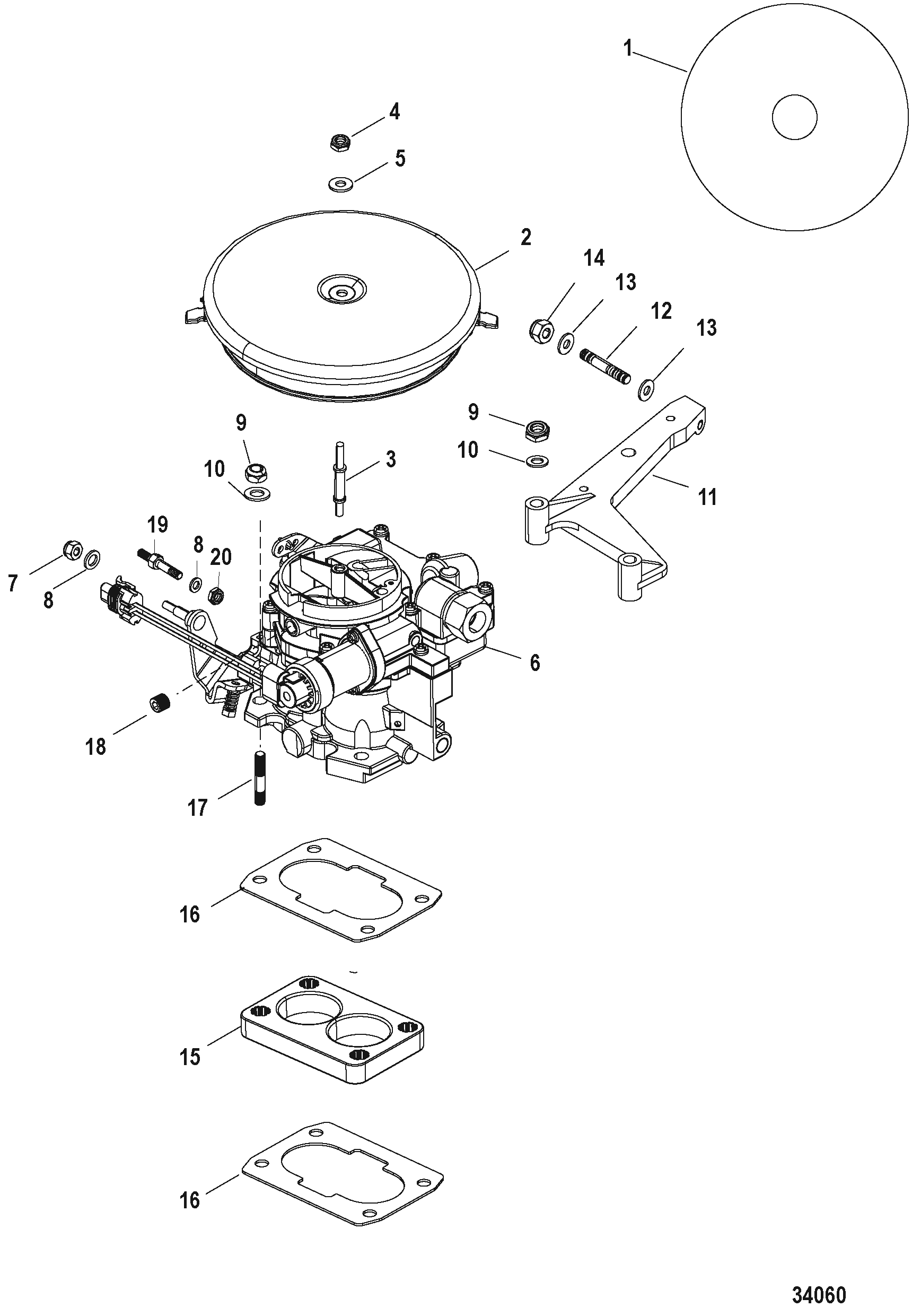

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0037 | 8M2009754 | DECAL Carburetor Cover | 1 | ||
| 2 | 0000 | OEM: 525-863200 | FLAME ARRESTOR | 1 | ||
| 3 | 0016 | OEM: 525-16-805295 | STUD (.250-20/.250-28 x Special) | 1 | ||
| 4 | 0011 | OEM: 525-11-8267139 | NUT (.250-28) | 1 | ||
| 5 | 0012 | OEM: 525-12-86400 | WASHER | 1 | ||
| 6 | 3310 | 866141A02 | CARBURETOR | 1 | ||
| 7 | 0011 | OEM: 525-11-8267089, Sierra: 676-18-3722 | NUT (.250-28) | 1 | ||
| 8 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 9 | 0011 | OEM: 525-11-862902, GLM: 700-19354 | NUT (.312-24) | 4 | ||
| 10 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) | 2 | ||
| 10 | 0012 | OEM: 525-12-26825 | WASHER (.328 x .750 x .06) | 2 | ||
| 11 | 0000 | OEM: 525-805489T | BRACKET | 1 | ||
| 12 | 0016 | OEM: 525-16-38525 | STUD | 1 | ||
| 13 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 14 | 0011 | OEM: 525-11-8267139 | NUT (.250-28) | 1 | ||
| 15 | 0000 | OEM: 525-807726A2 | ADAPTER | 1 | ||
| 16 | 0027 | OEM: 525-27-866027 | GASKET | 2 | [1] | |
| 17 | 0016 | OEM: 525-16-807849 | STUD (.312-18/.312-24 x 3.380) | 2 | ||
| 17 | 0016 | OEM: 525-16-65868 | STUD (.312-18/.312-24 x 2.120) | 2 | ||
| 18 | 0022 | OEM: 525-22-56800 | PLUG Pipe (.0625-27) | 1 | ||
| 19 | 0016 | 96112 | STUD (.250-28 x 2.00) | 1 | ||
| 20 | 0011 | OEM: 525-11-8267139 | NUT (.250-28) | 1 |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 824326A03
