4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up

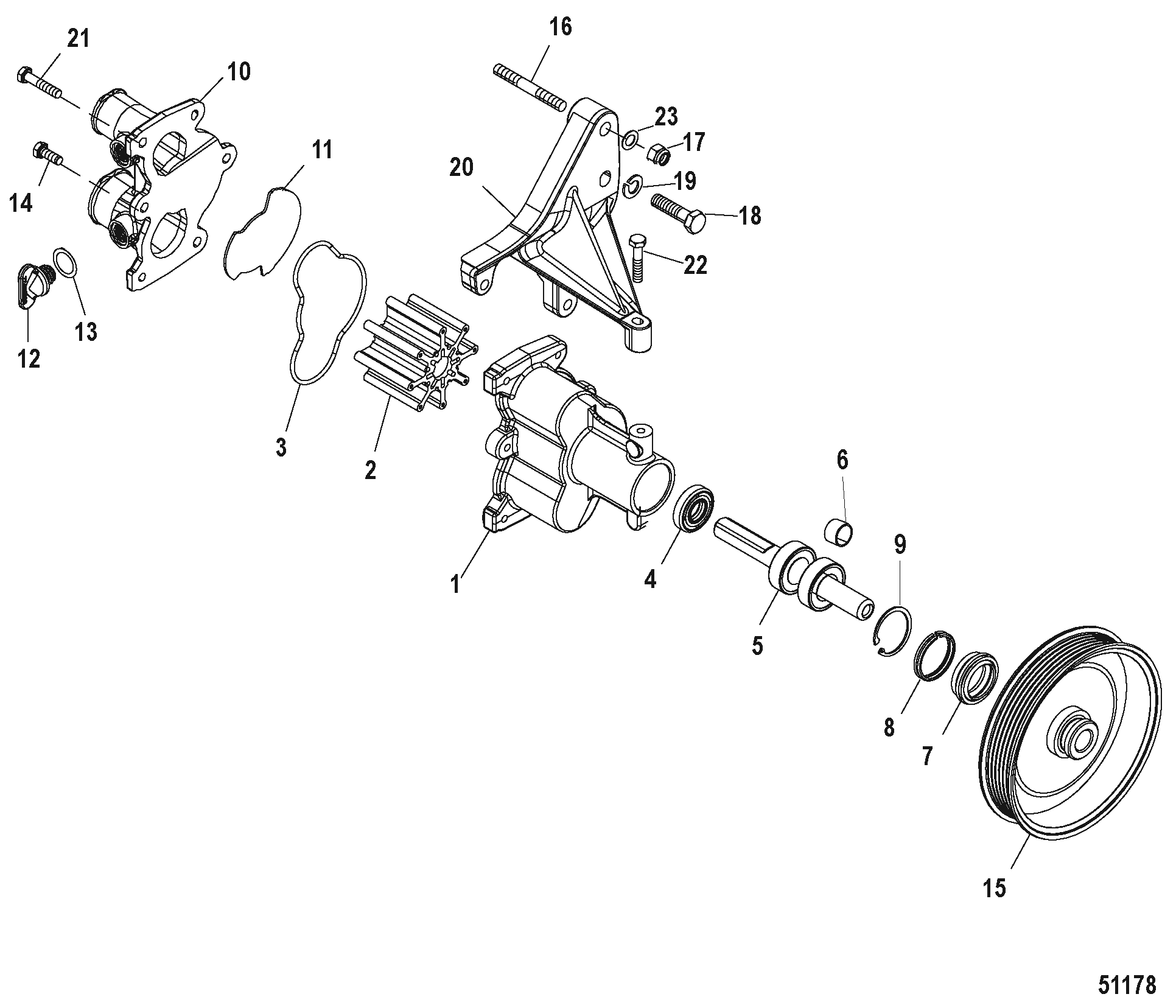

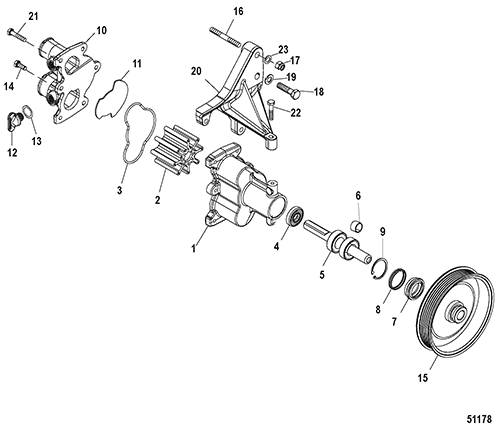

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 0046 | 862914T10 | PUMP KIT Sea Water | 1 | ||
| 1 | 0046 | OEM: 525-46-862914A13, Sierra: 676-18-3160-1 | HOUSING ASSEMBLY Impeller | 1 | ||
| 2 | 0047 | 862232A2 | IMPELLER | 1 | ||
| 3 | 0000 | OEM: 525-8M2021987 | O-RING Formed (Also included with Reference 8) | 1 | ||
| - | 0000 | OEM: 525-8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||
| 4 | 0026 | 862037 | SEAL Oil | 1 | ||
| 5 | 0000 | 862235A1 | DRIVESHAFT ASSEMBLY | 1 | ||
| 6 | NSS | NOT SOLD SEPARATE SPACER | [1A623371] & Up | 1 | ||
| 7 | 0026 | OEM: 525-26-862040 | SEAL Lip | 1 | ||
| 8 | 0000 | OEM: 525-862039 | TOLERANCE RING | [1A623370] & Below | 1 | |
| 9 | NSS | NOT SOLD SEPARATE SNAP RING | [1A623371] & Up | 1 | ||
| 10 | 0000 | OEM: 525-862776A01 | COVER KIT Impeller Housing | 1 | ||
| 11 | 0000 | OEM: 525-8M2014176 | PLATE Wear | 1 | ||
| 12 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 2 | [1] | |
| 13 | 0025 | 32509 | O-RING (.489 x .070) | 2 | ||
| 14 | 0010 | OEM: 525-10-4000328 | SCREW (M6 x 16) | 4 | ||
| 15 | 0000 | 862351T | PULLEY | 1 | ||
| 16 | 0016 | OEM: 525-16-863853 | STUD | 2 | ||
| 17 | 0011 | OEM: 525-11-82671112 | NUT (.375-16) | 2 | ||
| 18 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 1 | ||
| 19 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 20 | 0000 | OEM: 525-865143T01 | BRACKET Sea Water Pump | 1 | ||
| 21 | 0010 | OEM: 525-10-4000331 | SCREW (M6 x 30) | 2 | ||
| 22 | 0010 | OEM: 525-10-4000331 | SCREW (M6 x 30) | 1 | ||
| 23 | 0012 | OEM: 525-12-38622 | WASHER (.391 x 1.00 x .125) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
