4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Electrical Components

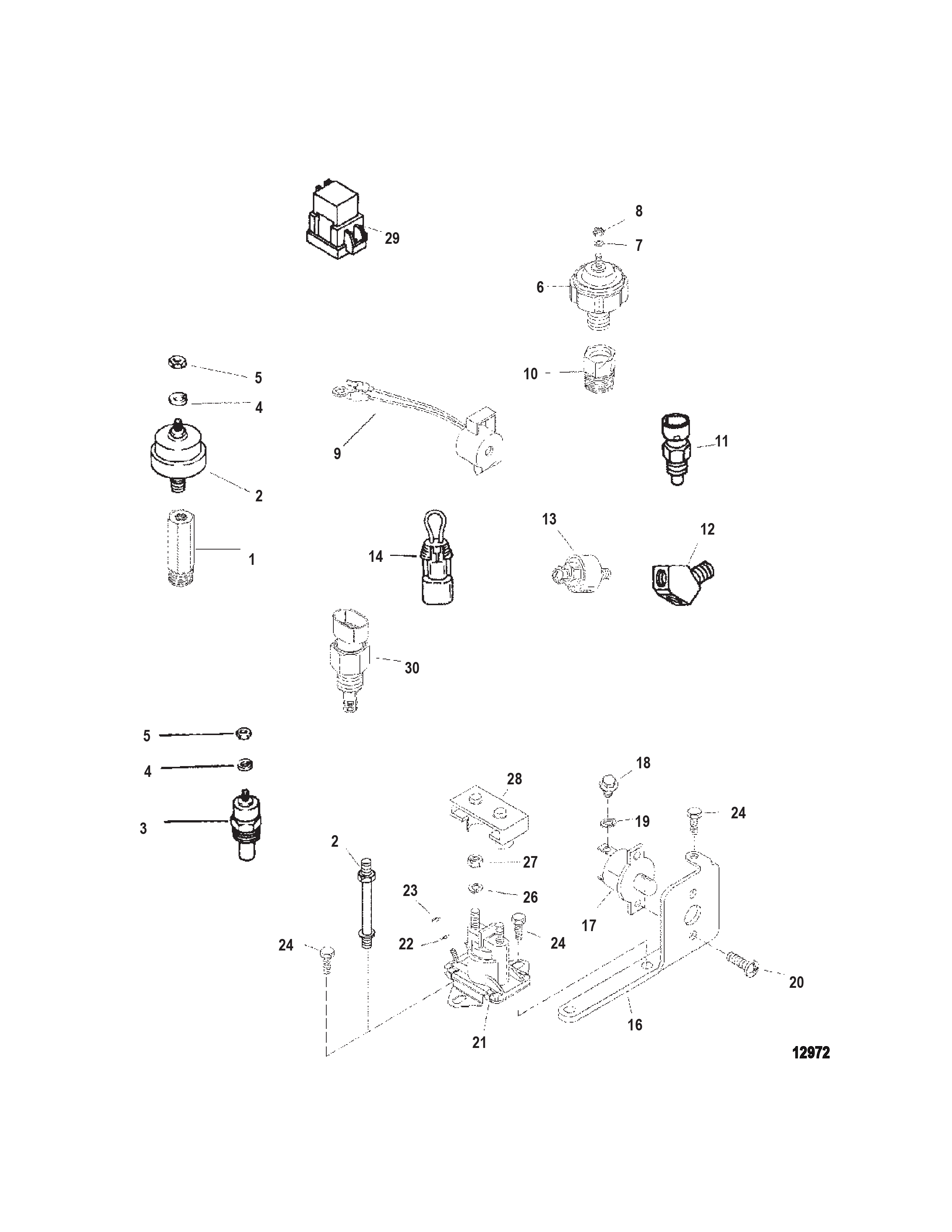

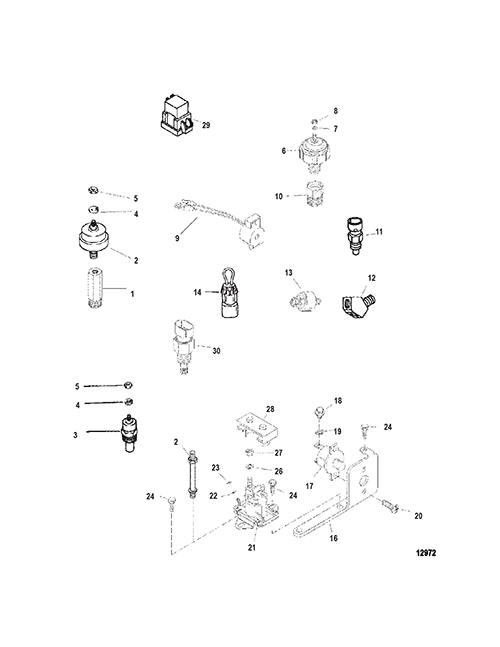

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0022 | OEM: 525-22-805059 | FITTING | 1 | ||
| 2 | 0000 | 815425T | SENDER ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 525-37293T | SENDER ASSEMBLY | (Dual Station) | OPT | |
| 3 | 0000 | 97257A1 | SENDER ASSEMBLY Water Temperature | 1 | ||
| 3 | 0000 | OEM: 525-49734 | SENDER | (Dual Station) | OPT | |
| 4 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 5 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 6 | 0087 | OEM: 530-805605A1 | SWITCH ASSEMBLY | (Audio Warning System) | 1 | |
| 7 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | (Audio Warning System) | 1 | |
| 8 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | (Audio Warning System) | 1 | |
| 9 | 0000 | OEM: 525-816492A6 | ALARM KIT | (Audio Warning System) | 1 | |
| 10 | 0022 | OEM: 525-22-805059 | FITTING | 1 | ||
| 11 | 0000 | OEM: 530-805218T, Sierra: 676-18-7600 | SENSOR | 1 | ||
| 12 | 0022 | OEM: 525-22-8067051 | FITTING Dual | 1 | ||
| 13 | 0000 | 808015T | SENSOR ESC Control | 1 | ||
| 14 | 0000 | OEM: 525-805592A1 | CONNECTOR ASSEMBLY | (Bravo) | 1 | |
| 15 | 0000 | OEM: 525-830796A1 | CONNECTOR ASSEMBLY | 1 | ||
| 16 | 0000 | 805368T | BRACKET Electrical | 1 | ||
| 17 | 0088 | 806950 | BREAKER Circuit - 50 Ampere | 1 | ||
| 18 | 0010 | OEM: 525-10-68513 | SCREW (#10-32 x .375) Stainless Steel | 2 | ||
| 19 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 20 | 0010 | 57583 | SCREW (#8-32 x .375) | 2 | ||
| 21 | 0089 | OEM: 530-96158T, Sierra: 676-18-5817, GLM: 700-72400 | SOLENOID | 1 | ||
| 22 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel | 2 | ||
| 23 | 0011 | OEM: 525-11-26419 | NUT (#8-32) Brass | 2 | ||
| 24 | 0010 | OEM: 525-10-805564 | SCREW (.250-20 x .750) | (Alpha) | 2 | |
| 25 | 0016 | OEM: 525-16-805459 | STUD Mercathode Mounting | (Bravo) | 1 | |
| 26 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 2 | ||
| 27 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 2 | ||
| 28 | 0085 | OEM: 525-85-97861 | INSULATOR | 1 | ||
| 29 | 0000 | 807057T | RELAY | 2 | [1] | |
| 30 | 0000 | 805223T | SENSOR | 1 |
PART NOTES:
[1] - Metric Fastener Change S/N 0L320000 And Up?
