4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Remote Oil Filter

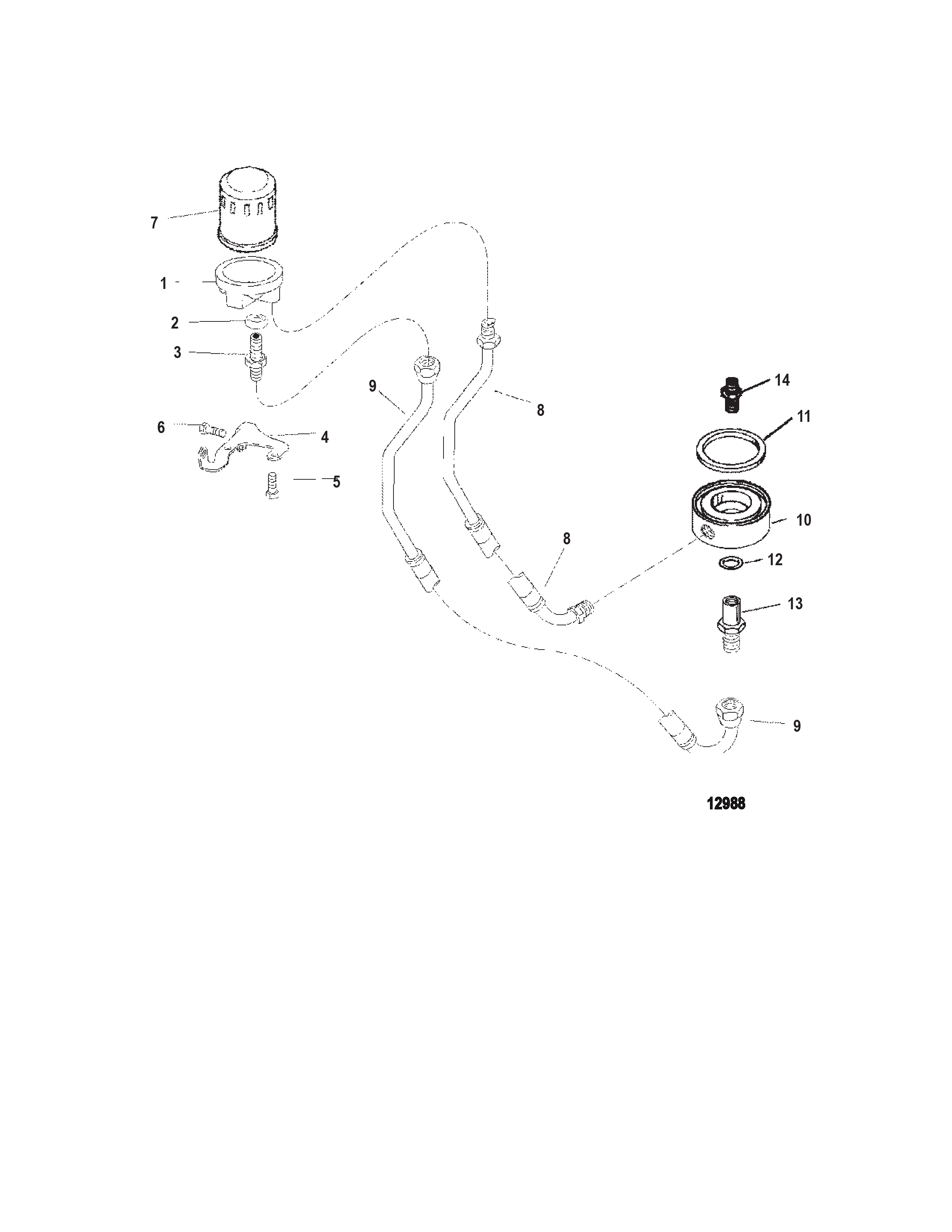

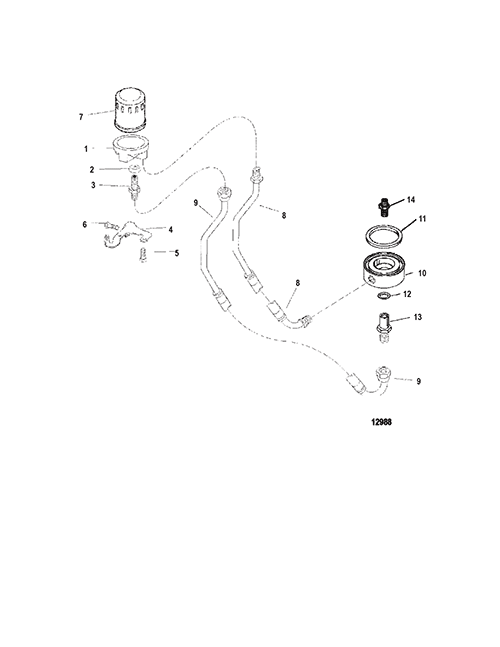

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-35-806329T | ADAPTER Oil Filter | 1 | ||
| 2 | 0026 | OEM: 525-26-42077 | SEAL | 1 | ||
| 3 | 0022 | OEM: 525-22-806328 | FITTING | 1 | ||
| 4 | 0000 | OEM: 525-807459T | BRACKET | 1 | ||
| 5 | 0010 | OEM: 525-10-98257 | SCREW (.312-18 x .500) | 2 | ||
| 6 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 7 | 0035 | 802885Q | FILTER Oil | 1 | [1] | |
| 8 | 0032 | OEM: 525-32-861233 | HOSE Oil | 1 | ||
| 9 | 0032 | OEM: 525-32-861234 | HOSE Oil | 1 | ||
| 10 | 0000 | OEM: 525-860091T | ADAPTER | 1 | ||
| 11 | 0027 | OEM: 525-27-16779 | GASKET | 1 | [2] | |
| 12 | 0026 | OEM: 525-26-42077 | SEAL | 1 | ||
| 13 | 0022 | OEM: 525-22-860303 | FITTING | 1 | ||
| 14 | 0000 | 11972 | ADAPTER | 1 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Alternate part numbers:
14957Service Part
802885QQS
802885TMPP
[2] - Component Of Engine/Powerhead Gasket Set 807756A96
