Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

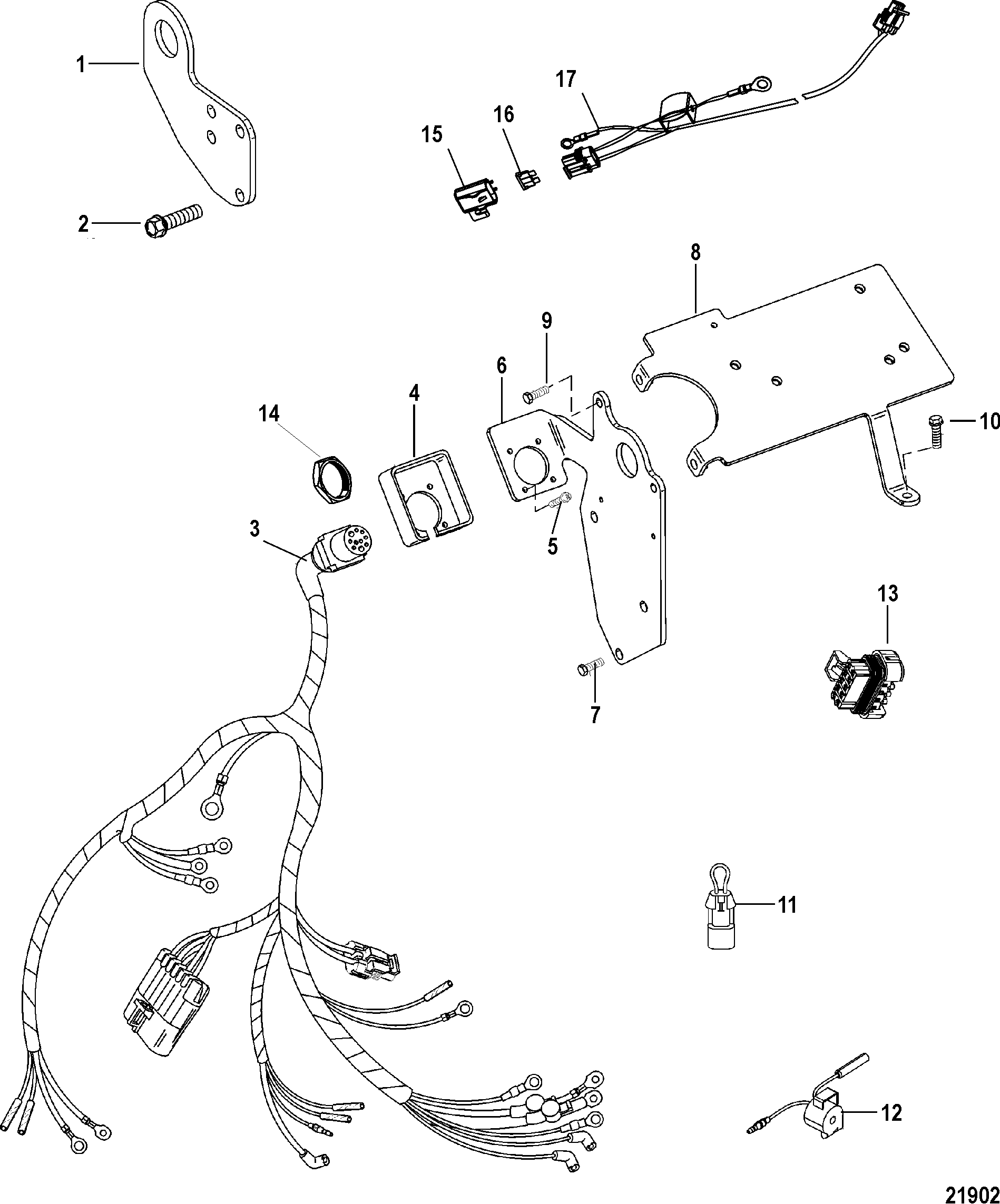

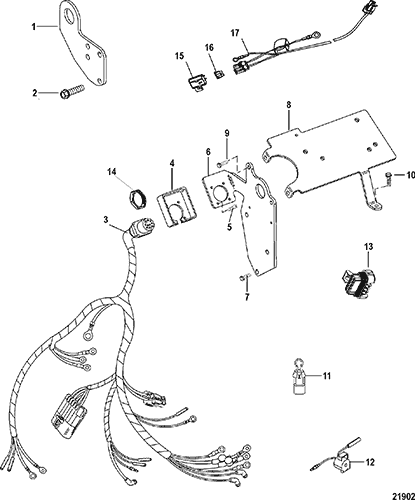

1 |
862346T |
|
|
|
|
BRACKET, Front Lifting Eye |
1 |
|
|
2 |
10-4010820 |
|
|
|
|
SCREW, (M10 x 20) Hex Flange - Stainless Steel |
2 |
|
|
3 |
84-862536T1 |
|
|
|
|
HARNESS ASSEMBLY, Wiring,(Engine) |
1 |
|
(Mechanical Throttle and Shift ) SN# 0M364615 & Below |
3 |
84-865457A01 |
|
|
|
|
HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging) |
1 |
84-863934T01 |
(Mechanical Throttle and Shift) SN# 0M364616 THRU 0M672040 |
3 |
84-865457A02 |
|
|
|
|
HARNESS ASSEMBLY, Wiring (Base-Integrated EFI and Charging) |
1 |
|
(Mechanical Throttle and Shift) SN# 0M672041 & Up |
3 |
84-865457A02 |
|
|
|
|
HARNESS ASSEMBLY, Wiring (H.O.-Integrated EFI and Charging) |
1 |
|
(Mechanical Throttle and Shift) SN# 0M667238 & Up |
3 |
84-863935T02 |
|
|
|
|
HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging) |
1 |
84-863935T01 |
This Part is No Longer Available (Digital Throttle/Shift) SN# 0M667237 & Below |
3 |
84-865458A01 |
|
|
|
|
HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging) |
1 |
|
(Digital Throttle and Shift) SN# 0M667238 & Up |
4 |
26079A2 |
|
|
|
|
PLATE KIT, Wire Harness Mount, Harness Retaining |
1 |
|
|
5 |
10-15001 |
|
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
6 |
862347T |
|
|
|
|
BRACKET, Lifting Eye, Rear |
1 |
|
|
7 |
10-4010820 |
|
|
|
|
SCREW, (M10 x 20) Hex Flange - Stainless Steel |
3 |
|
|
8 |
8629091 |
|
|
|
|
BRACKET, Shift |
1 |
|
|
9 |
10-4010725 |
|
|
|
|
SCREW, (M8 x 25) |
2 |
|
|
10 |
10-4010716 |
|
|
|
|
SCREW, (M8 x 16) |
1 |
|
|
11 |
805592A1 |
|
|
|
|
CONNECTOR ASSEMBLY (White Wire) |
1 |
|
SN# 0M364615 & Below |
11 |
830796A1 |
|
|
|
|
CONNECTOR ASSEMBLY (Black Wire) |
1 |
|
|
12 |
816492A15 |
|
|
|
|
ALARM KIT |
1 |
|
|
13 |
8M3000055 |
|
|
|
|
CAP, Weather Proof (10 Pin Transom Harness) |
1 |
891735 |
|
14 |
11-889664 |
|
|
|
|
NUT, (1.500-18) Black Nylon |
1 |
|
|
15 |
84-888416T04 |
|
|
|
|
HARNESS ASSEMBLY, DTS, Clean Power |
1 |
|
|
16 |
862646 |
|
|
|
|
FUSE, Tan - 5 Ampere |
1 |
|
|
17 |
828054 |
|
|
|
|
COVER, Fuse |
1 |
|
|
