496 Mag HO Model - Serial 0W310000 Thru 0W649999 - Shift Bracket, Mechanical Shift

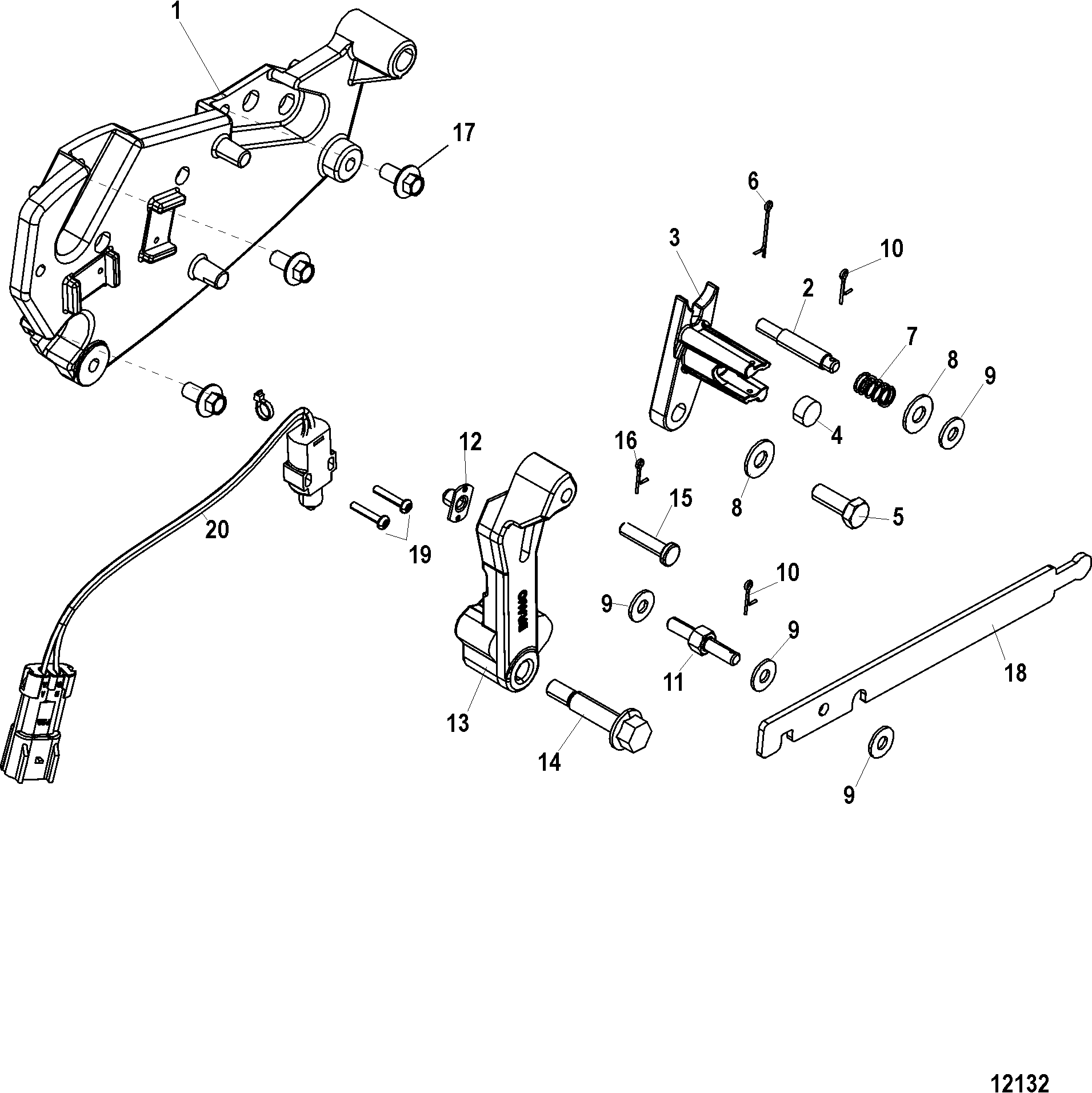

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | ||||||
| 2 | 16-865154A02 | STUD KIT, (.250-20/.250-28 x 2.120) (With Cotter pin) | 1 | ||||||
| 3 | 865434A02 | RETAINER KIT, Shift Cable (With Cotter pin) | 1 | ||||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 6 | 18-328571 | COTTER PIN, Cotter | 1 | ||||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 10 | 18-210711 | COTTER PIN | 2 | ||||||
| 11 | 16-865393A02 | STUD KIT, (.250-28 x 1.90) (With Cotter pin) | 1 | ||||||
| 12 | 11-63341 | TEE NUT | 1 | ||||||
| 13 | 863911A12 | LEVER ASSEMBLY, Shift | 1 | ||||||
| 14 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 15 | 17-68402 | PIN, (.250 x 1.13), Clevis | 1 | ||||||
| 16 | 18-210711 | COTTER PIN, Cotter | 1 | ||||||
| 17 | 10-4010716 | SCREW, (M8 x 16) | 3 | ||||||
| 18 | 91-12427 | TOOL, Shift Adjust, Shift Adjust | 1 | ||||||
| 19 | 10-865147 | SCREW, (#6-32 x .750) Stainless Steel | 2 | ||||||
| 20 | 87-808009T11 | SWITCH ASSEMBLY | 1 |
