502 EFI (Gen 5) GM V-8 1993-1995 - Serial 0D840650 Thru 0F802599 - Alternator (Prestolite)

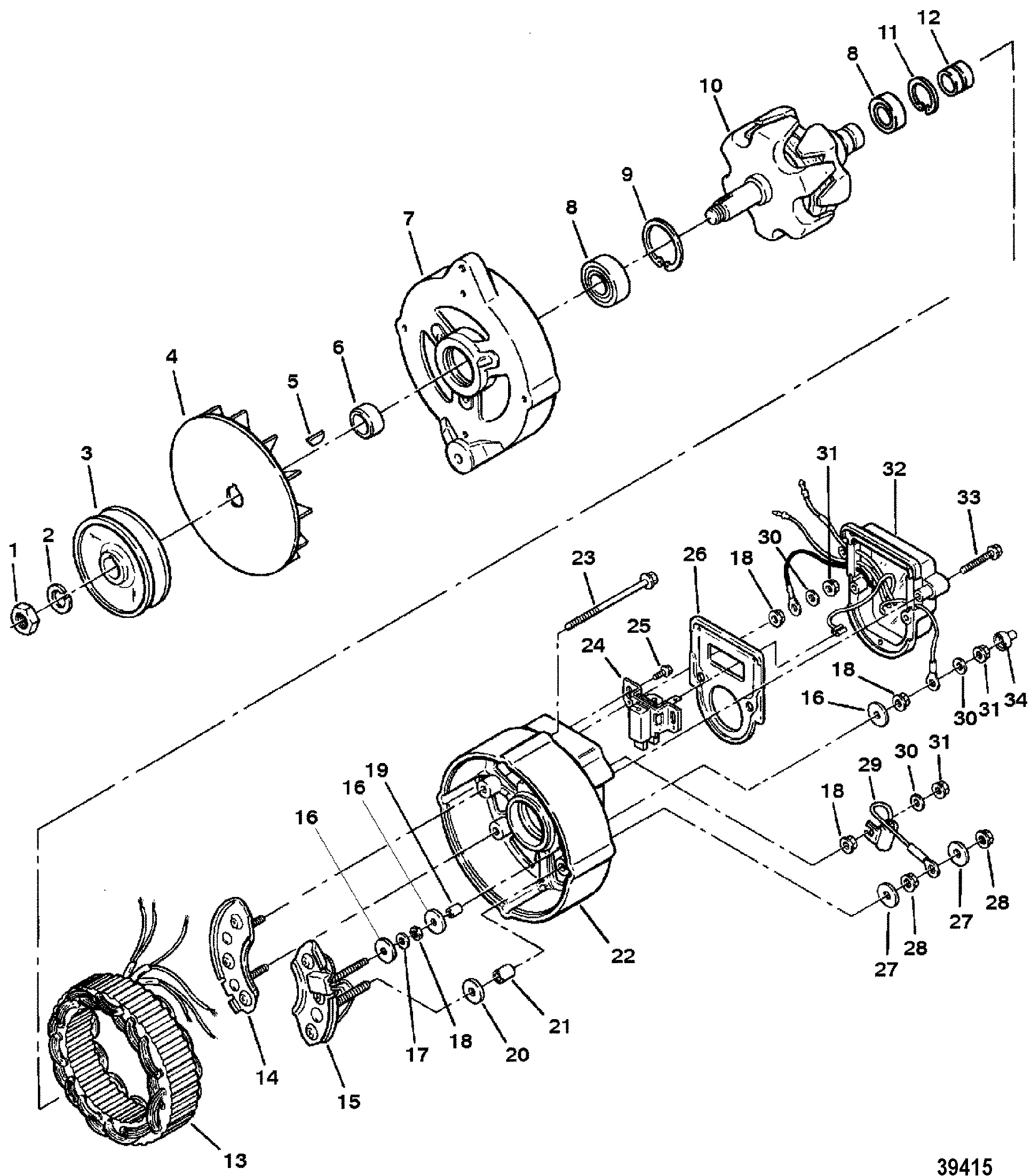

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 805884T



ALTERNATOR 1 805447T
1 390-7027



NUT 1
This Part is No Longer Available
2 13-808542



LOCKWASHER 1
This Part is No Longer Available
3 808530



PULLEY 1
This Part is No Longer Available
4 390-7004



FAN 1

5 390-7034



KEY 1
This Part is No Longer Available
6 813969



SPACER 1
This Part is No Longer Available
7 808527



HOUSING 1
This Part is No Longer Available
8 390-7005



BEARING, Ball 2
This Part is No Longer Available
9 390-7006



RING 1
This Part is No Longer Available (FRONT)
10 808528



ROTOR 1
This Part is No Longer Available
11 390-7007



RETAINER 1
This Part is No Longer Available (REAR)
12 390-7014



SLIP RING 1
This Part is No Longer Available
13 808529



STATOR 1
This Part is No Longer Available
14 390-7009



DIODE 1
This Part is No Longer Available (NEGATIVE)
15 808531



DIODE 1
This Part is No Longer Available (POSITIVE)
16 390-7024



WASHER 2
This Part is No Longer Available
17 12-813984



WASHER 1
This Part is No Longer Available
18 11-808544



NUT 4
This Part is No Longer Available
19 390-7020



SLEEVE 1
This Part is No Longer Available
20 390-7023



INSULATOR 2
This Part is No Longer Available
21 808536



SLEEVE 1
This Part is No Longer Available
22 390-7003



HOUSING 1
This Part is No Longer Available
23 10-808535



BOLT 4
This Part is No Longer Available
24 808532



BRUSH ASSEMBLY 1
This Part is No Longer Available
25 10-808540



SCREW, (#8-32 x .500) 2
This Part is No Longer Available
26 390-7013



GASKET 1
This Part is No Longer Available
27 12-808537



WASHER 2
This Part is No Longer Available
28 11-808539



NUT, (.250-20) 2
This Part is No Longer Available
29 813972



CAPACITOR 1
This Part is No Longer Available
30 13-26996



LOCKWASHER, (#10) Stainless Steel 3

31 11-808538



NUT 3
This Part is No Longer Available
32 808534T



REGULATOR, Voltage 1 808534
33 10-808541



SCREW, (#8-32 x 1.250) 4
This Part is No Longer Available
34 808543



CAP 1
This Part is No Longer Available
- 808533T



DIODE FIELD 1 808533 This Part is No Longer Available
