| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

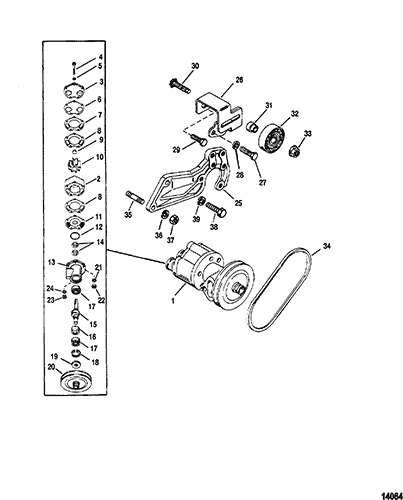

| 1 |
46-807151A8 |
|
|
|
|
PUMP ASSEMBLY, Sea Water - Complete |
1 |
46-72774A69 |
|
| 2 |
46-72774A40 |
|
|
|
|
BODY ASSEMBLY, Sea Water - Complete |
1 |
|
This Part is No Longer Available |
| 3 |
87631A4 |
|
|
|
|
COVER KIT |
1 |
|
|
| 4 |
10-99347 |
|
|
|
|
SCREW, (.312-18 x 3.75) |
5 |
|
|
| 5 |
12-20084 |
|
|
700-21664 |
|
WASHER, (.328 x .562 x .062) |
5 |
|
|
| 6 |
27-8052151 |
|
|
|
|
GASKET |
1 |
|
|
| 7 |
94916 |
|
|
700-12502 |
|
WEAR PLATE |
1 |
|
|
| 8 |
27-94914 |
|
|
700-32730 |
|
GASKET |
2 |
|
|
| 9 |
19-59504 |
|
|
700-12826 |
|
PLUG |
1 |
|
|
| 10 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER |
1 |
47-593621 |
|
| 11 |
94576 |
|
|
700-12501 |
|
WEAR PLATE |
1 |
|
|
| 12 |
25-94288 |
|
|
|
|
QUAD RING |
1 |
|
|
| 13 |
818367A1 |
|
|
|
|
HOUSING ASSEMBLY |
1 |
|
|
| 14 |
26-90562 |
|
676-9-76107 |
700-85080 |
|
SEAL, (1.254 x .312) |
2 |
|
|
| 15 |
818366A1 |
|
|
|
|
SHAFT KIT |
1 |
|
|
| 16 |
818745A1 |
|
|
|
|
RING KIT |
1 |
|
|
| 17 |
30-72961 |
|
676-9-43220 |
|
|
BEARING, Ball |
2 |
|
|
| 18 |
53-23720 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 19 |
26-806930 |
|
|
|
|
SEAL |
1 |
|
|
| 20 |
818365T |
|
|
|
|
PULLEY |
1 |
|
|
| 21 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 22 |
11-21908 |
|
|
|
|
NUT, (.312-18) Cad Plated |
1 |
|
|
| 23 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) |
1 |
10-79953A2 |
|
| 24 |
12-191833 |
|
|
|
525-12-191833 |
WASHER, Fiber |
1 |
12-19183 |
|
| 25 |
818368T1 |
|
|
|
|
BRACKET |
1 |
|
|
| 26 |
818379T |
|
|
|
|
BRACKET |
1 |
|
|
| 27 |
10-76926 |
|
|
|
|
SCREW, (.375-16 x .875) |
2 |
|
|
| 28 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER, (.375) |
2 |
|
|
| 29 |
10-17965 |
|
|
|
|
SCREW, (.437-14 x .70) |
1 |
|
|
| 30 |
43-8183812 |
|
|
|
|
PINION STUD, (.437-20) Stainless Steel |
1 |
|
|
| 31 |
865193 |
|
|
|
|
BUSHING |
1 |
818380 |
|
| 32 |
8M6500024 |
|
|
|
|
PULLEY |
1 |
818382 |
|
| 33 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
1 |
11-817618 |
|
| 34 |
57-69143Q |
|
|
|
|
V BELT |
1 |
57-69143T |
|
| 35 |
16-64281 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.880) |
1 |
|
This Part is No Longer Available |
| 36 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER, (.375) |
1 |
|
|
| 37 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
1 |
|
|
| 35 |
16-806591 |
|
|
|
|
STUD (7/16-14) |
1 |
|
|
| 36 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
1 |
|
|
| 37 |
11-22024 |
|
|
|
|
NUT, (.437-14) |
1 |
|
|
| 38 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
1 |
|
|
| 39 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
1 |
|
|
