502 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L017000 Thru 0L085432 - Fuel Rail Assembly

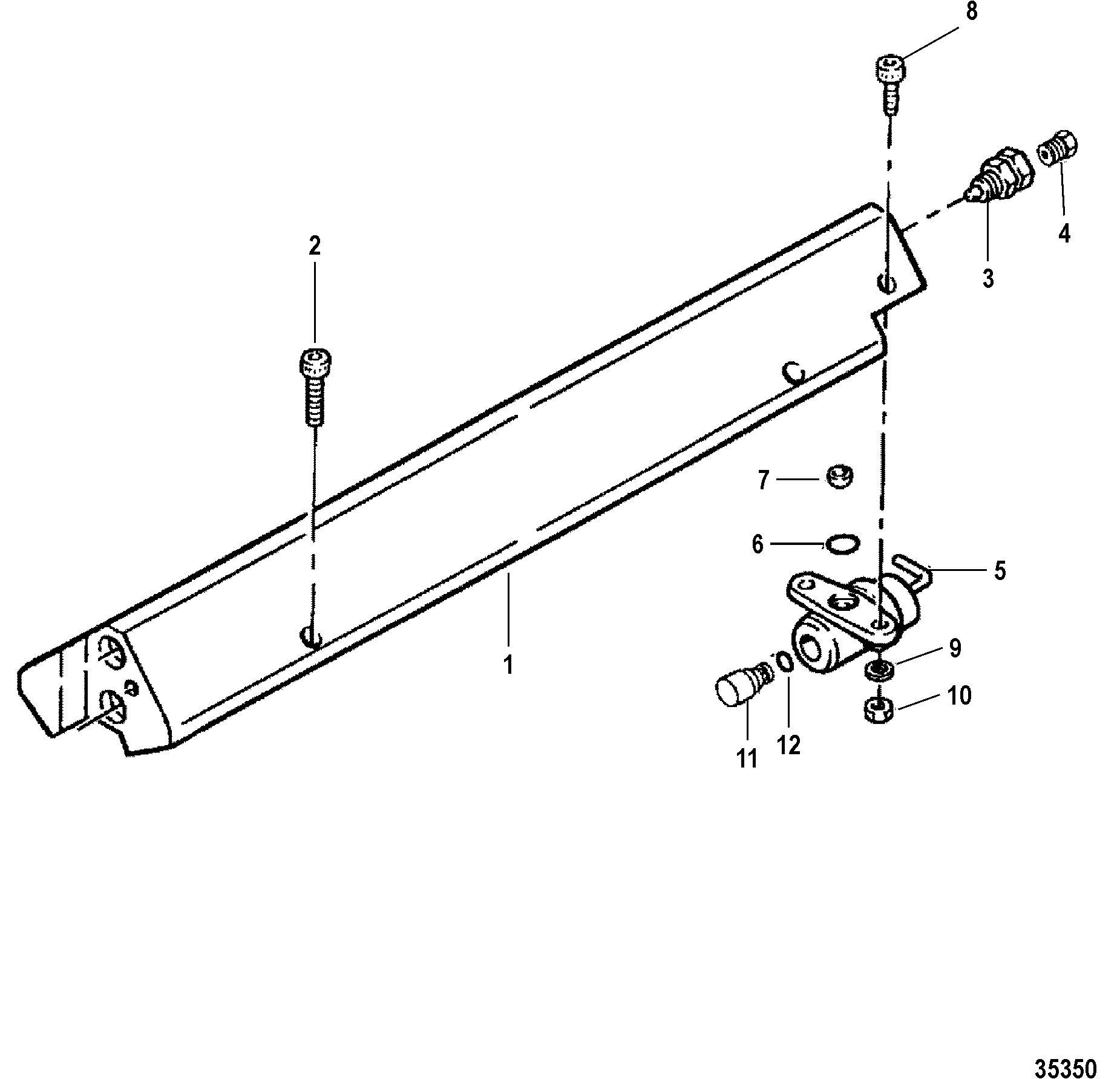

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block, Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Fuel Rail Assembly
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805405T | FUEL RAIL | 1 | ||||||
| 2 | 10-805698 | SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.) | 4 | ||||||
| 3 | 22-805408 | VALVE, Rail Pressure Service | 1 | ||||||
| 4 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 5 | 805227A1 | REGULATOR ASSEMBLY, Fuel Pressure | 1 | ||||||
| 6 | 25-805531 | O-RING, (.476 x .075) | 1 | 3,4 | |||||
| 7 | 35-805406 | FILTER | 1 | ||||||
| 8 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 9 | 12-89302 | 602-98-262-49 | WASHER, (.203 x .406 x .040) | 2 | |||||
| 10 | 11-805562 | NUT, (#10-24) | 2 | ||||||
| 11 | 22-860348A2 | PLUG ASSEMBLY | 1 | ||||||
| 12 | 25-805553 | O-RING | 1 | 3,4 | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
