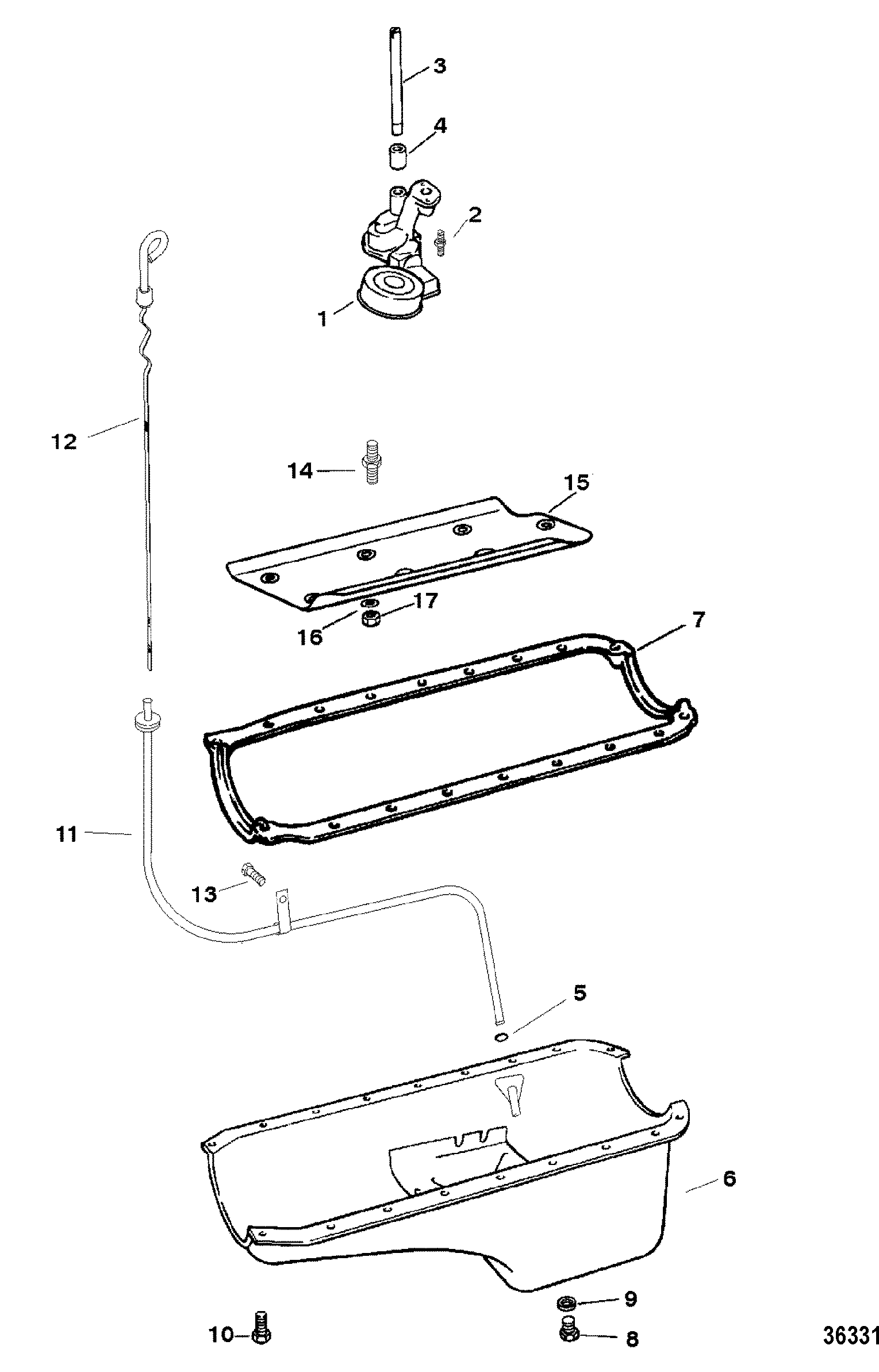

502 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L017000 Thru 0L085432 - Oil Pan And Oil Pump
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block, Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Fuel Rail Assembly
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
1 | 827643 | PUMP ASSEMBLY, Oil | 1 | ||||||
2 | 16-845599 | STUD | 1 | 16-49108 | |||||
3 | 14761 | SHAFT AND RETAINER | 1 | ||||||
4 | 23-36183 | RETAINER | 1 | ||||||
5 | 25-62704 | 676-9-43631 | 700-81090 | 602-95-260-50 | O-RING, (.362 x .103) | 1 | 3,4 | ||
6 | 845668T | PAN ASSEMBLY, Oil | 1 | 850458 | |||||
7 | 27-845628 | 676-9-61508 | GASKET | 1 | 27-811566 | 3,4 | |||
8 | 10-809911001 | SCREW, Oil Drain (M12 x 1.75) | 1 | 10-809911 | |||||
9 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 1 | 3,4 | |||
10 | 10-808707 | SCREW, (.312-18 x .625) | 20 | ||||||
11 | 818631A6 | TUBE ASSEMBLY, Dipstick | 1 | ||||||
12 | 861942T9 | DIPSTICK, Oil Level | 1 | ||||||
13 | 10-35366 | SCREW, (.250-20 x .563) | 1 | ||||||
14 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | ||||||
15 | 843945T | BAFFLE, Oil Deflector | 1 | 845601T | |||||
16 | 12-49112 | WASHER | 5 | This Part is No Longer Available | |||||
17 | 11-845602 | NUT, (.375-16) | 5 | 11-850091 | |||||
- | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
- | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
