502 Mag MPI (Gen 6) GM V-8 1996 - Serial 0F802600 Thru 0K999999 - Engine Mounting

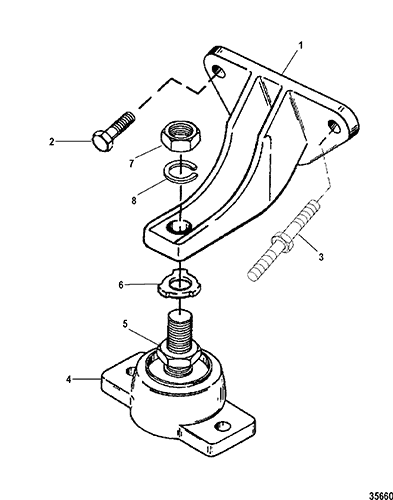

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET 2
2 10-68101



SCREW, (.375-16 x 1.375) 2

3 16-805357



STUD, (.375-16 x 2.130) 4
4 814263A1



BASE ASSEMBLY 2

5 11-816331



NUT, (.750-16) 2
6 14-12657



TAB WASHER 2
7 11-859126



NUT, (.750-16) 2
8 13-68102



LOCKWASHER, (.750) 2
