502 Mag MPI (Gen 6) GM V-8 1996 - Serial 0F802600 Thru 0K999999 - Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up

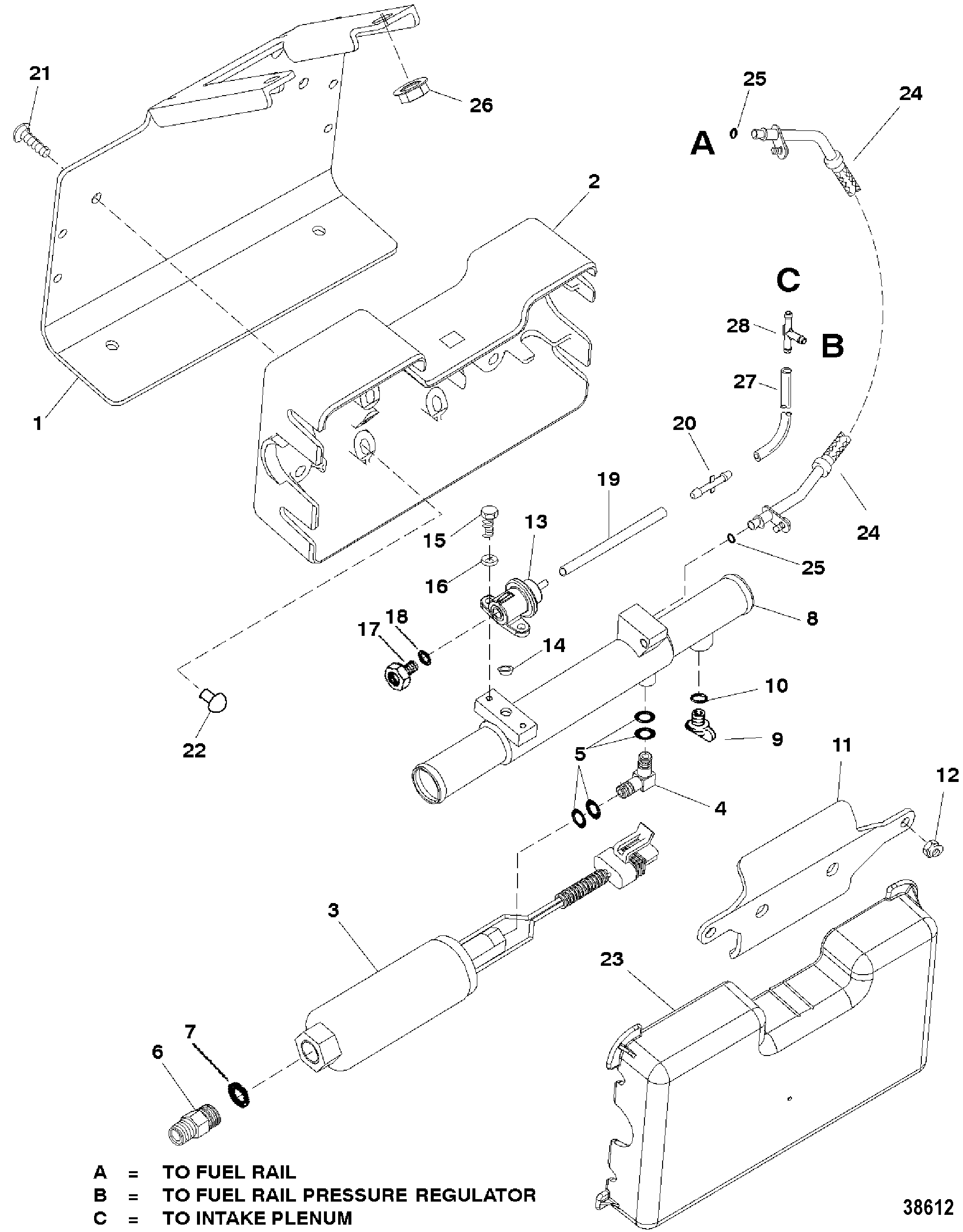

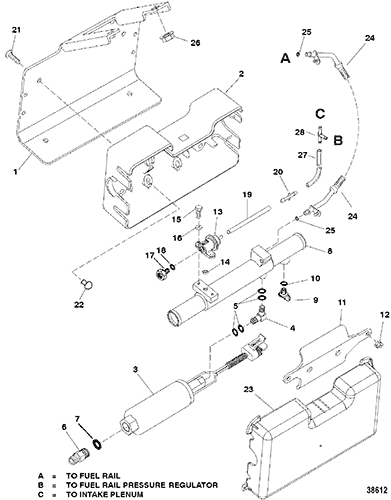

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter (Fuel Cooled System) 0K147350 and Up
- Fuel Pump And Filter (VST Fuel System) 0K147349 and Below
- Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump (Fuel Cooled System) (0K147350 and Up)
- Sea Water Pump (VST Fuel System) (0K147349 and Below)
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Fuel Cooled System) 0K147349 and Below
- Thermostat Housing (VST Fuel System) 0K147349 and Below
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807951T | BRACKET, Fuel Cooler | 1 | ||||||
| 2 | 807685T | INSULATOR, Base | 1 | ||||||
| 3 | 861156A1 | PUMP ASSEMBLY, Fuel (Electric) | 1 | 807949A1 | This Part is NLA from Mercruiser | ||||
| 4 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 4 | 1,2 | |||||
| 6 | 22-808001A1 | FITTING ASSEMBLY | 1 | ||||||
| 7 | 25-805062 | O-RING, (.530 x .082) | 1 | 1,2 | |||||
| 8 | 807950A1 | COOLER, Fuel | 1 | ||||||
| 9 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue, Drain | 1 | 22-806608A1 | |||||
| 10 | 25-32509 | QUAD RING | 1 | 25-806609 | 1,2 | ||||
| 11 | 807979T | BRACKET | 1 | ||||||
| 12 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 13 | 860349A1 | REGULATOR ASSEMBLY, Fuel Pressure | 1 | ||||||
| 14 | 35-805406 | FILTER | 1 | ||||||
| 15 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 16 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 17 | 22-808002A1 | FITTING KIT | 1 | ||||||
| 18 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | ||||||
| 19 | 32-8M0063567 | HOSE | 1 | 32-80617370 | |||||
| 20 | 22-860273 | CONNECTOR, Hose | 1 | ||||||
| 21 | 10-808005 | SCREW, (.250-20 x .500) | 4 | ||||||
| 22 | 269011 | BUMPER, Rubber | 8 | ||||||
| 23 | 807930T01 | INSULATOR, Cover | 1 | 807930T | |||||
| 24 | 32-861569A1 | LINE ASSEMBLY, Fuel, Fuel Cooler to Fuel Rail | 1 | 32-860350A2 | |||||
| 25 | 25-805970 | O-RING | 2 | ||||||
| 26 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 27 | 32-8M0063567 | HOSE | 1 | 32-80617377 | |||||
| 28 | 22-806689 | FITTING, Tee | 1 |
